Interior Lamps: MKZ

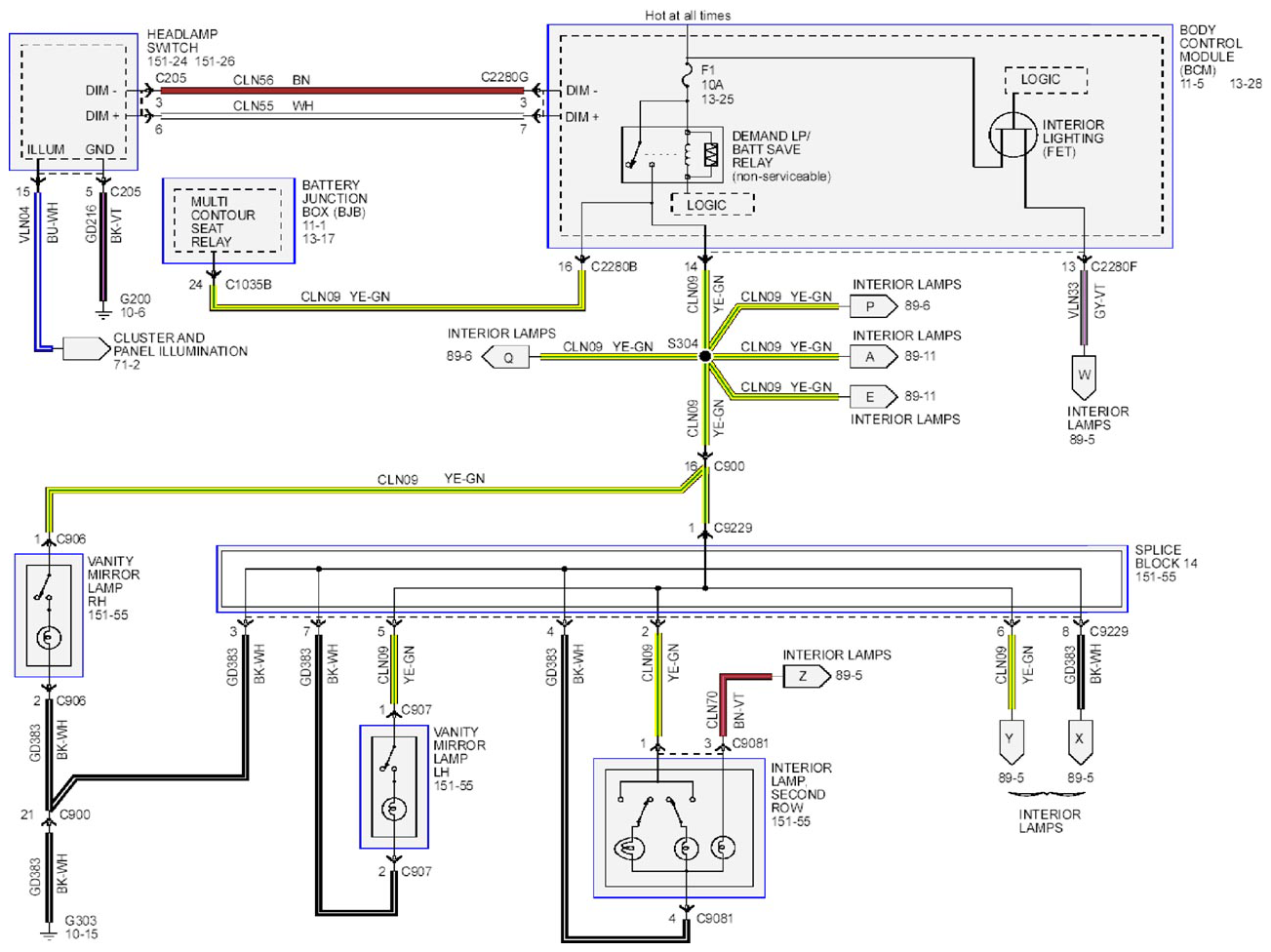

Fig 1: Interior Lamps - MKZ - Wiring Diagram (1 Of 4)
G09264836Courtesy of FORD MOTOR CO.

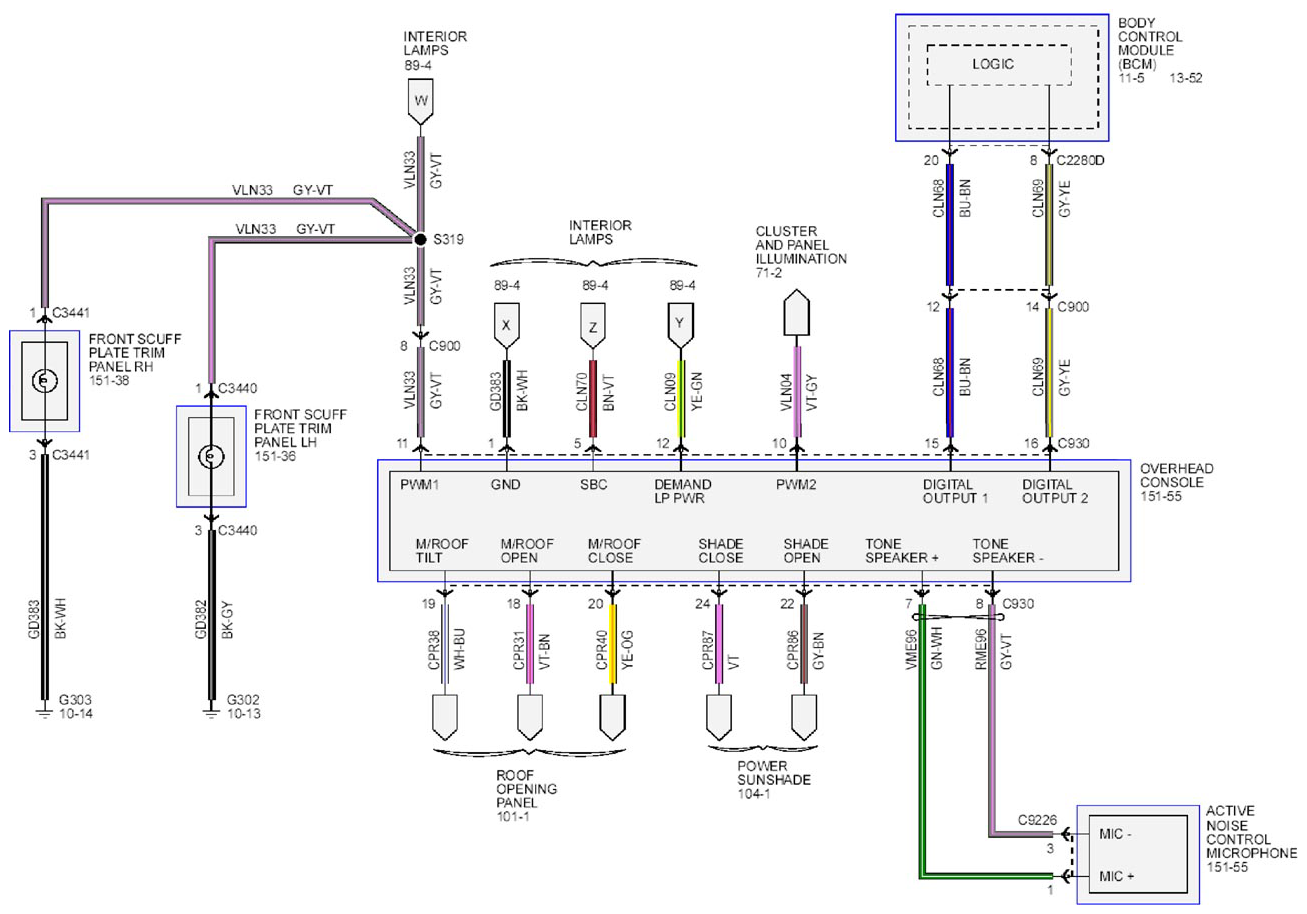

Fig 2: Interior Lamps - MKZ - Wiring Diagram (2 Of 4)
G09264837Courtesy of FORD MOTOR CO.

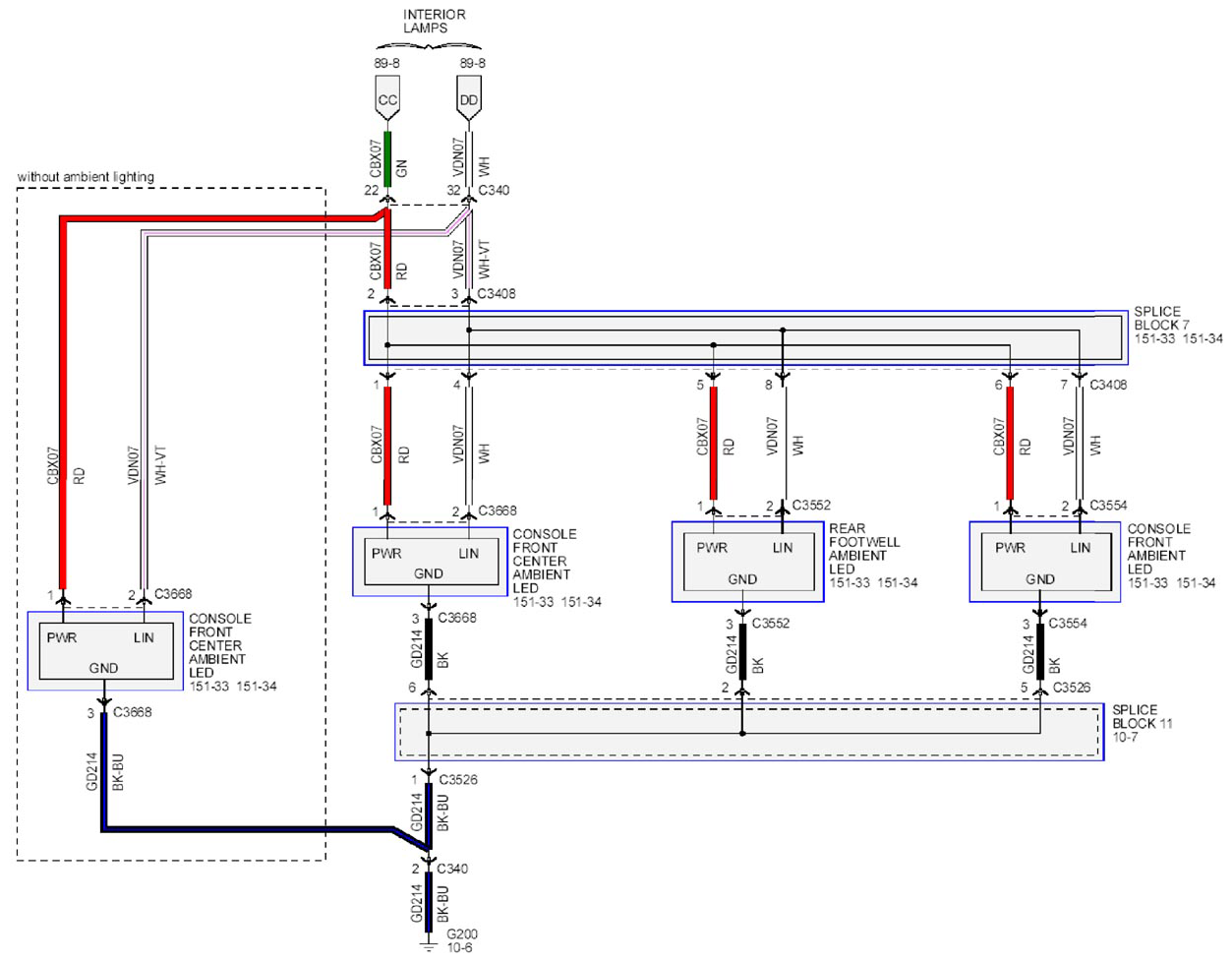

Fig 3: Interior Lamps - MKZ - Wiring Diagram (3 Of 4)
G09264839Courtesy of FORD MOTOR CO.

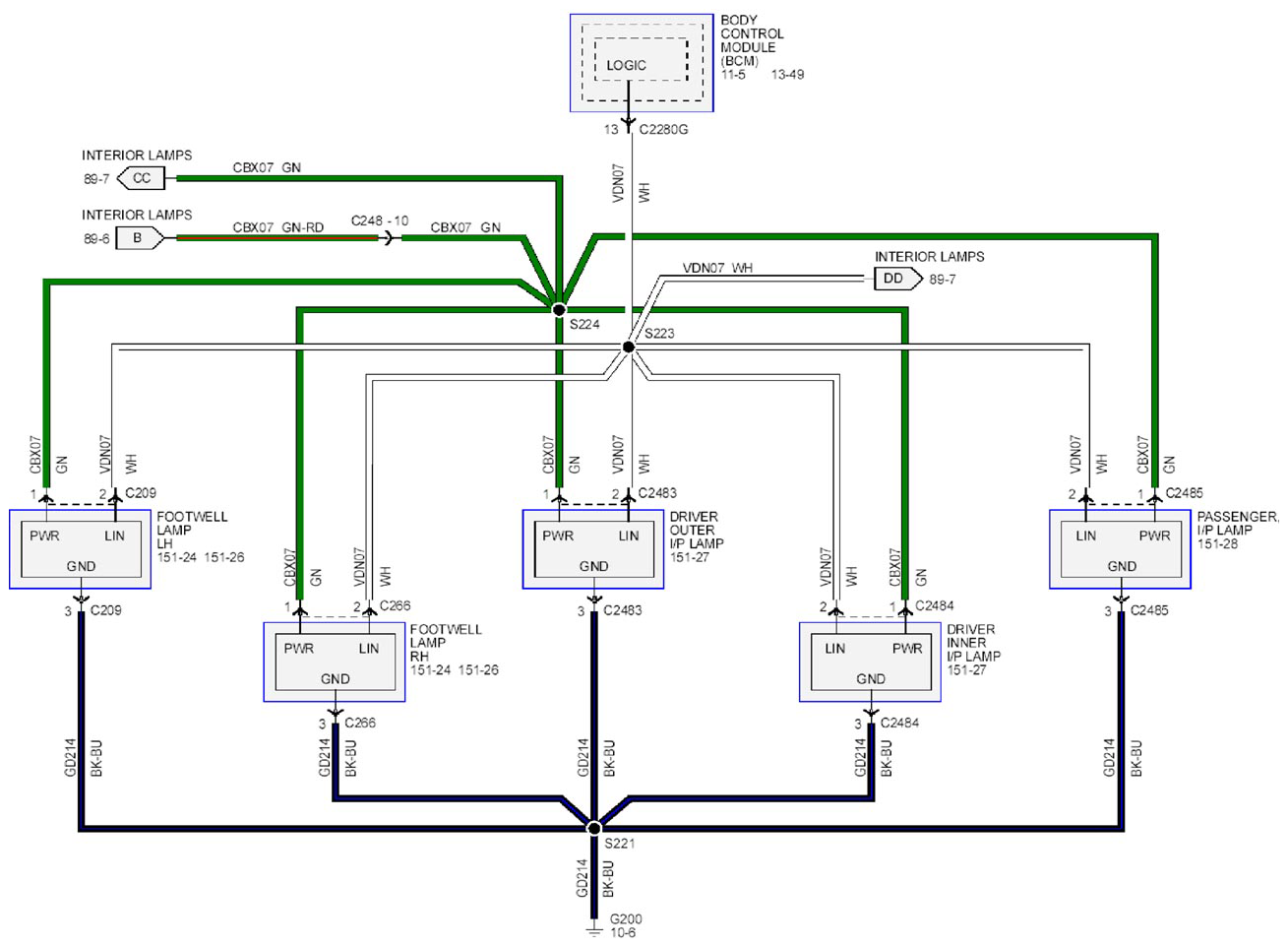

Fig 4: Interior Lamps - MKZ - Wiring Diagram (4 Of 4)
G09264840Courtesy of FORD MOTOR CO.
