Instrument Cluster: Notes

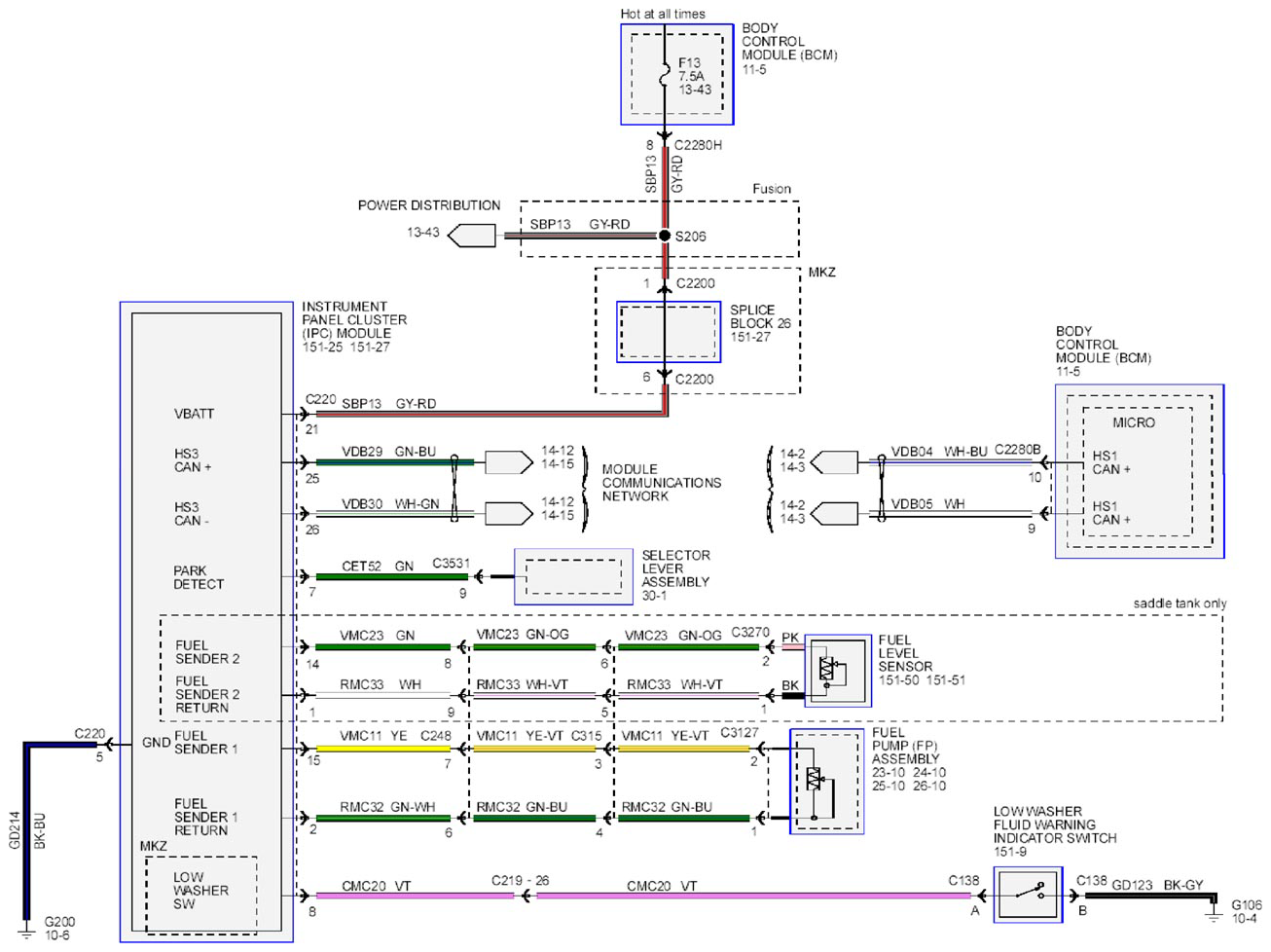

Fig 1: Instrument Cluster - Wiring Diagram (1 Of 3)
G09264815Courtesy of FORD MOTOR CO.

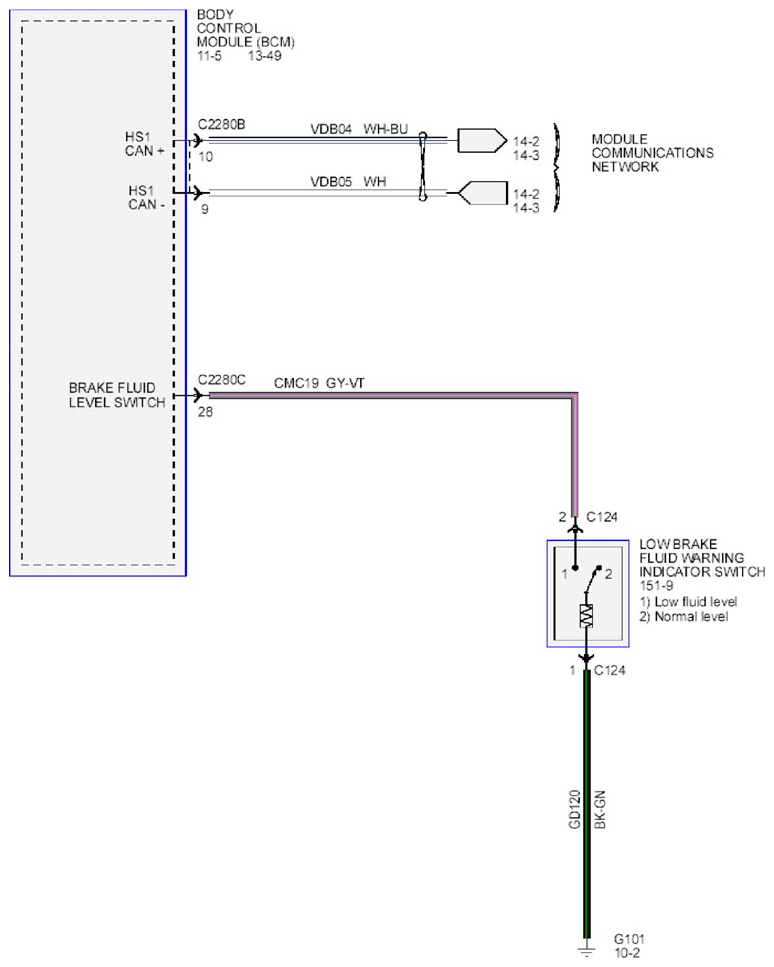

Fig 2: Instrument Cluster - Wiring Diagram (2 Of 3)
G09264816Courtesy of FORD MOTOR CO.

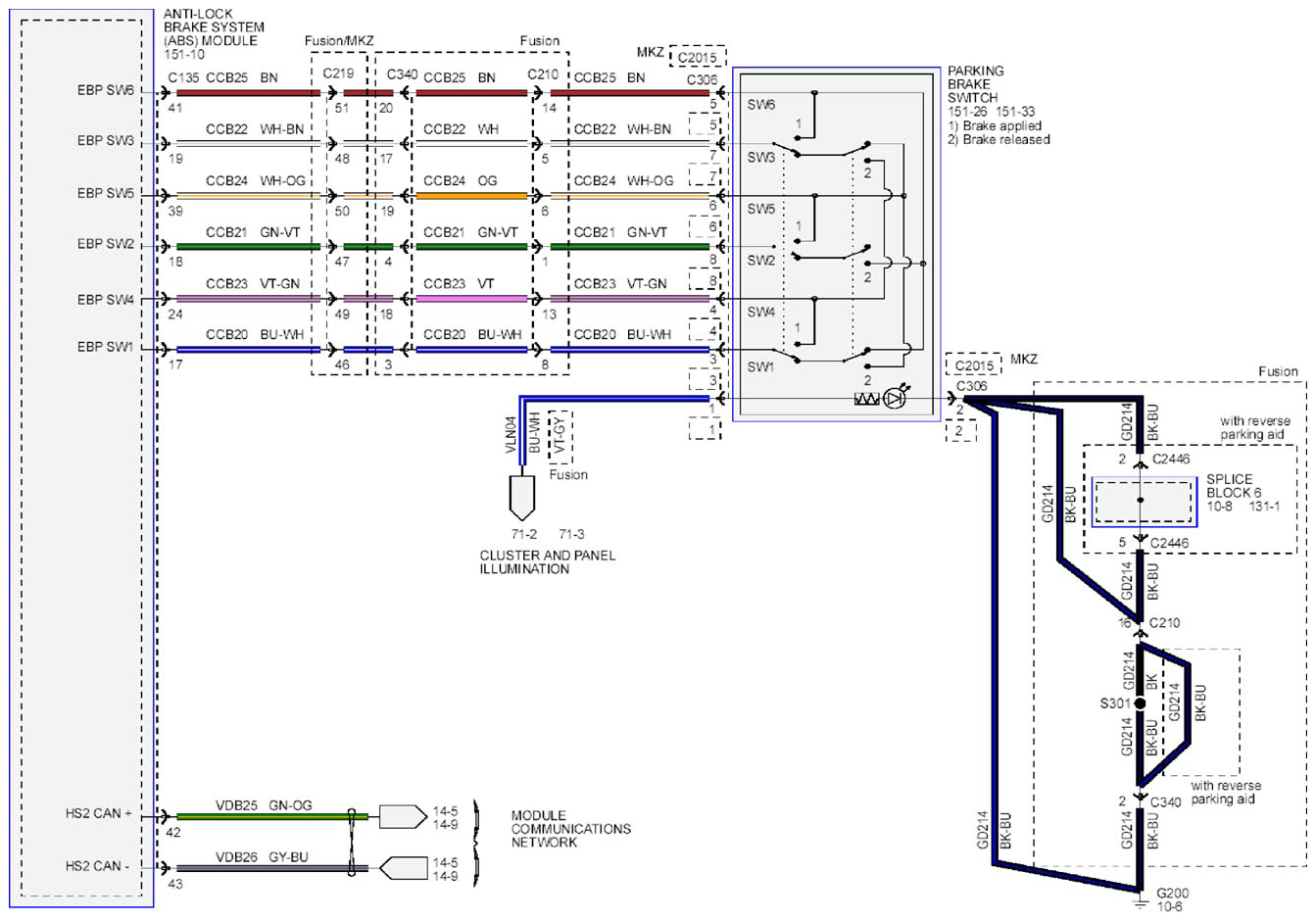

Fig 3: Instrument Cluster - Wiring Diagram (3 Of 3)
G09264817Courtesy of FORD MOTOR CO.
