Horn/Cigar Lighter: Notes

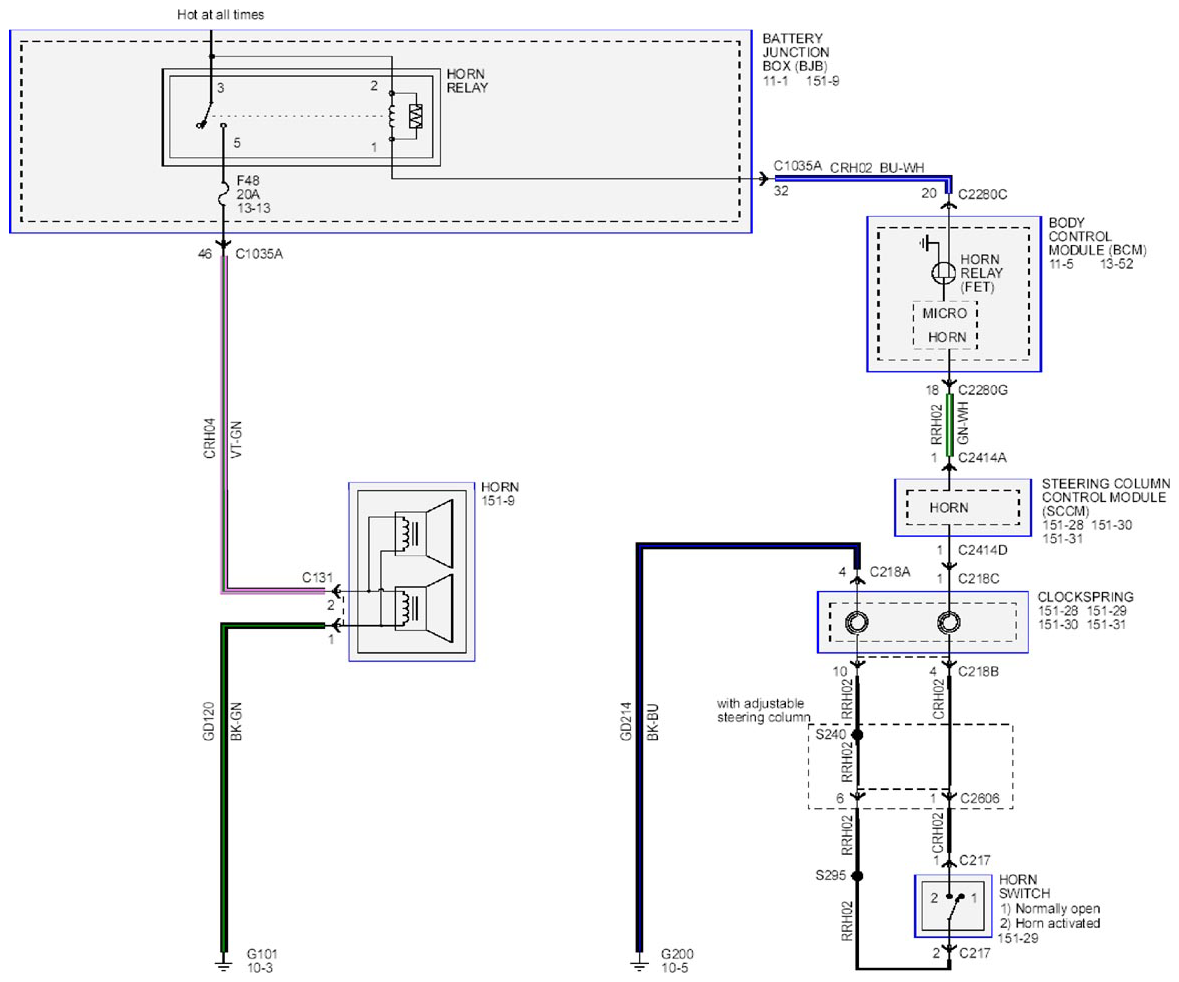

Fig 1: Horn Cigar Lighter - Wiring Diagram (1 Of 3)
G09264786Courtesy of FORD MOTOR CO.

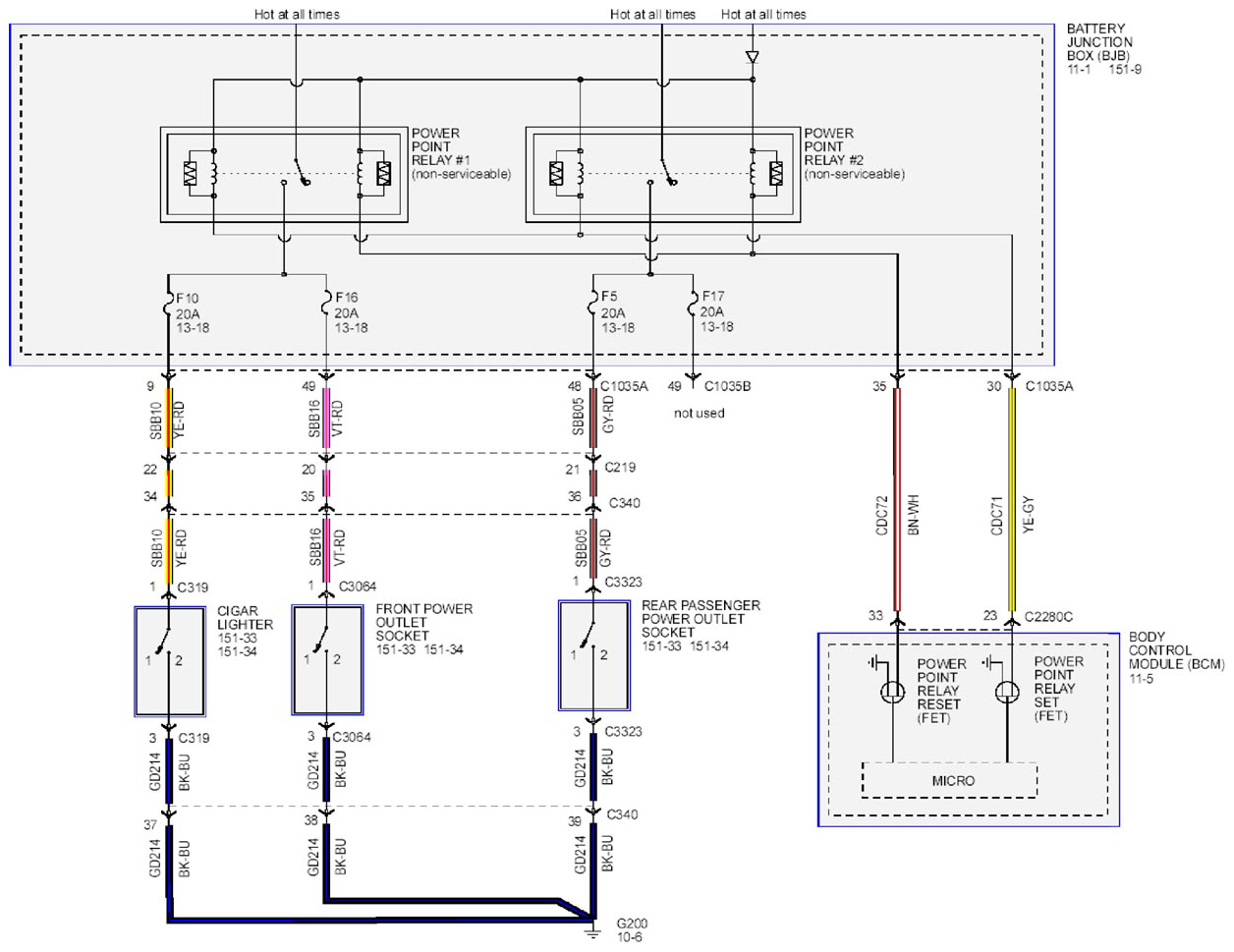

Fig 2: Horn Cigar Lighter - Wiring Diagram (2 Of 3)
G09264787Courtesy of FORD MOTOR CO.

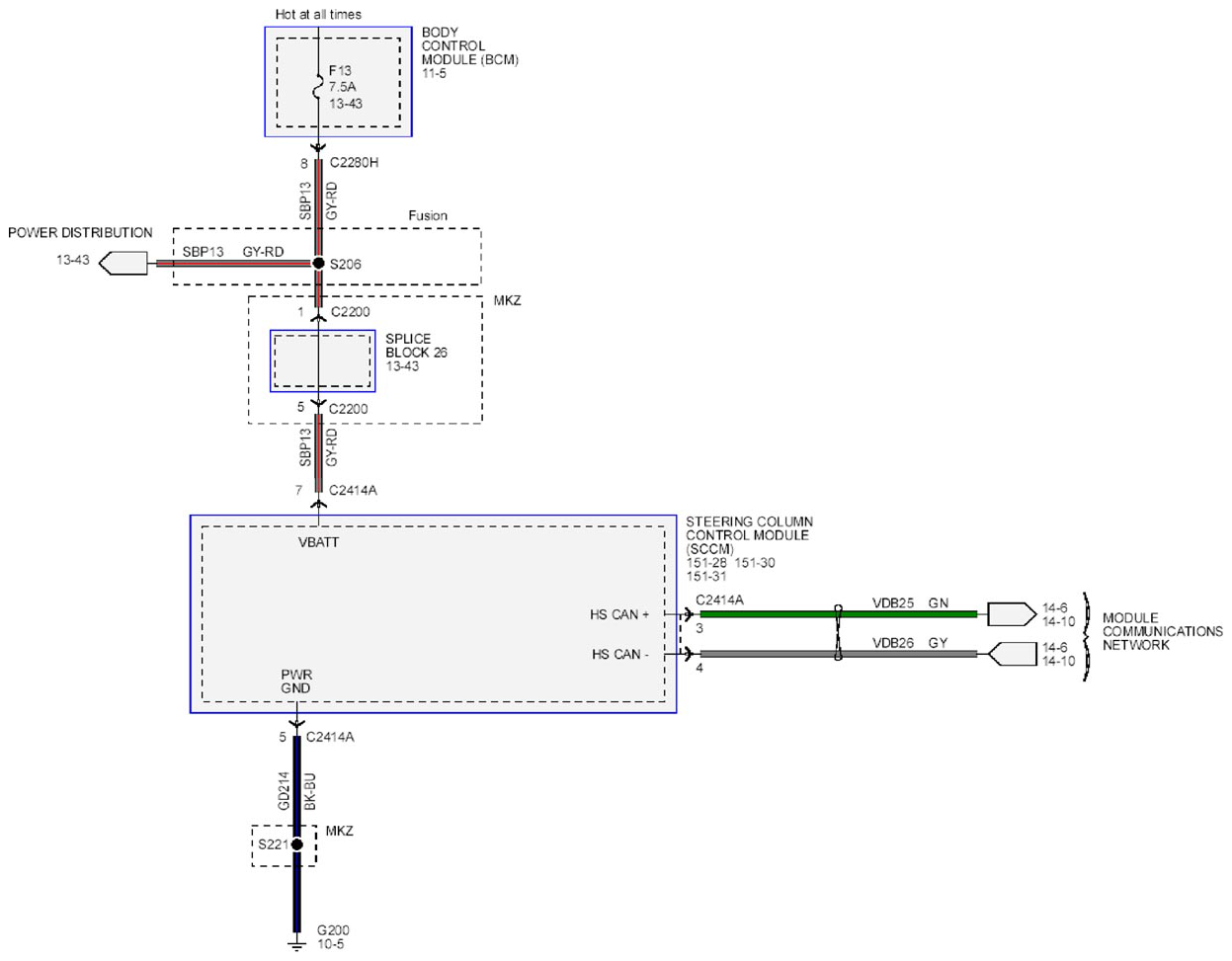

Fig 3: Horn Cigar Lighter - Wiring Diagram (3 Of 3)
G09264788Courtesy of FORD MOTOR CO.
