OEM Wiring Diagrams -- (Except Hybrid): Headlamps/AUTOLAMPS: Notes

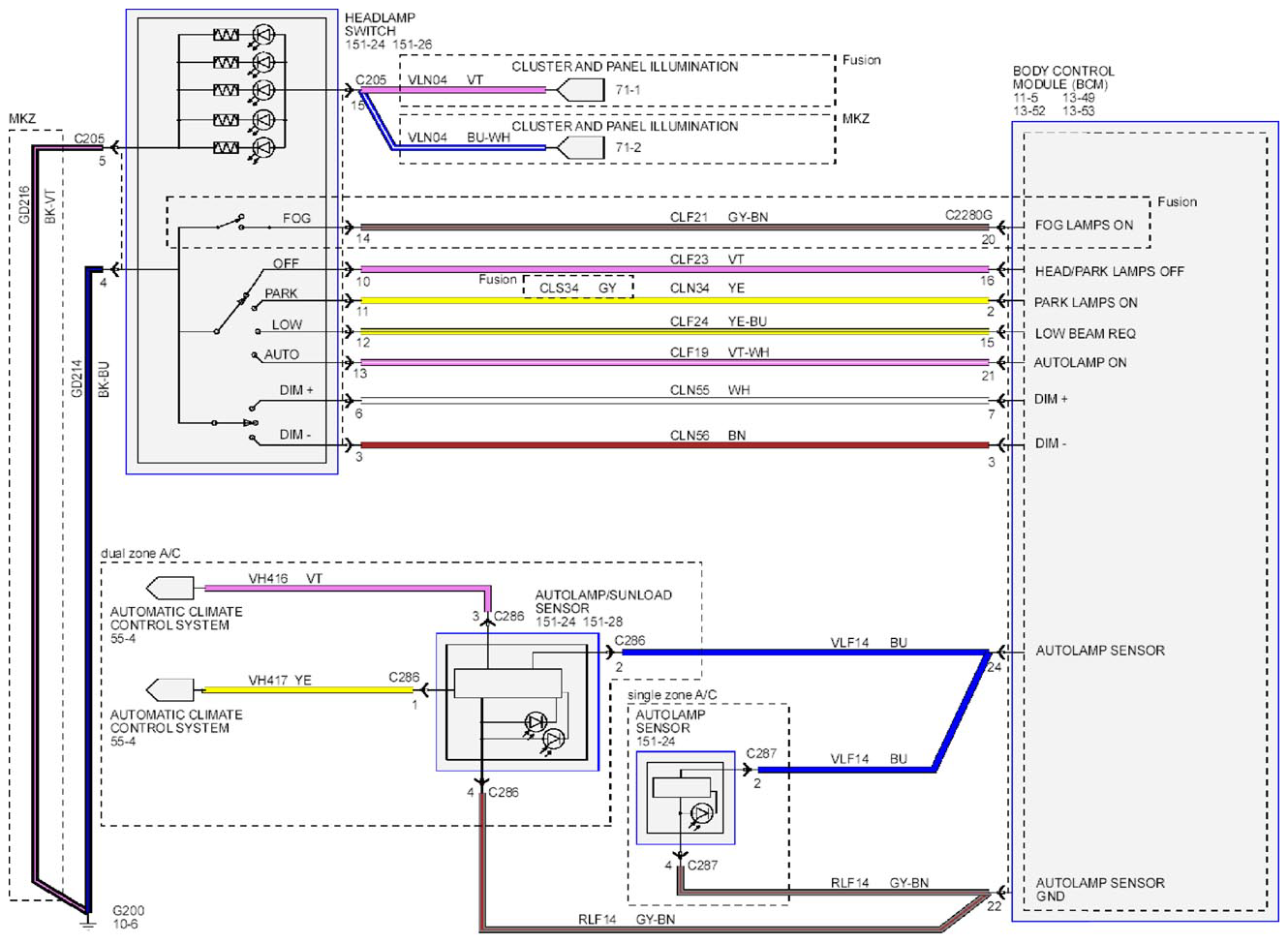

Fig 1: Headlamps/Autolamps - Wiring Diagram

G09264827

Courtesy of FORD MOTOR CO.
