OEM Wiring Diagrams -- (Except Hybrid): Headlamps/AUTOLAMPS: Led

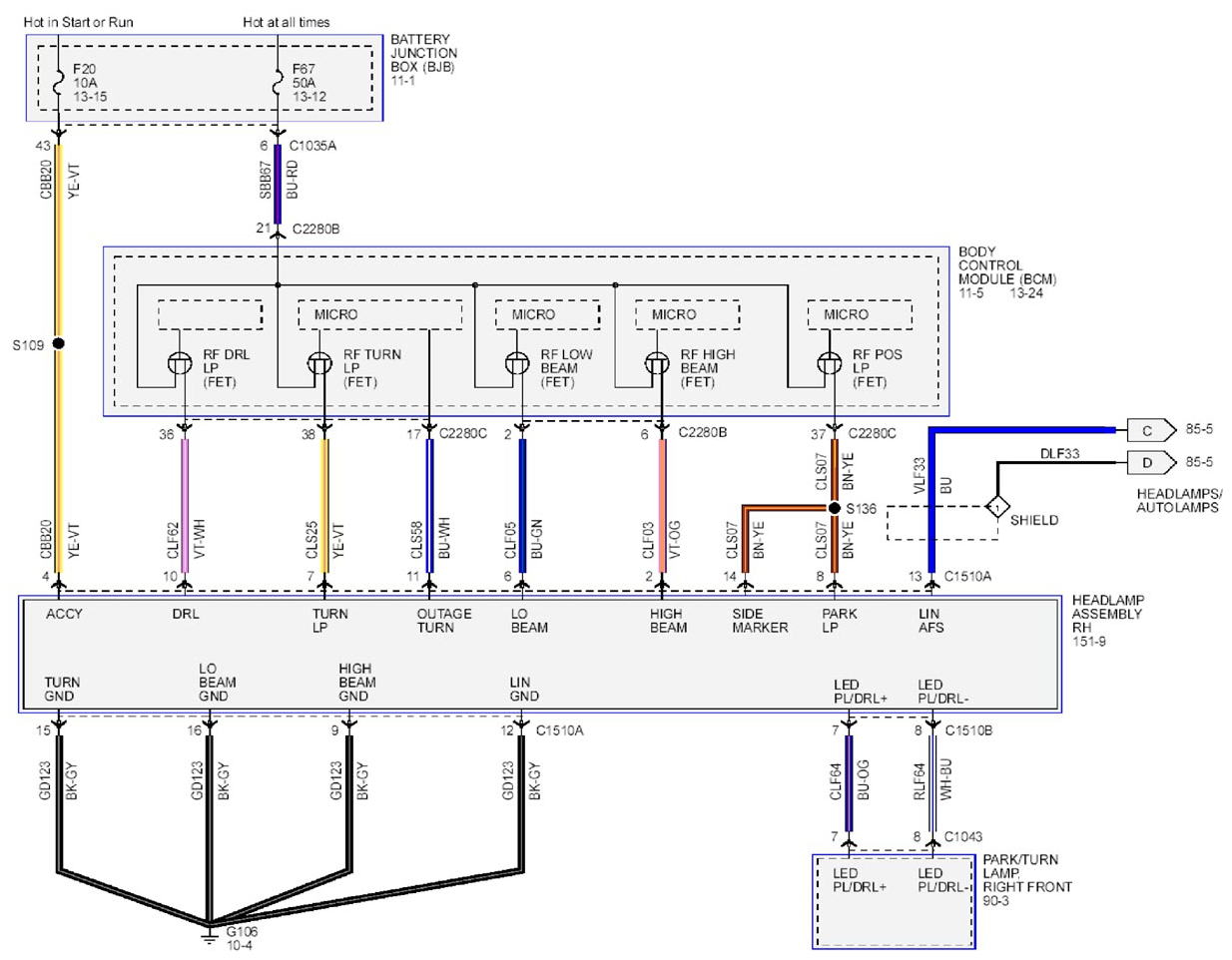

Fig 1: LED - Wiring Diagram (1 Of 3)

Courtesy of FORD MOTOR CO.

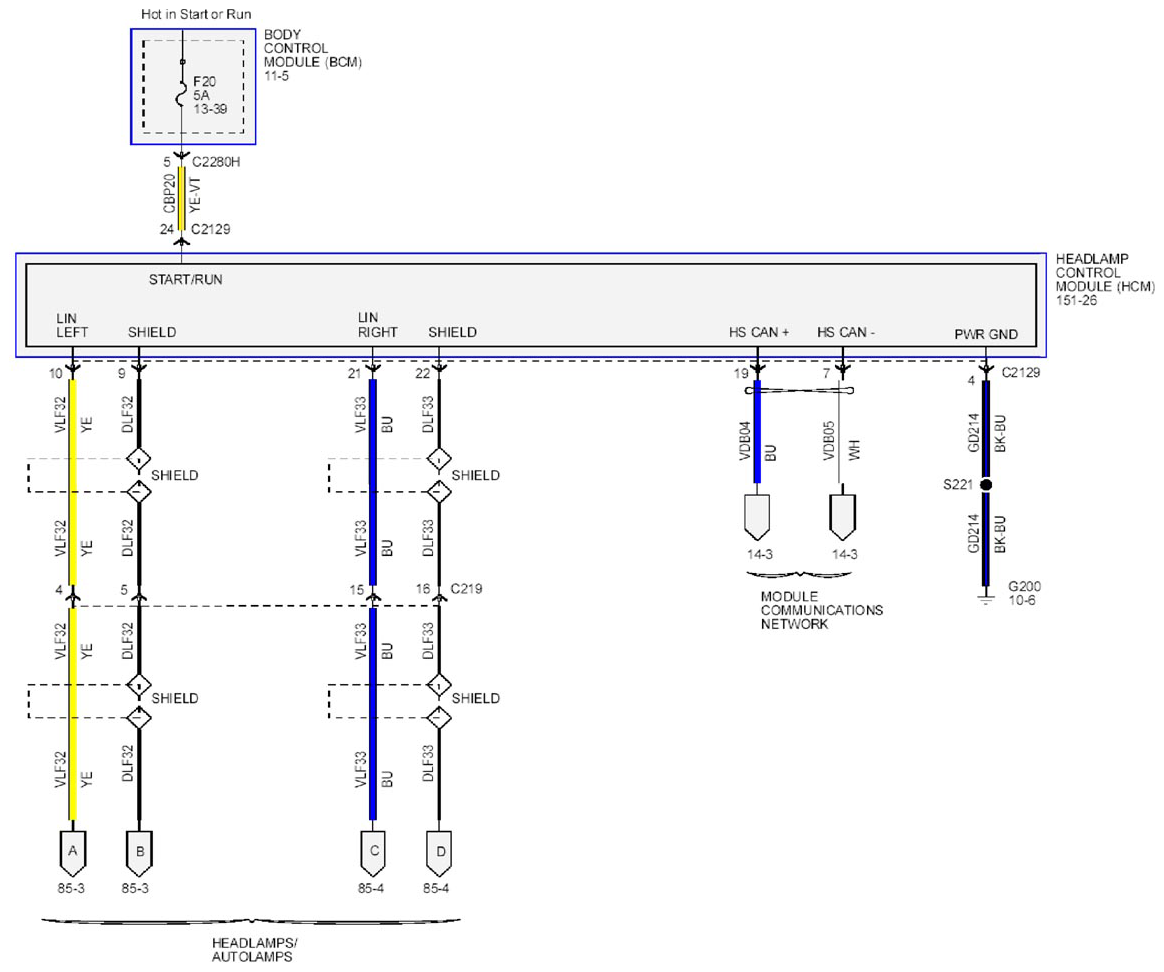

Fig 2: LED - Wiring Diagram (2 Of 3)

Courtesy of FORD MOTOR CO.

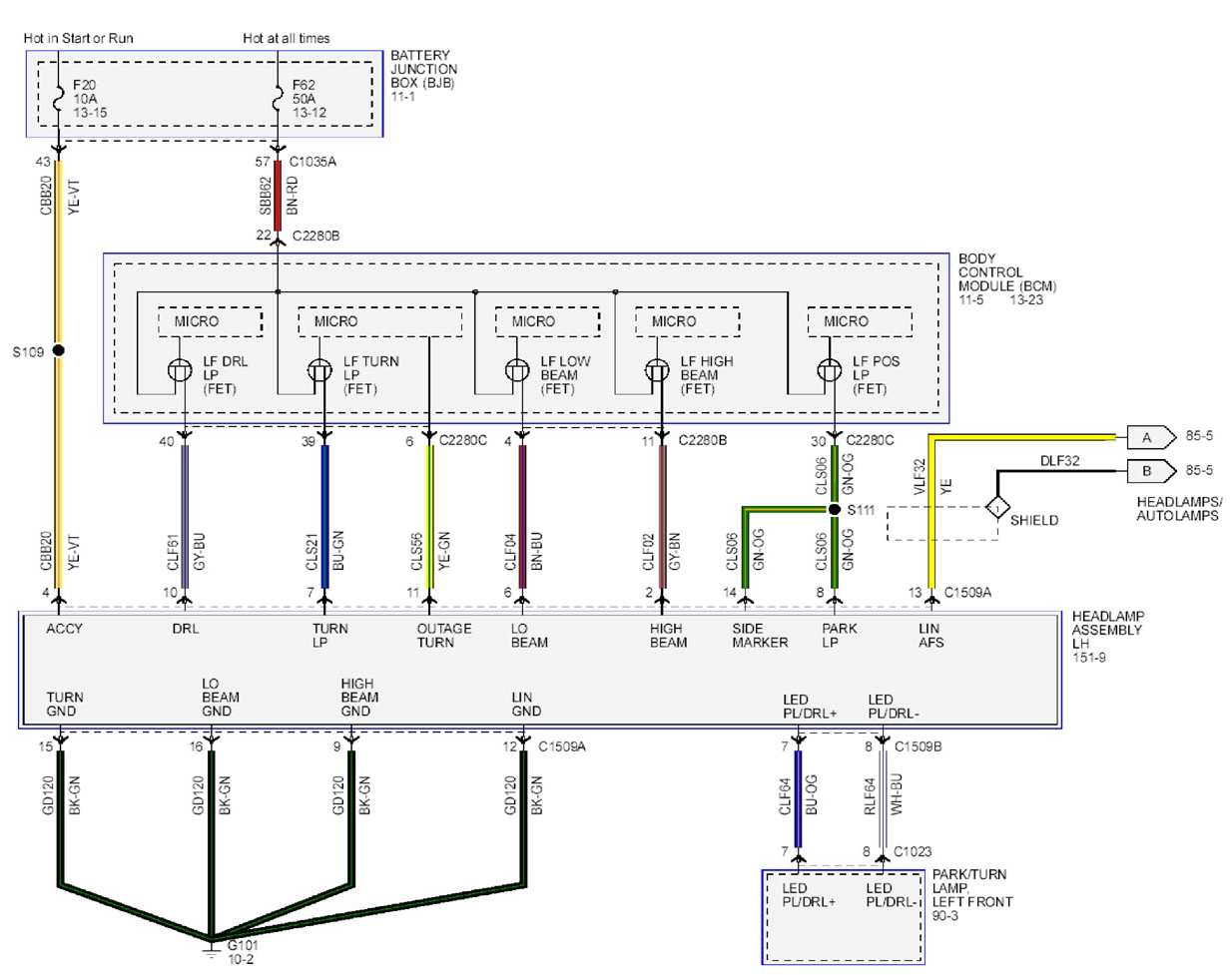

Fig 3: LED - Wiring Diagram (3 Of 3)

Courtesy of FORD MOTOR CO.
