Electronic Engine Controls - 2.5L: Brazil

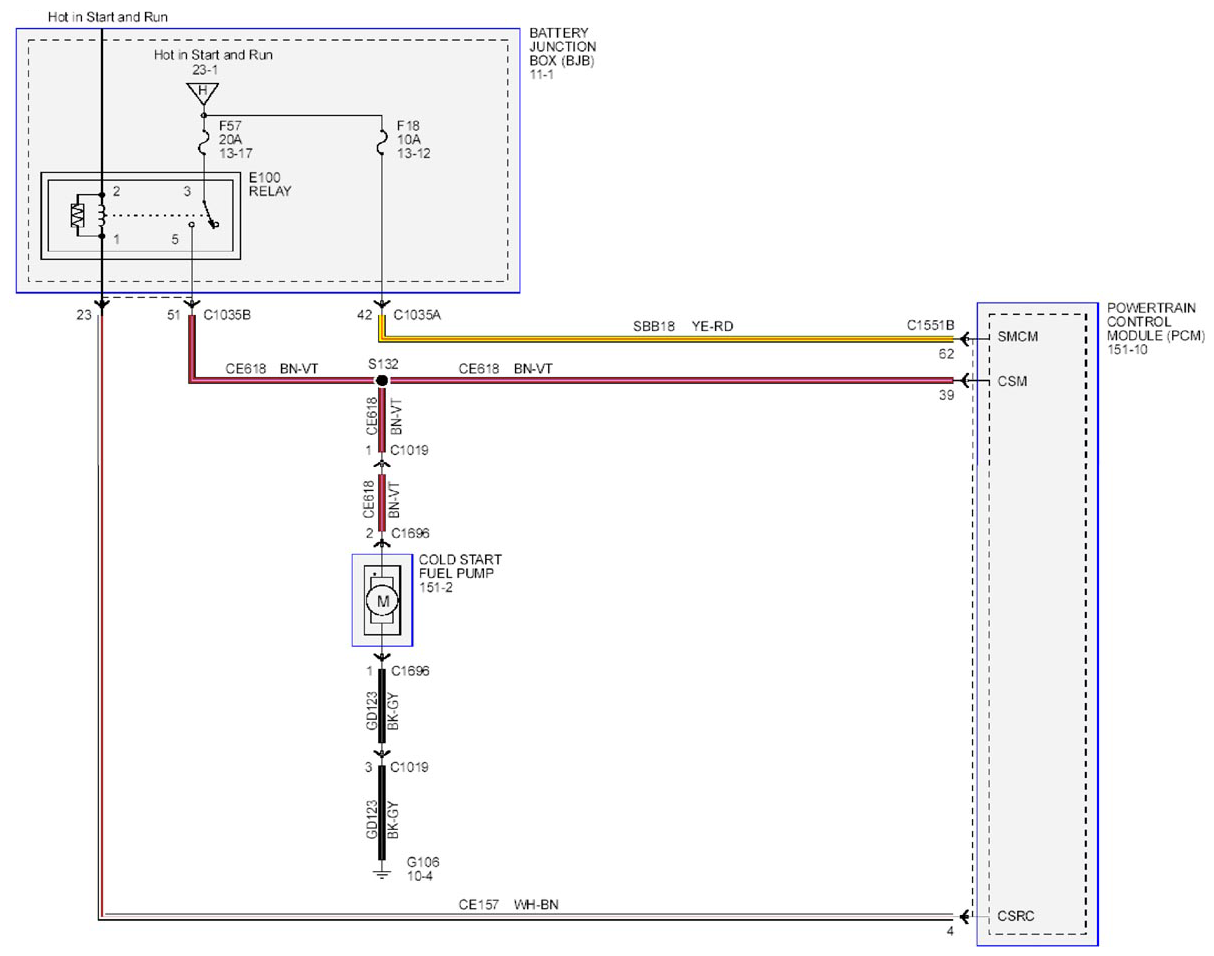

Fig 1: Electronic Engine Controls - Brazil - Wiring Diagram (1 Of 8)

G09264701

Courtesy of FORD MOTOR CO.
