W/Adaptive Cruise

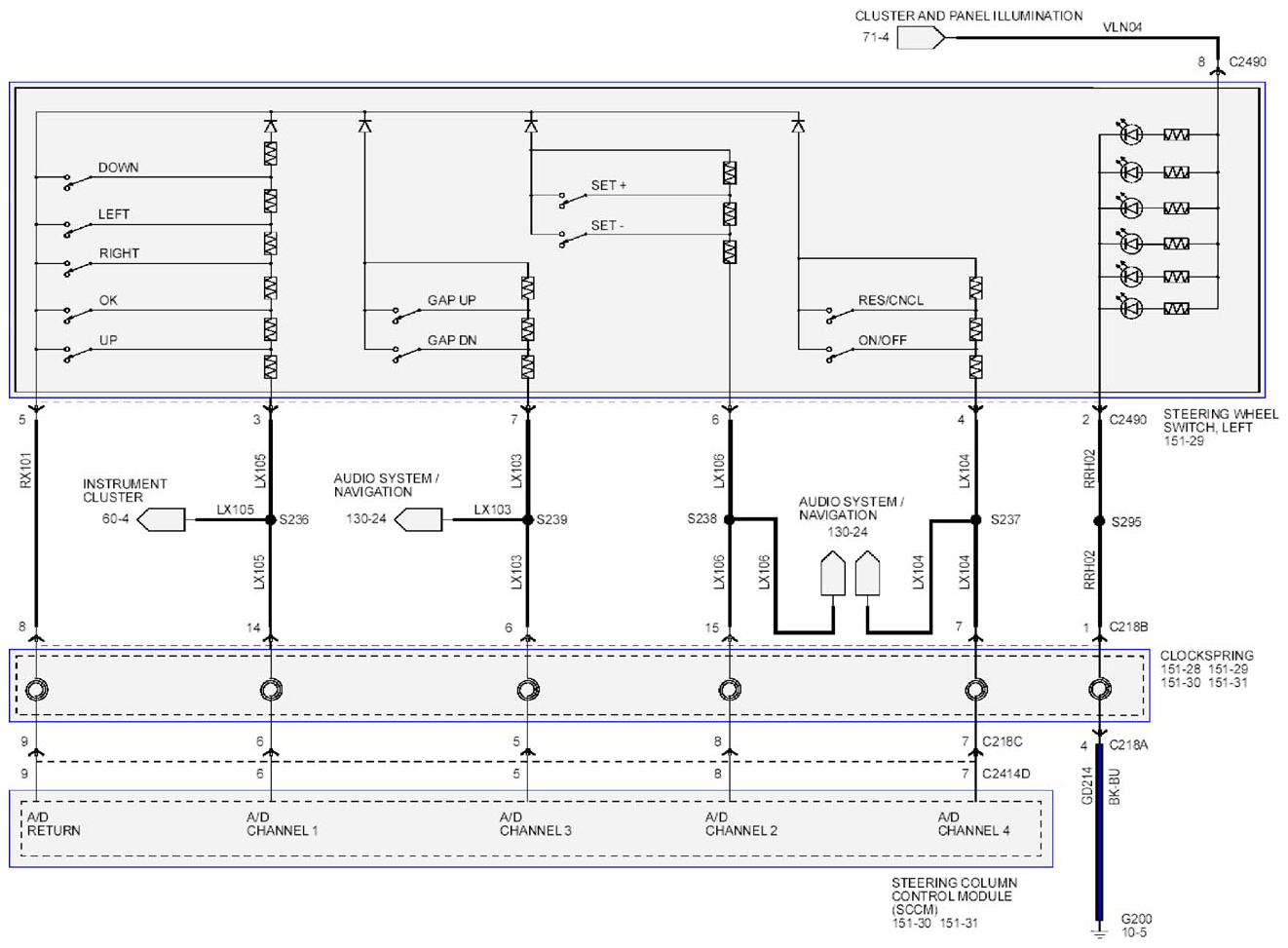

Fig 1: Cruise Control - With Adaptive Cruise - Wiring Diagram (1 Of 2)
G09264766Courtesy of FORD MOTOR CO.

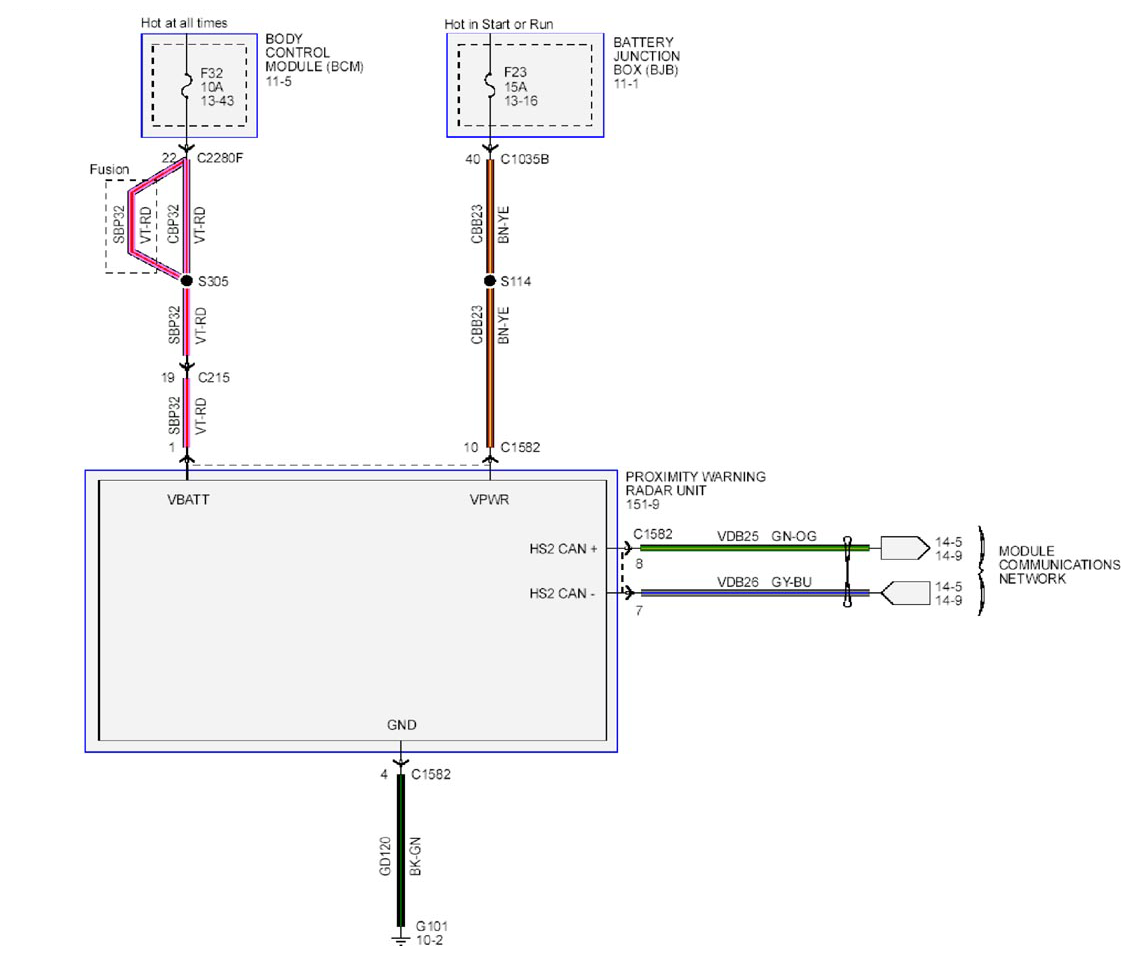

Fig 2: Cruise Control - With Adaptive Cruise - Wiring Diagram (2 Of 2)
G09264770Courtesy of FORD MOTOR CO.
