Cruise Control
>>
MKZ W/Adaptive Cruise
MKZ W/Adaptive Cruise

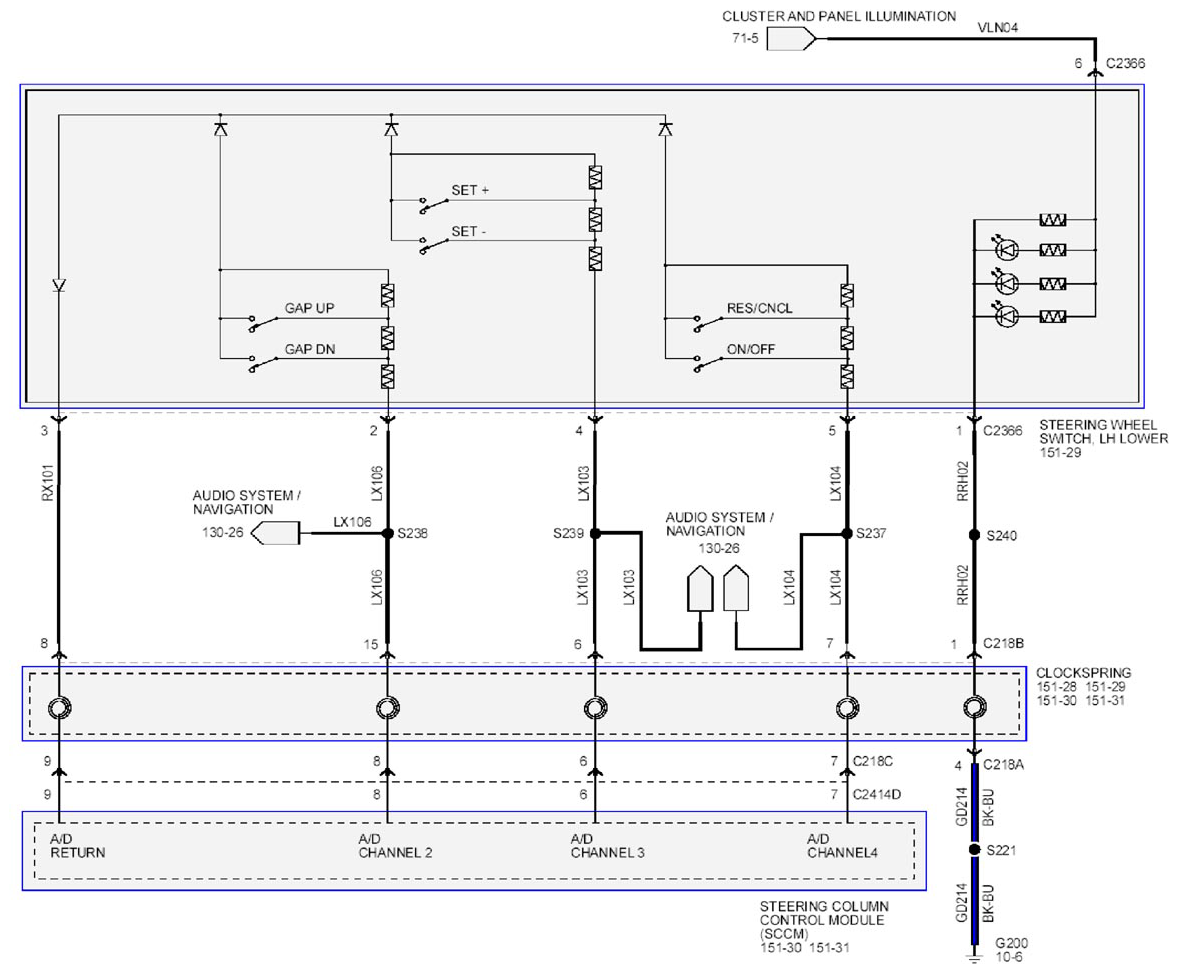

Fig 1: Cruise Control - MKZ W/Adaptive Cruise - Wiring Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
