Cluster And Panel Illumination: MKZ

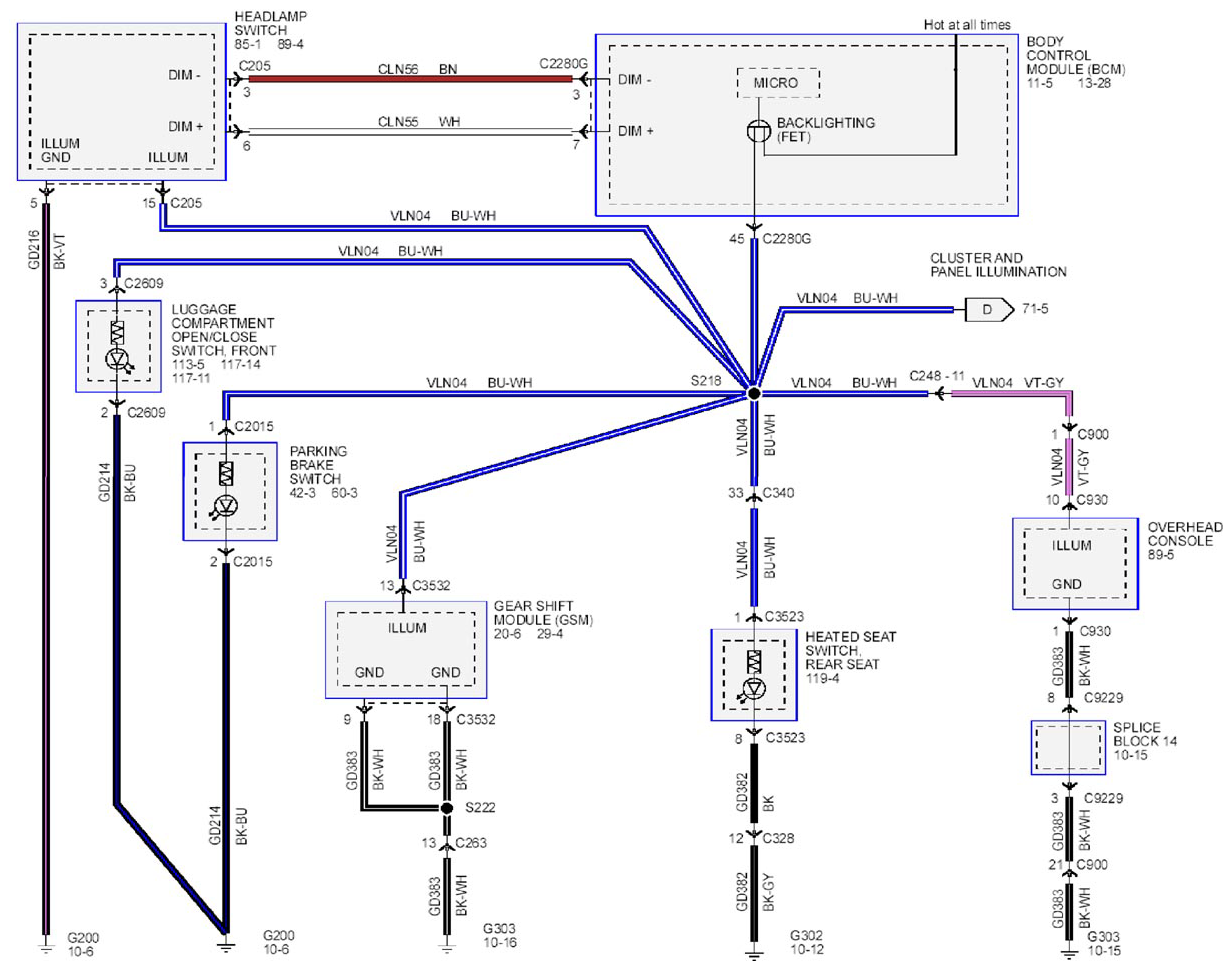

Fig 1: Cluster And Panel Illumination - Wiring Diagram - MKZ (1 Of 2)
G09264821Courtesy of FORD MOTOR CO.

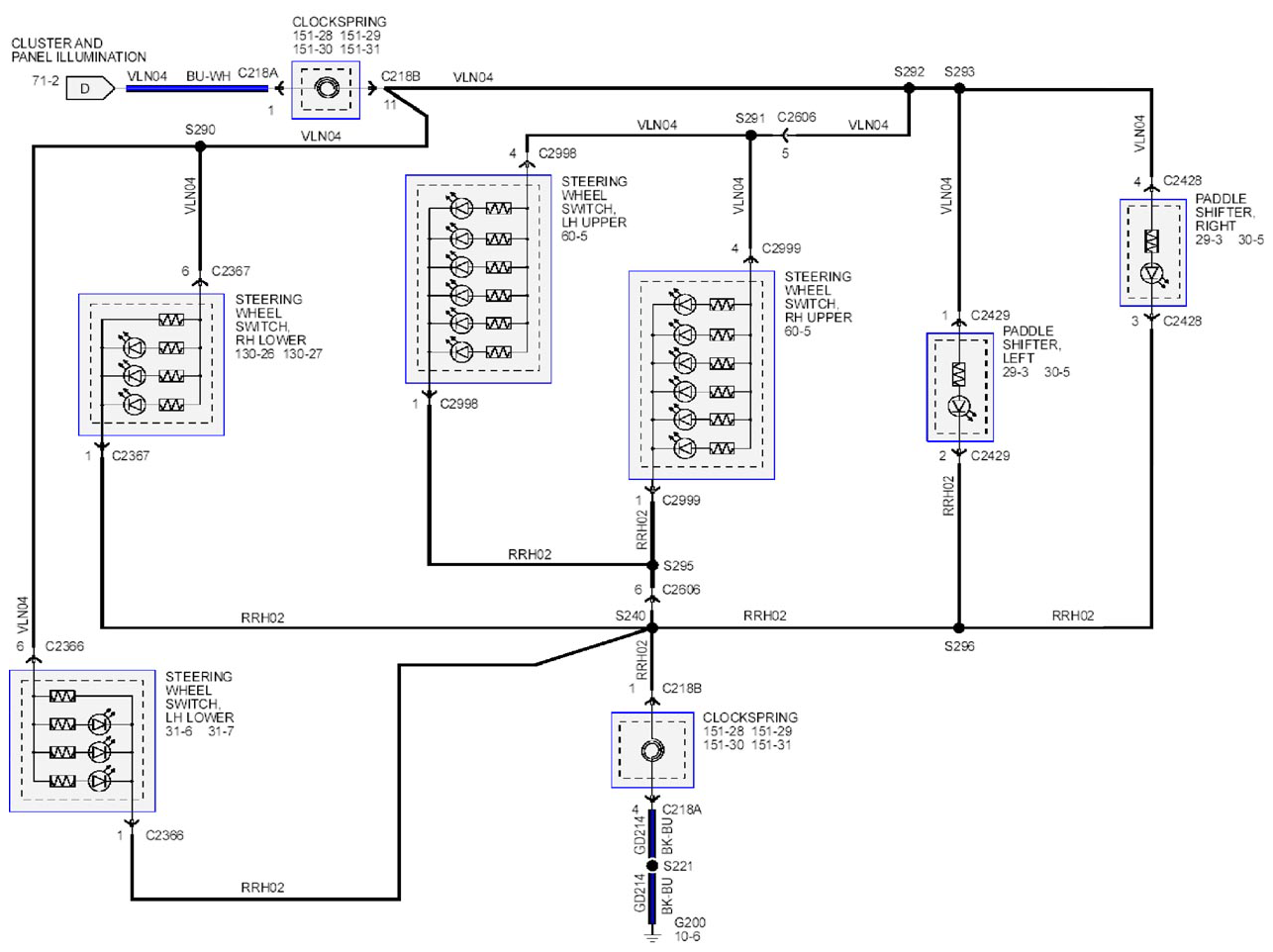

Fig 2: Cluster And Panel Illumination - Wiring Diagram - MKZ (2 Of 2)
G09264824Courtesy of FORD MOTOR CO.
