Cluster And Panel Illumination: Fusion

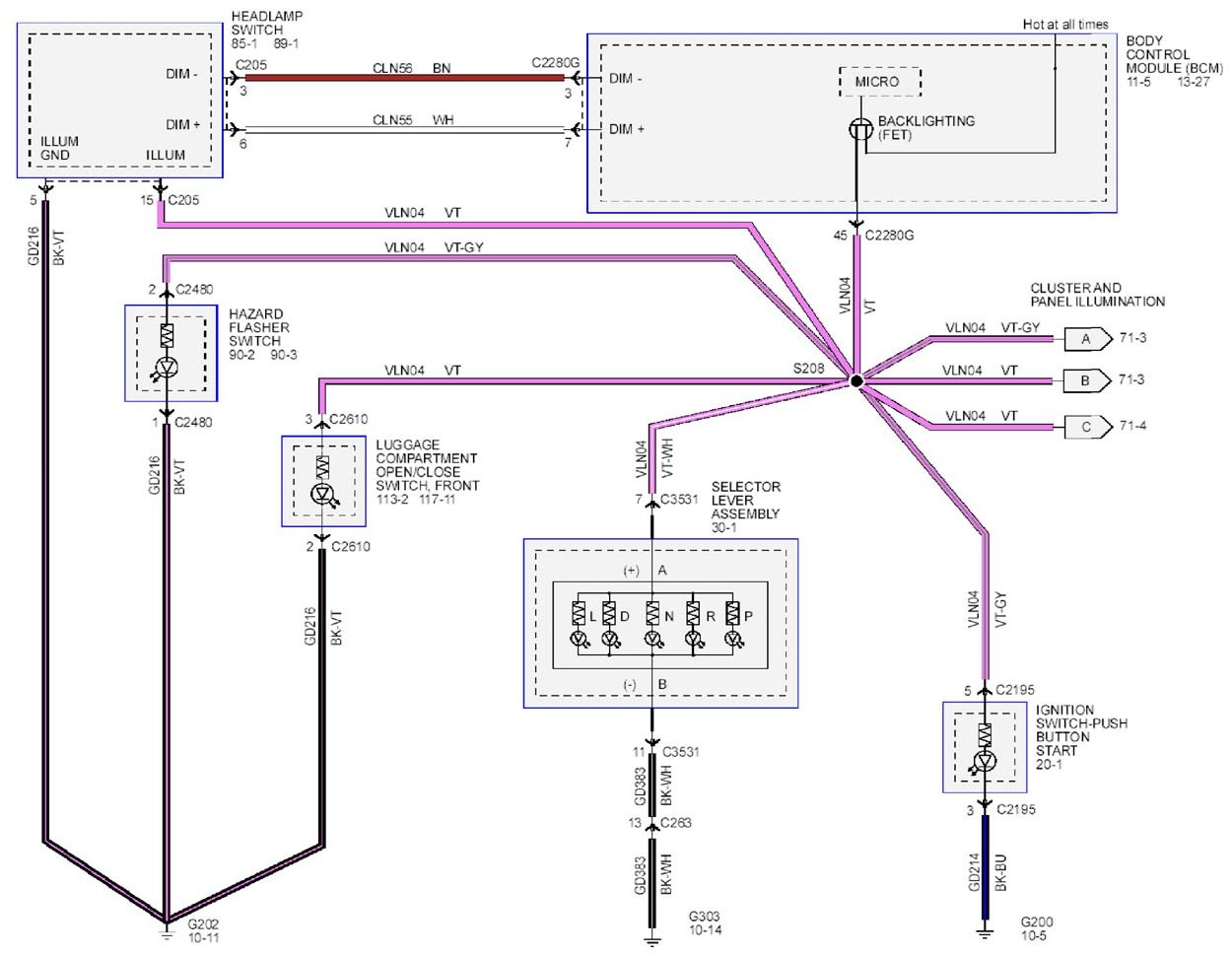

Fig 1: Cluster And Panel Illumination - Wiring Diagram - Fusion (1 Of 3)
G09264820Courtesy of FORD MOTOR CO.

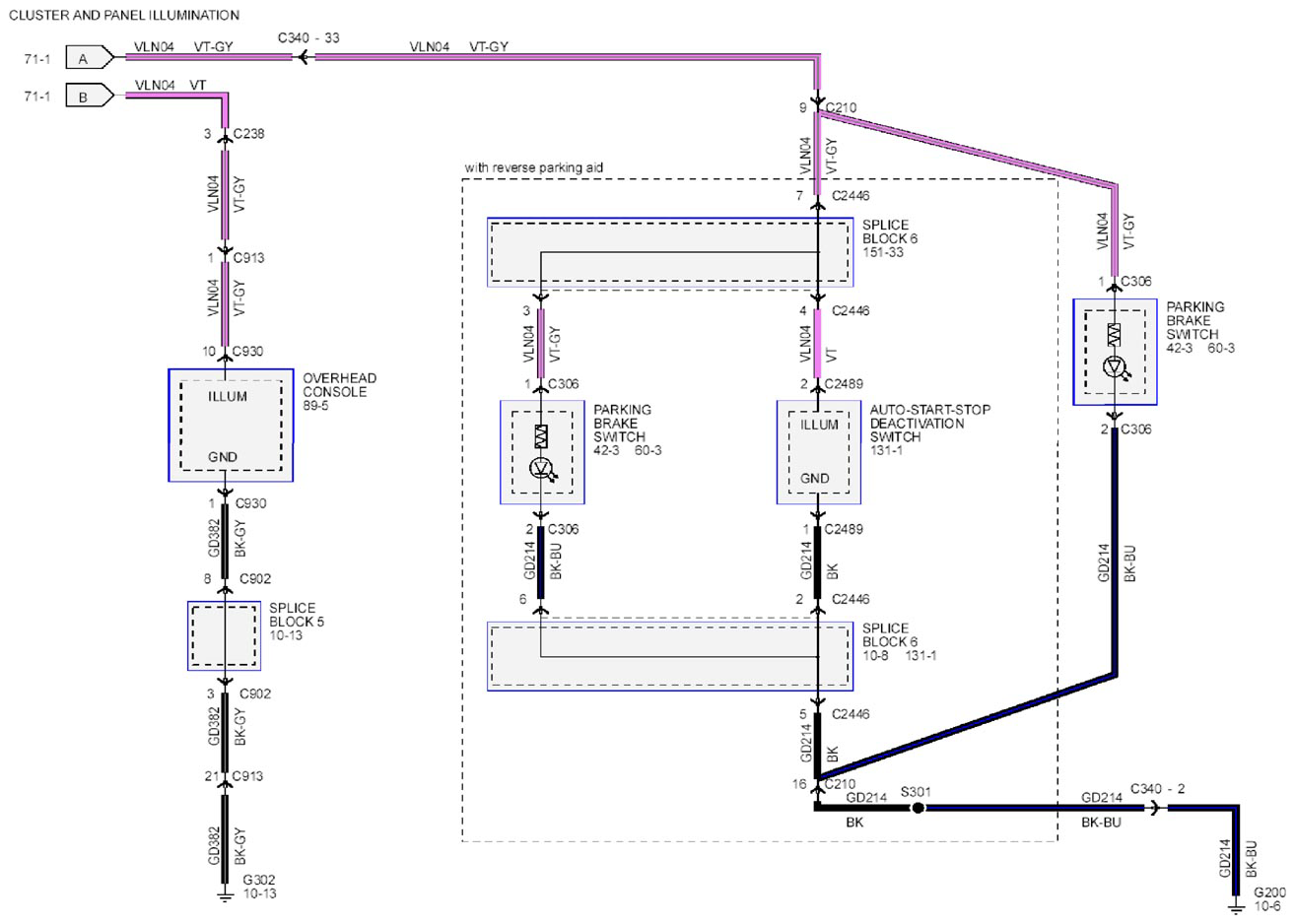

Fig 2: Cluster And Panel Illumination - Wiring Diagram - Fusion (2 Of 3)
G09264822Courtesy of FORD MOTOR CO.

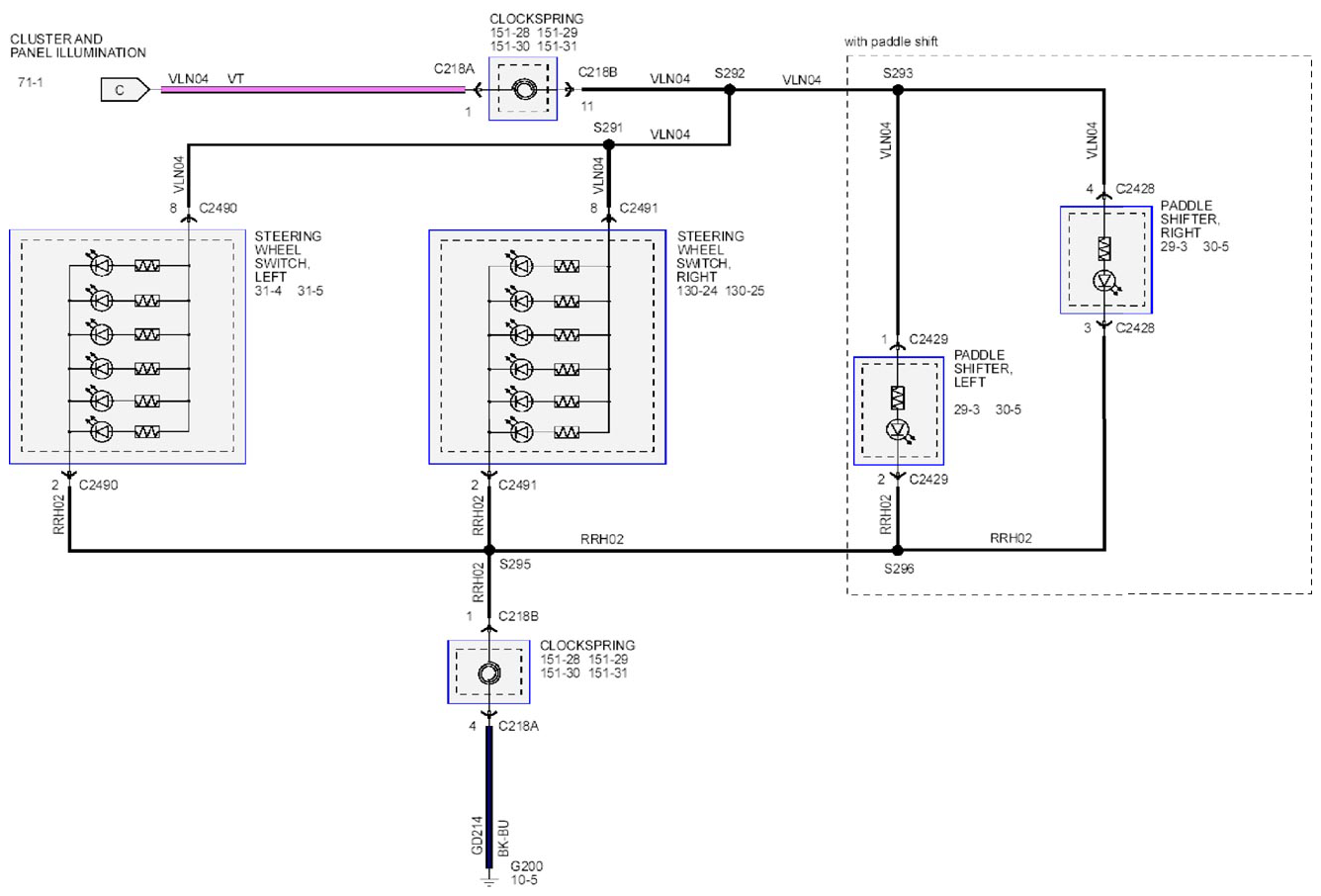

Fig 3: Cluster And Panel Illumination - Wiring Diagram - Fusion (3 Of 3)
G09264823Courtesy of FORD MOTOR CO.
