Home >> Ford >> 2014 >> Fusion Titanium, FWD >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> OEM Wiring Diagrams -- (Except Hybrid) >> Climate Controlled Seats >> With Rear Heated Seats

With Rear Heated Seats

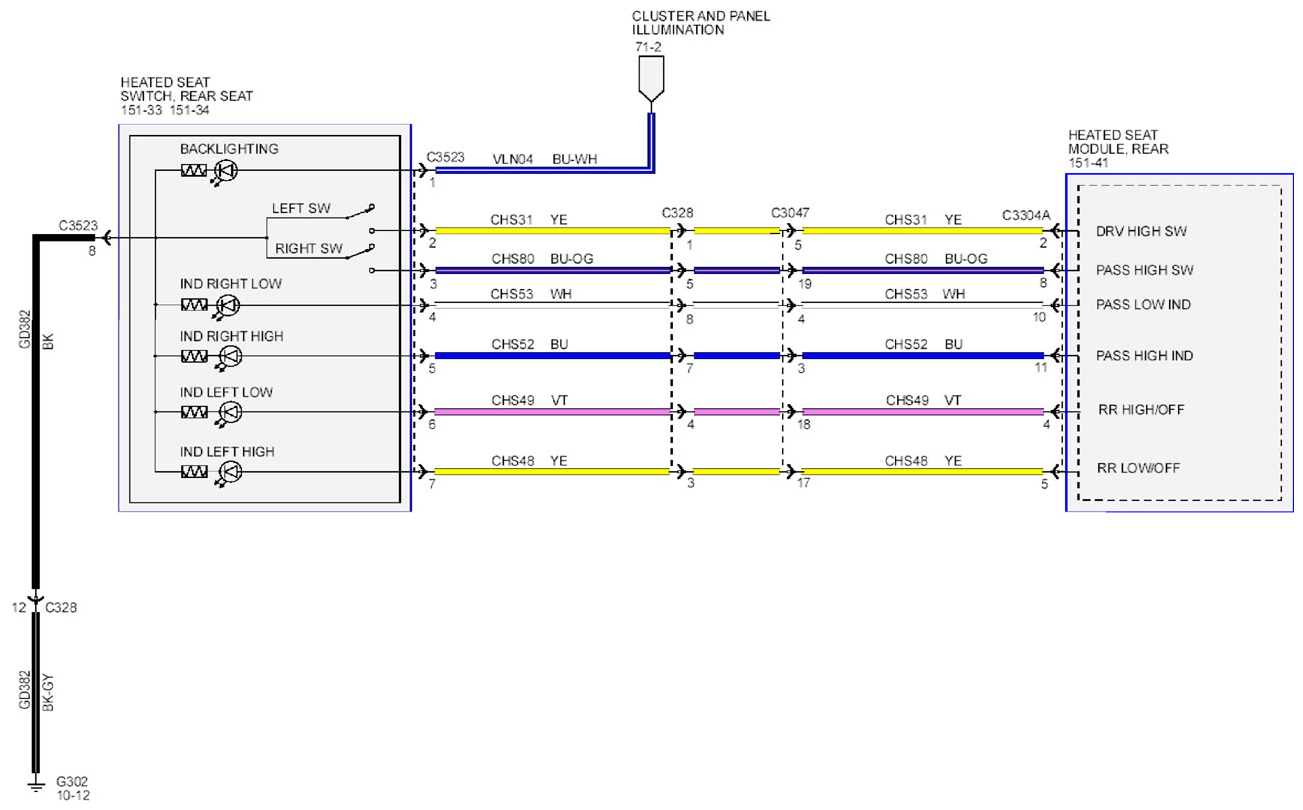

Fig 1: Climate Controlled Seats - With Rear Heated Seats - Wiring Diagram (1 Of 2)
G09264899Courtesy of FORD MOTOR CO.

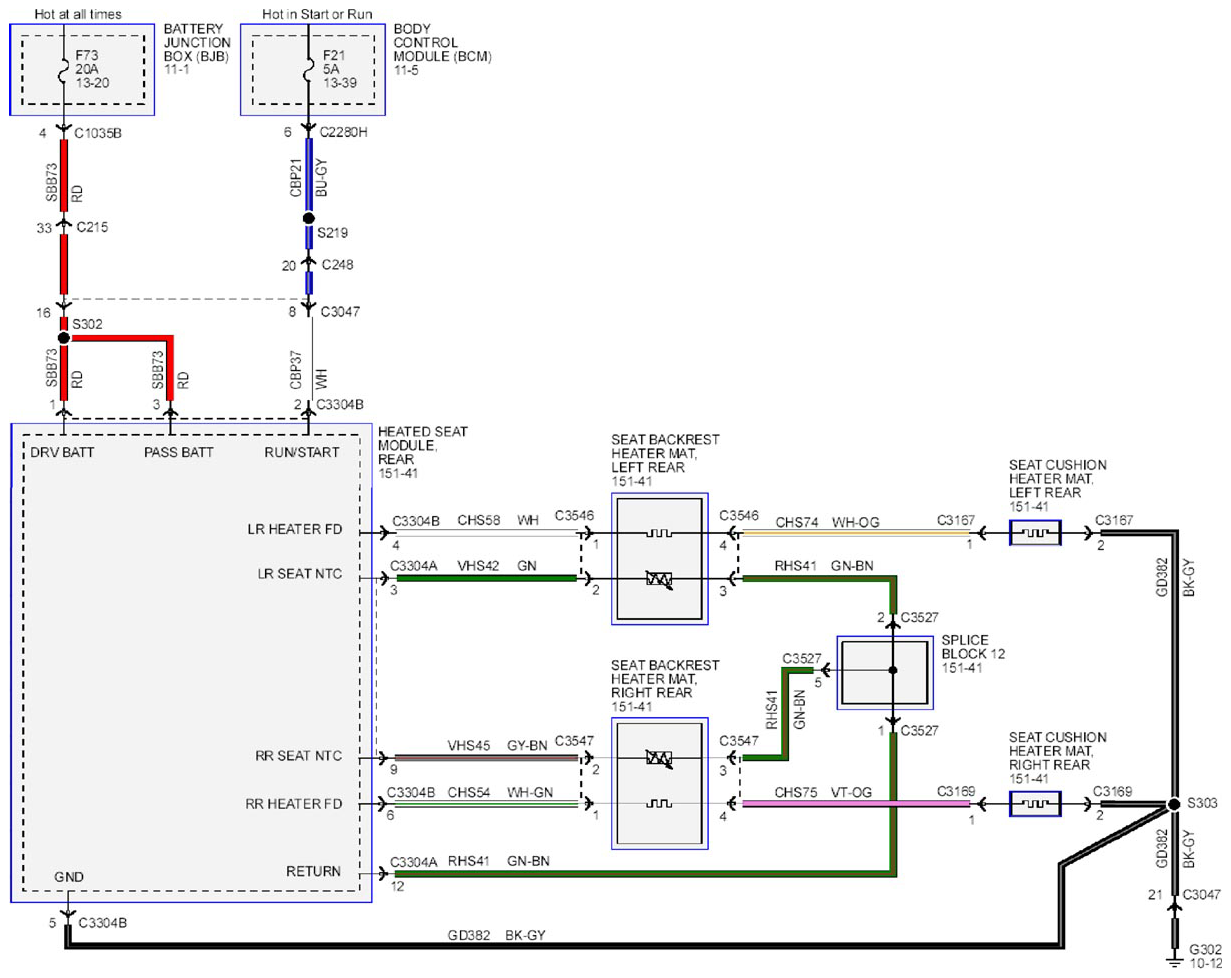

Fig 2: Climate Controlled Seats - With Rear Heated Seats - Wiring Diagram (2 Of 2)
G09264900Courtesy of FORD MOTOR CO.
