Home >> Ford >> 2014 >> Fusion Titanium, FWD >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> OEM Wiring Diagrams -- (Except Hybrid) >> Climate Controlled Seats >> Notes

Climate Controlled Seats: Notes

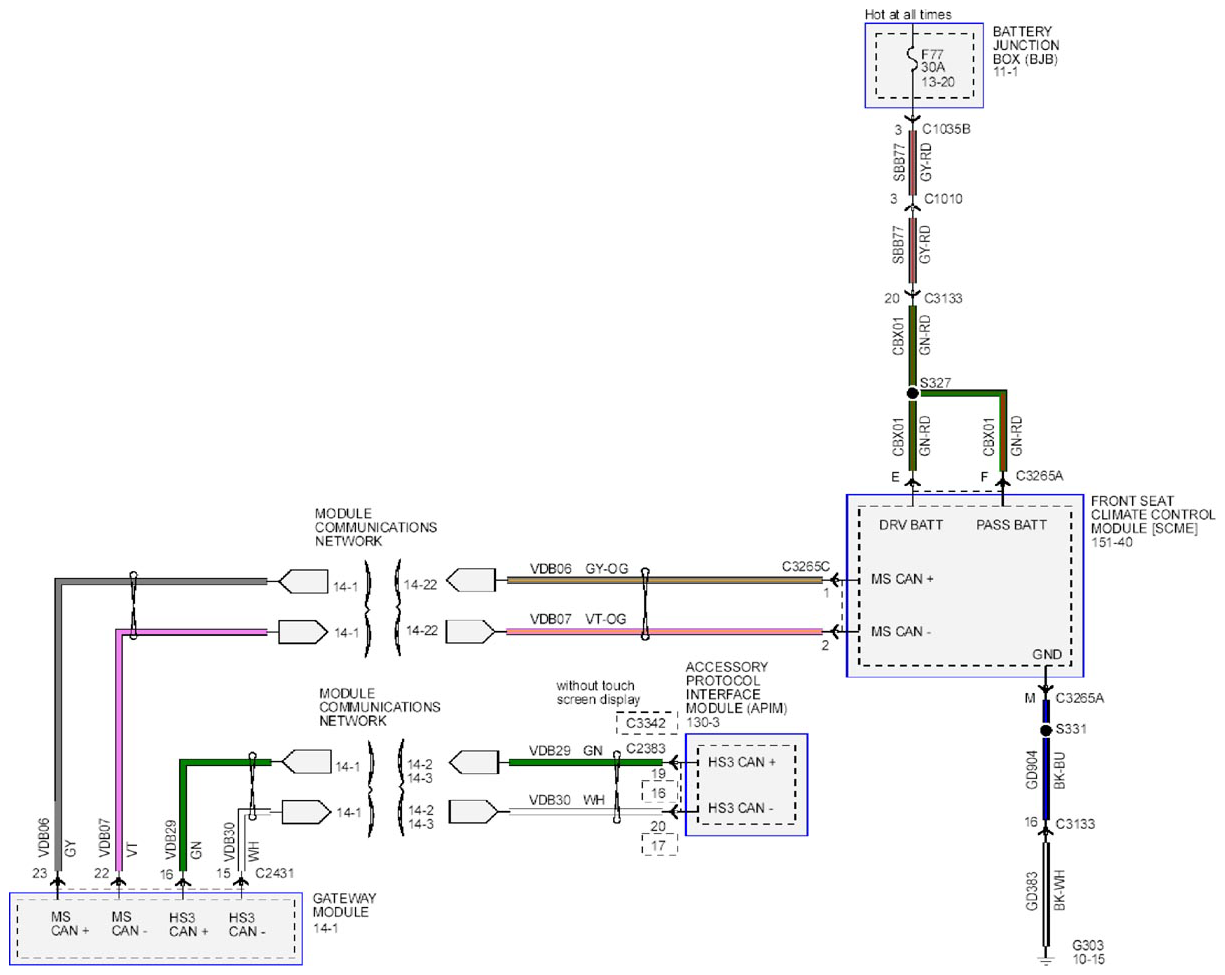

Fig 1: Climate Controlled Seats - Wiring Diagram (1 Of 3)
G09264901Courtesy of FORD MOTOR CO.

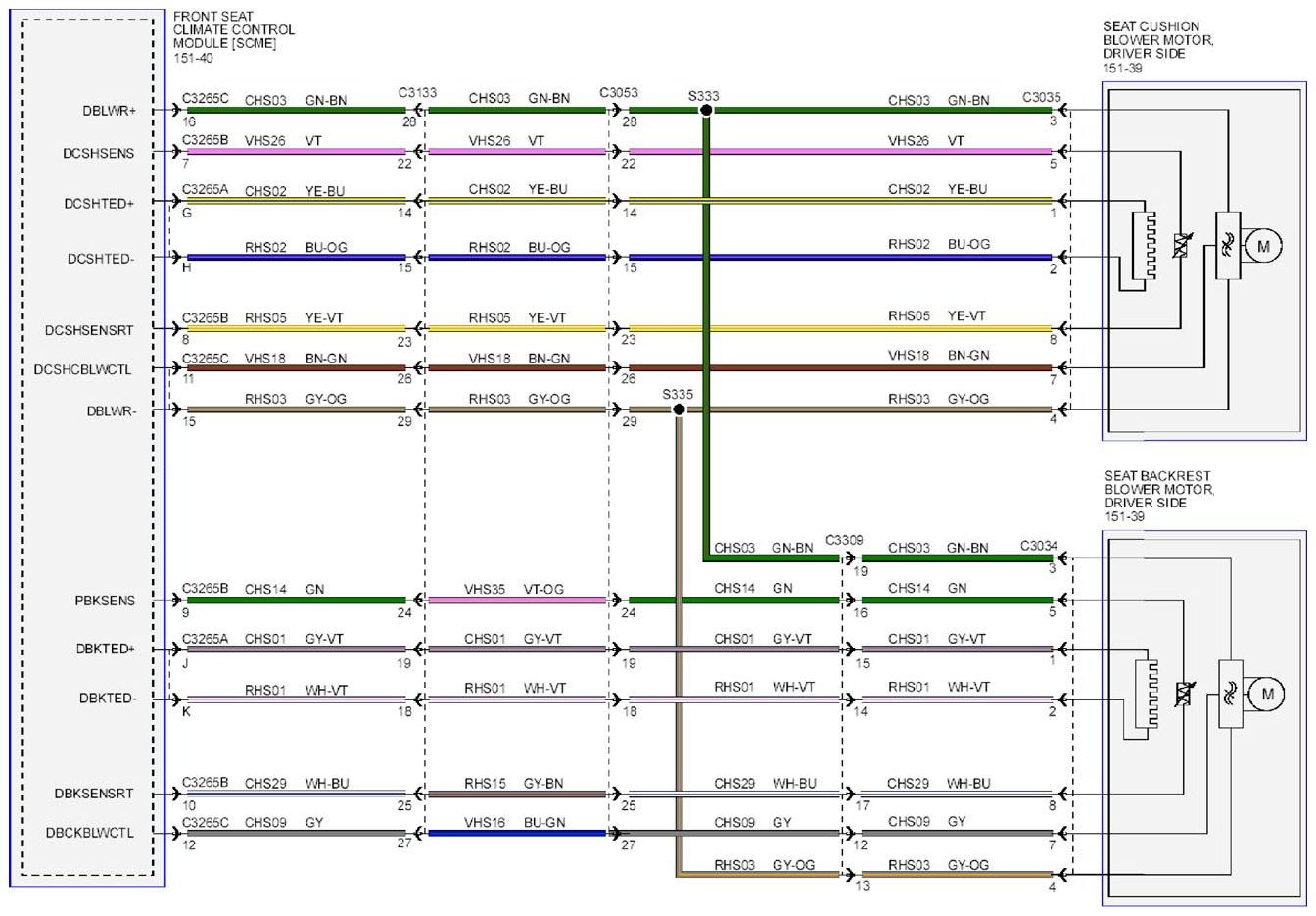

Fig 2: Climate Controlled Seats - Wiring Diagram (2 Of 3)
G09264902Courtesy of FORD MOTOR CO.

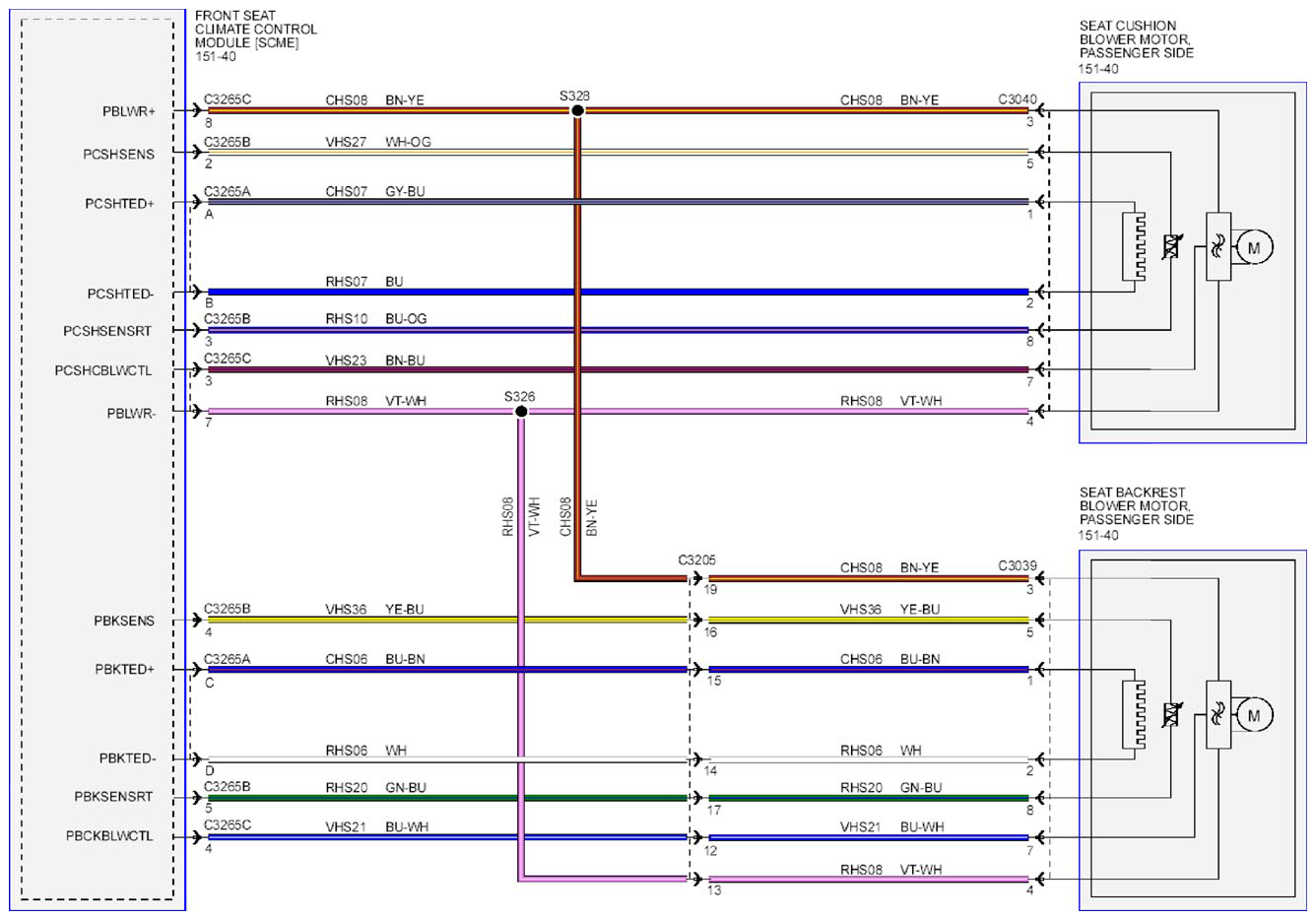

Fig 3: Climate Controlled Seats - Wiring Diagram (3 Of 3)
G09264903Courtesy of FORD MOTOR CO.
