Charging System
>>
1.5L With Auto-Start-Stop
1.5L With Auto-Start-Stop

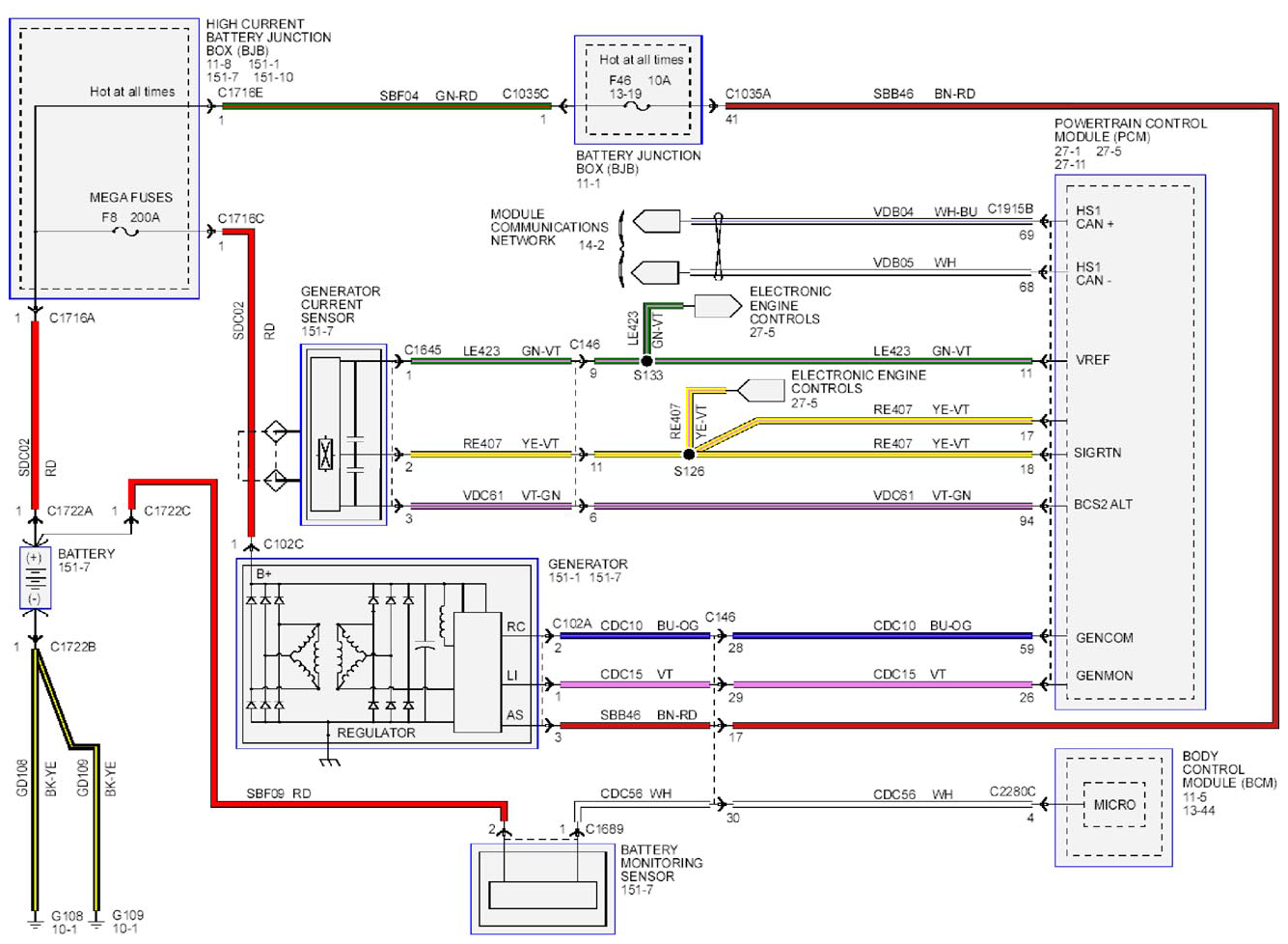

Fig 1: Charging System - Wiring Diagram - 1.5L With Auto-Start-Stop
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
