Fusion Titanium, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams -- (Except Hybrid)
>>
Automatic Climate Control System
Automatic Climate Control System

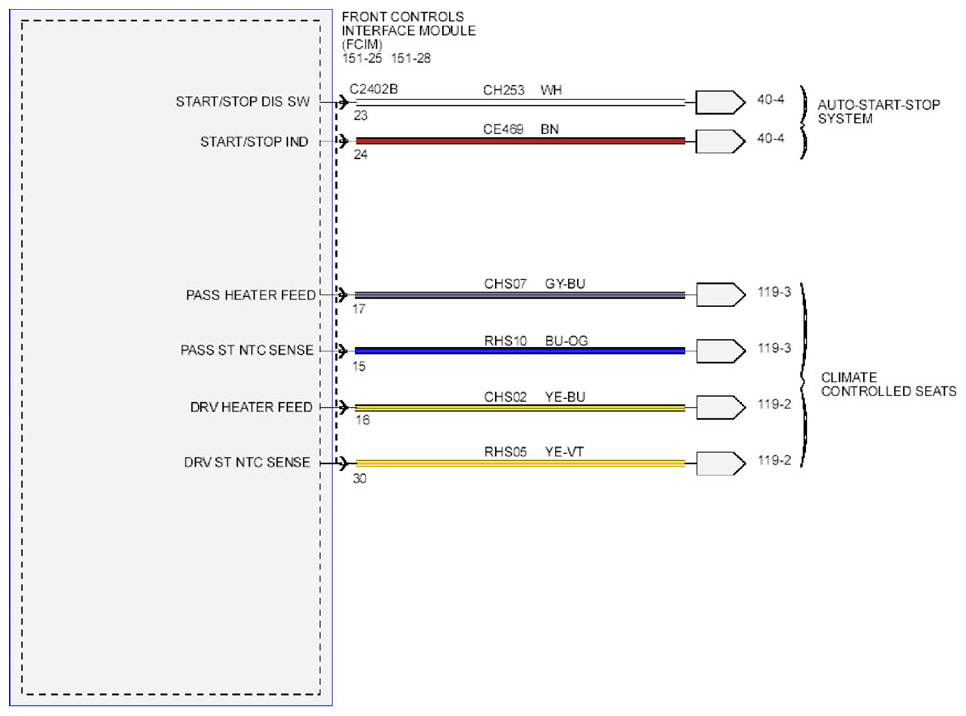

Fig 1: Automatic Climate Control System - Wiring Diagram (1 Of 7)
Courtesy of FORD MOTOR CO.

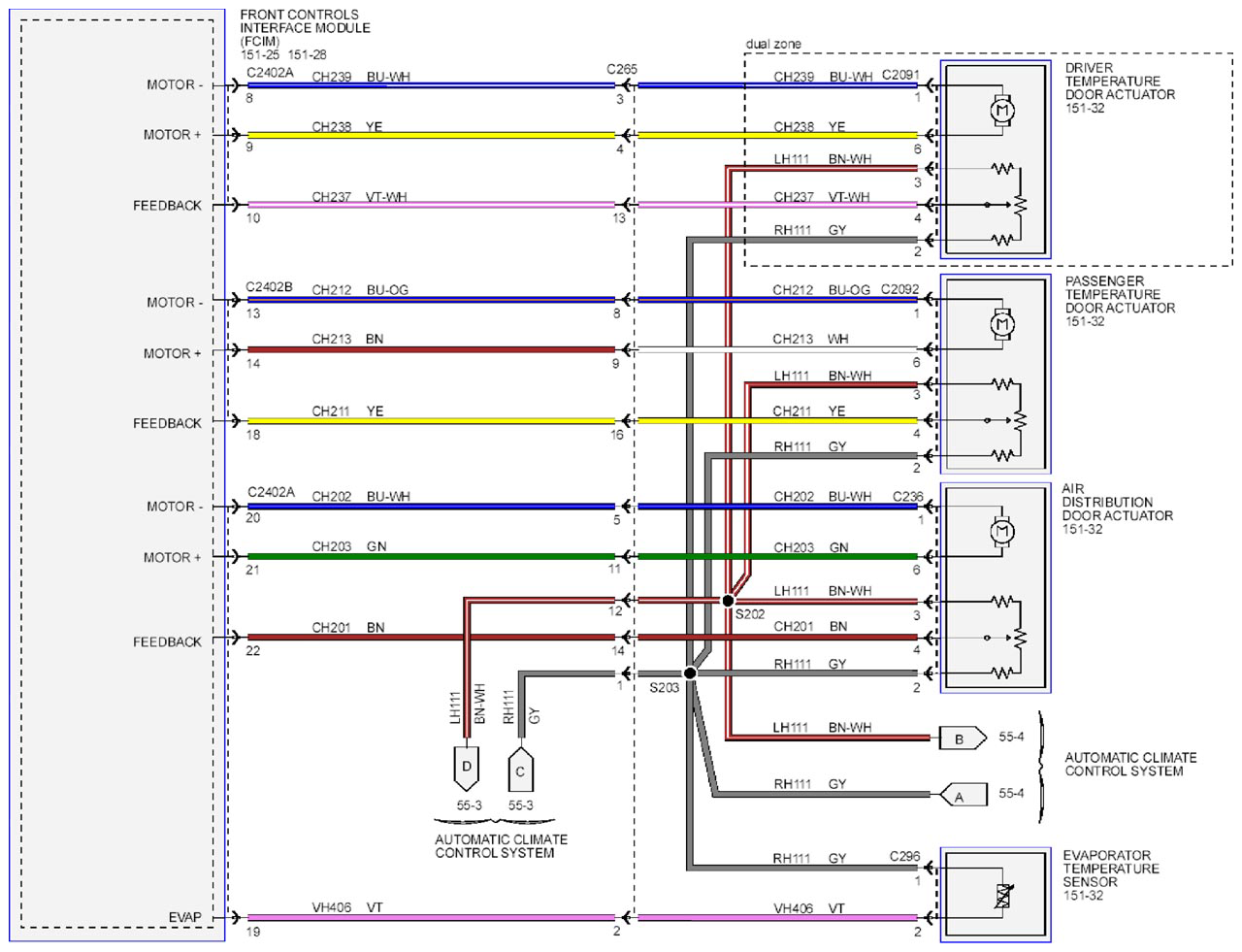

Fig 2: Automatic Climate Control System - Wiring Diagram (2 Of 7)
Courtesy of FORD MOTOR CO.

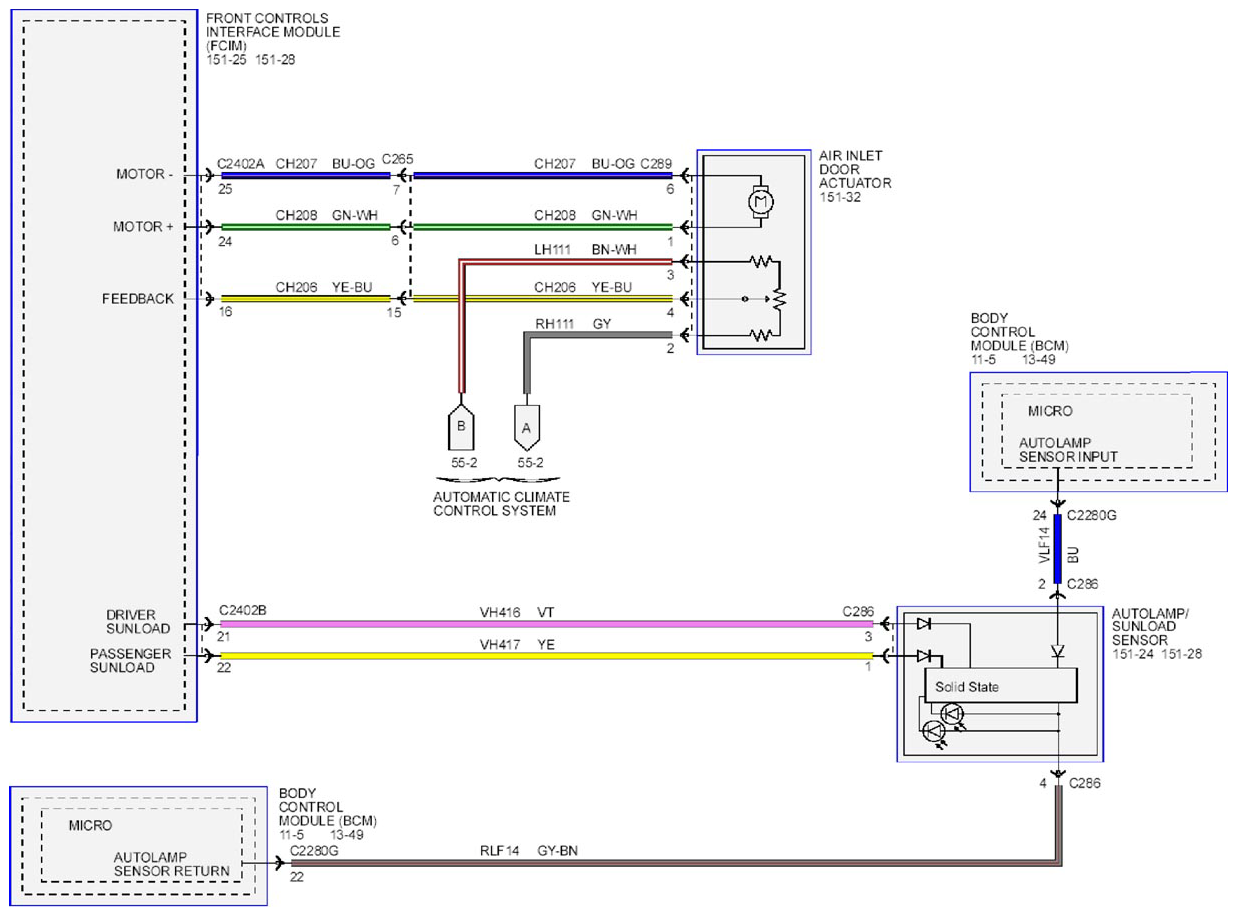

Fig 3: Automatic Climate Control System - Wiring Diagram (3 Of 7)
Courtesy of FORD MOTOR CO.

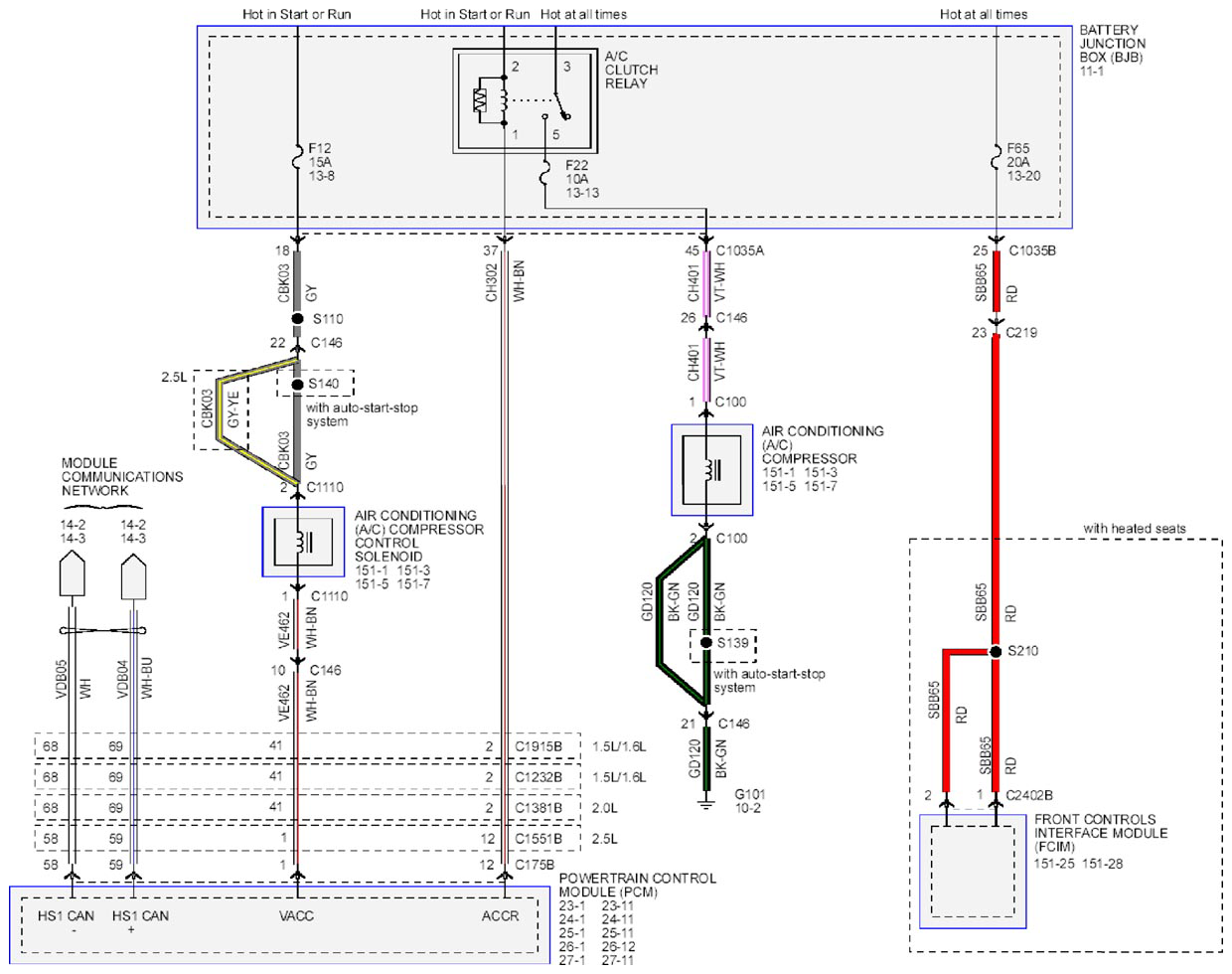

Fig 4: Automatic Climate Control System - Wiring Diagram (4 Of 7)
Courtesy of FORD MOTOR CO.

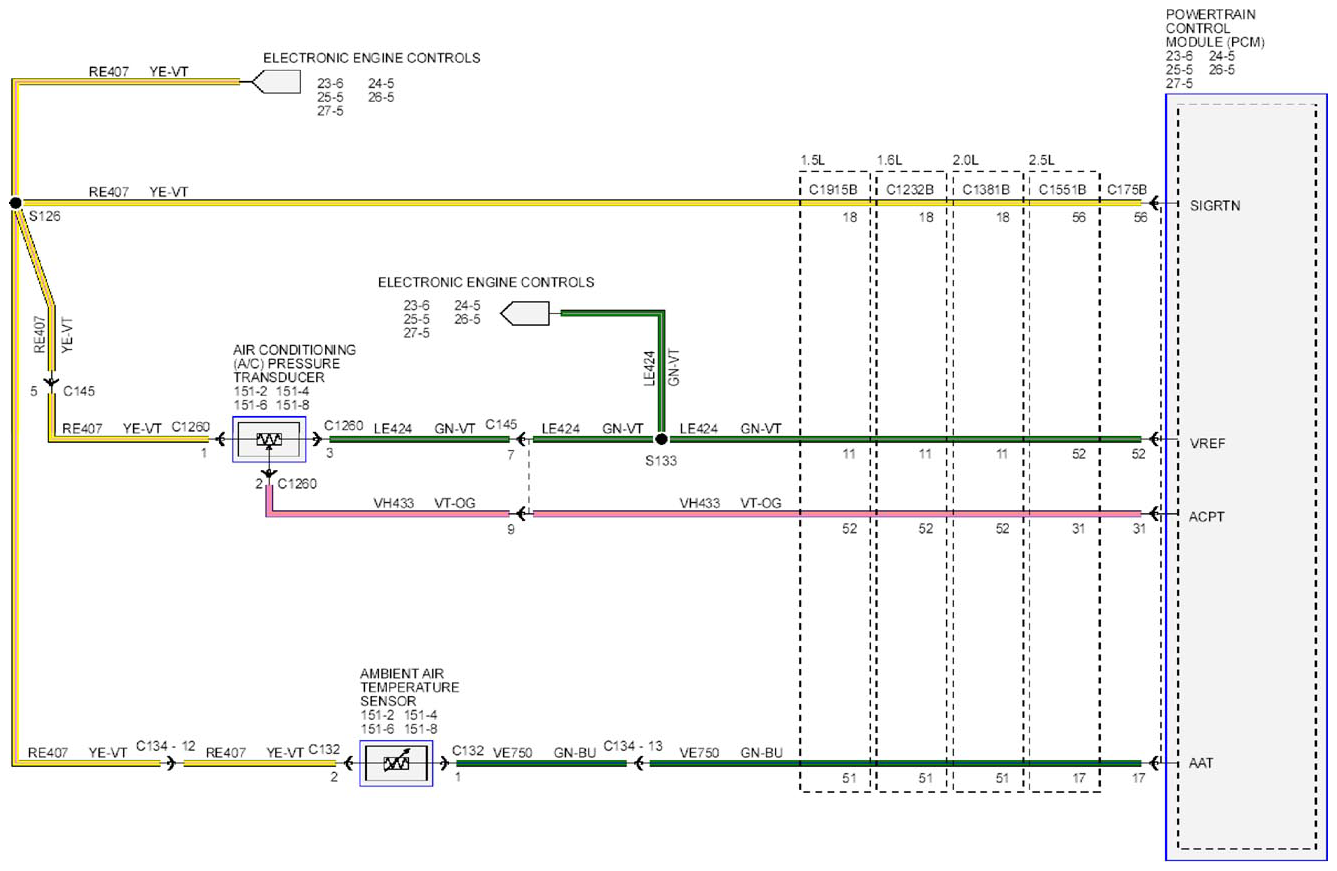

Fig 5: Automatic Climate Control System - Wiring Diagram (5 Of 7)
Courtesy of FORD MOTOR CO.

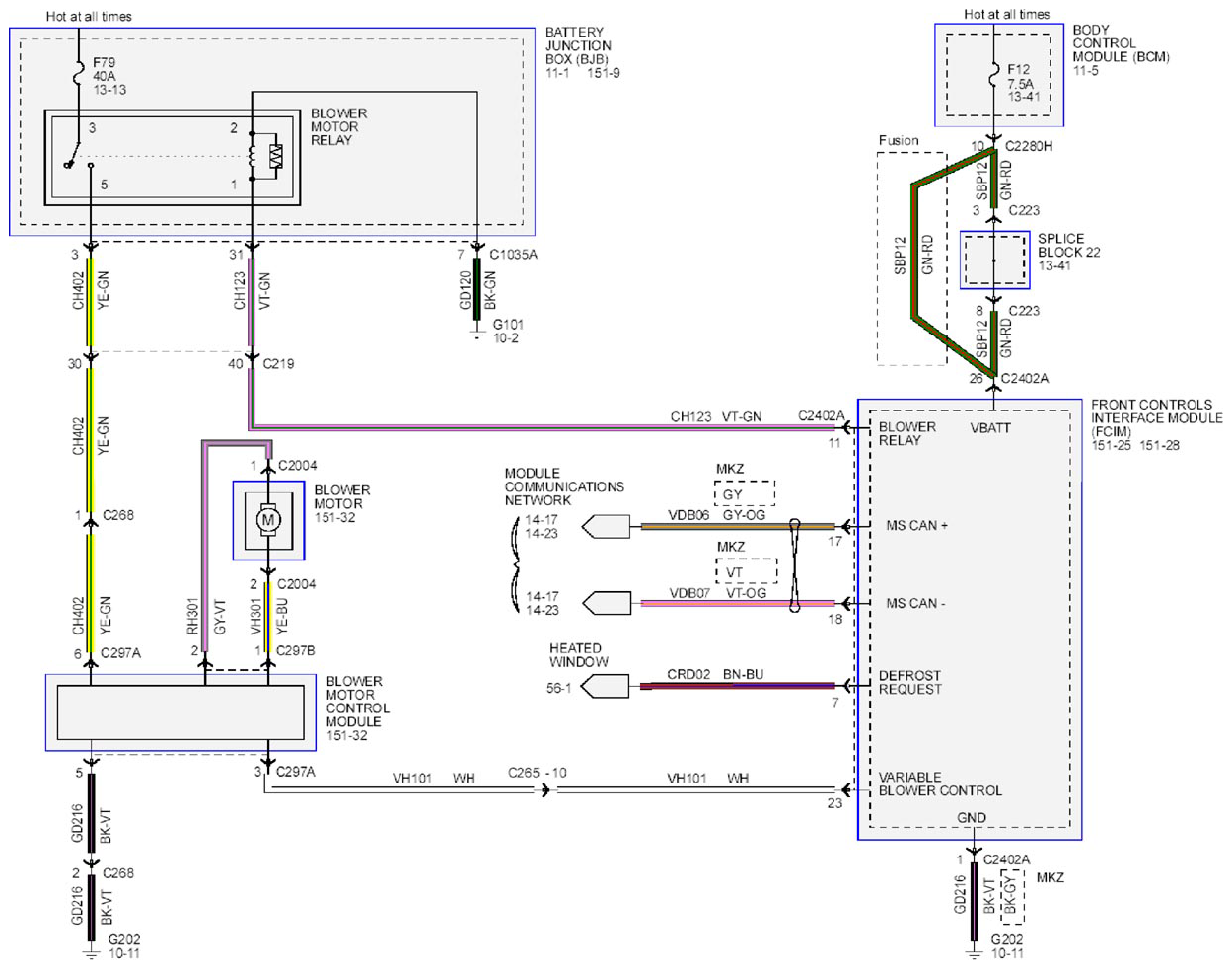

Fig 6: Automatic Climate Control System - Wiring Diagram (6 Of 7)
Courtesy of FORD MOTOR CO.

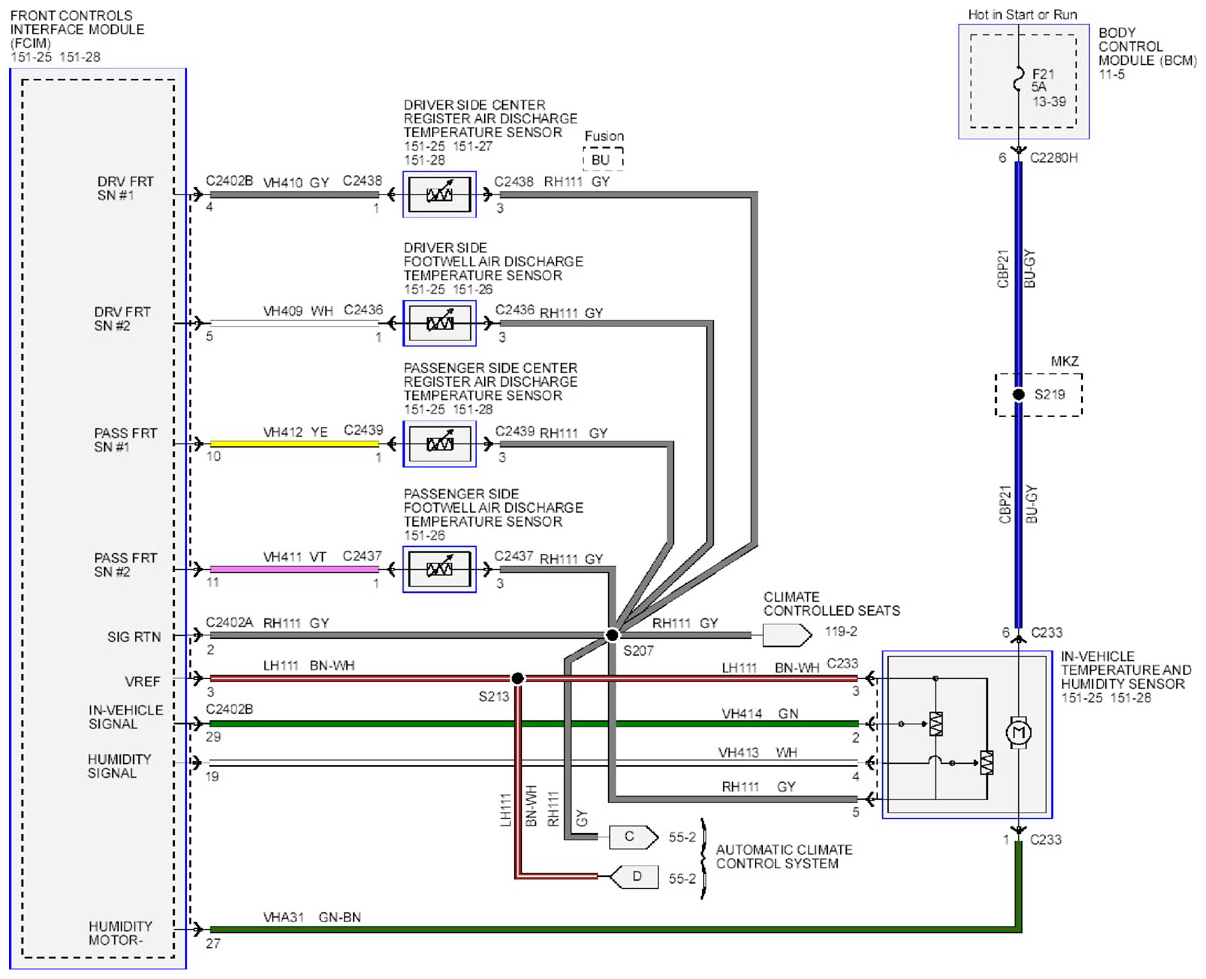

Fig 7: Automatic Climate Control System - Wiring Diagram (7 Of 7)
Courtesy of FORD MOTOR CO.
