Audio System/Navigation
>>
THX® Audio
THX® Audio

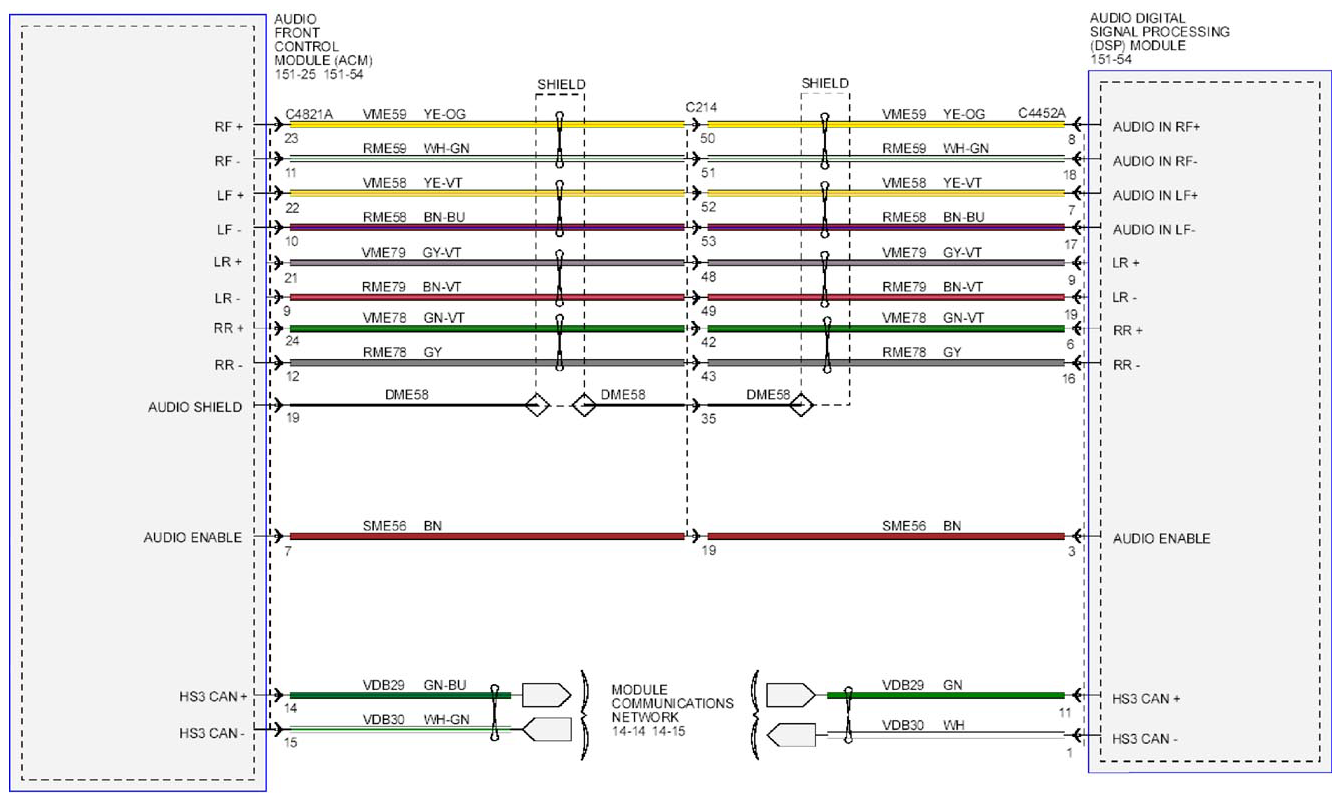

Fig 1: Audio System Navigation Thx® Audio - Wiring Diagram (1 Of 4)
Courtesy of FORD MOTOR CO.

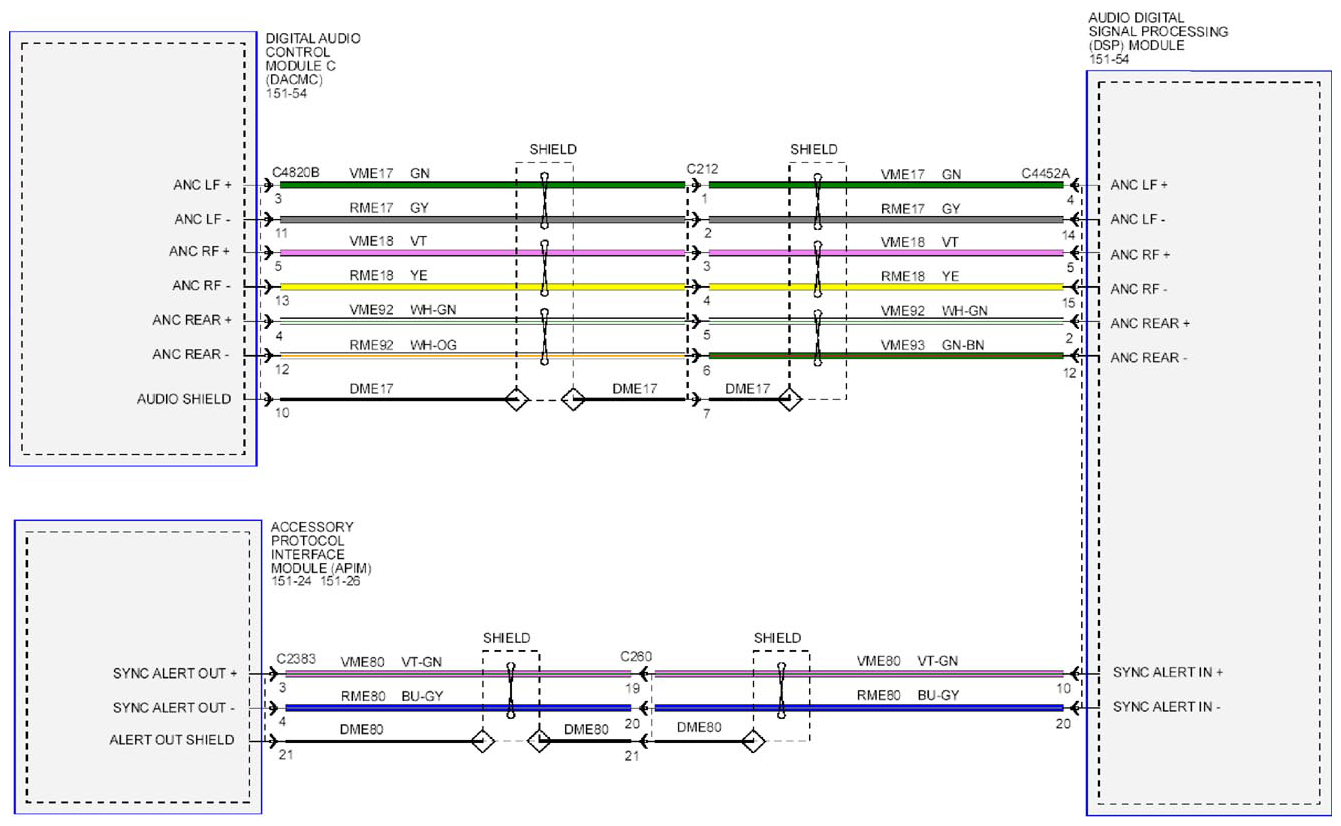

Fig 2: Audio System Navigation Thx® Audio - Wiring Diagram (2 Of 4)
Courtesy of FORD MOTOR CO.

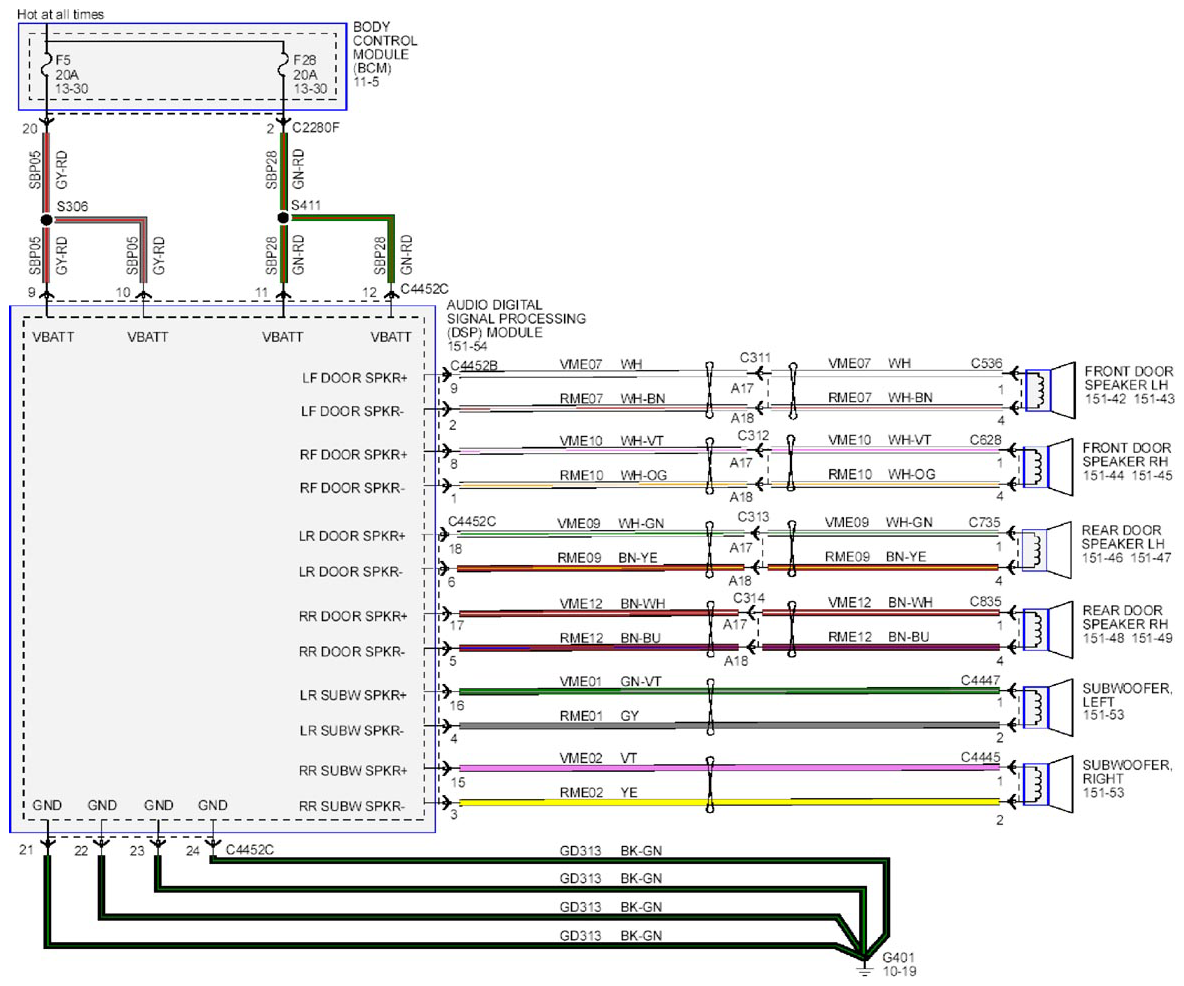

Fig 3: Audio System Navigation Thx® Audio - Wiring Diagram (3 Of 4)
Courtesy of FORD MOTOR CO.

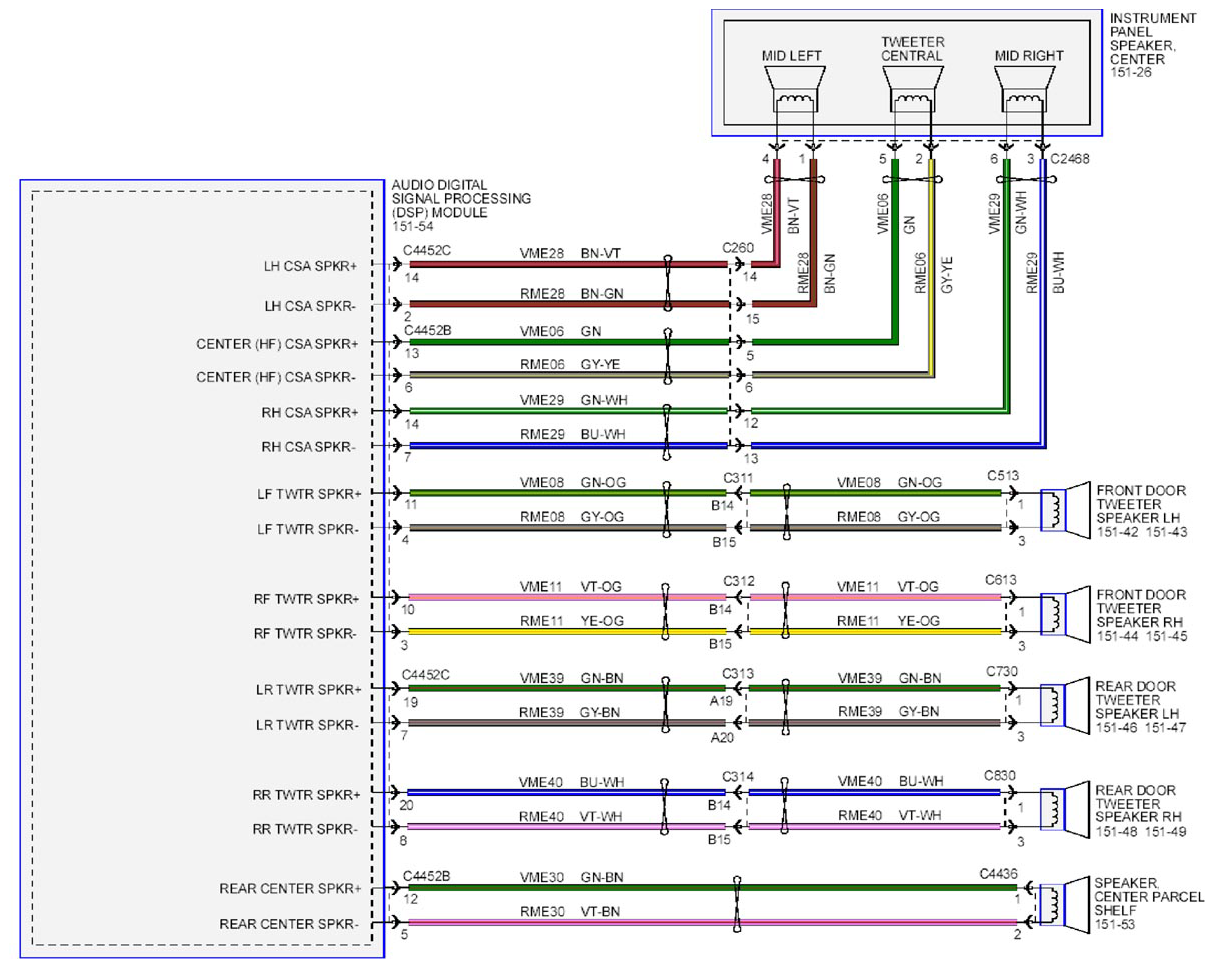

Fig 4: Audio System Navigation Thx® Audio - Wiring Diagram (4 Of 4)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
