Fusion Titanium, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams -- (Except Hybrid)
>>
Audio System/Navigation
>>
SONY® Audio
SONY® Audio

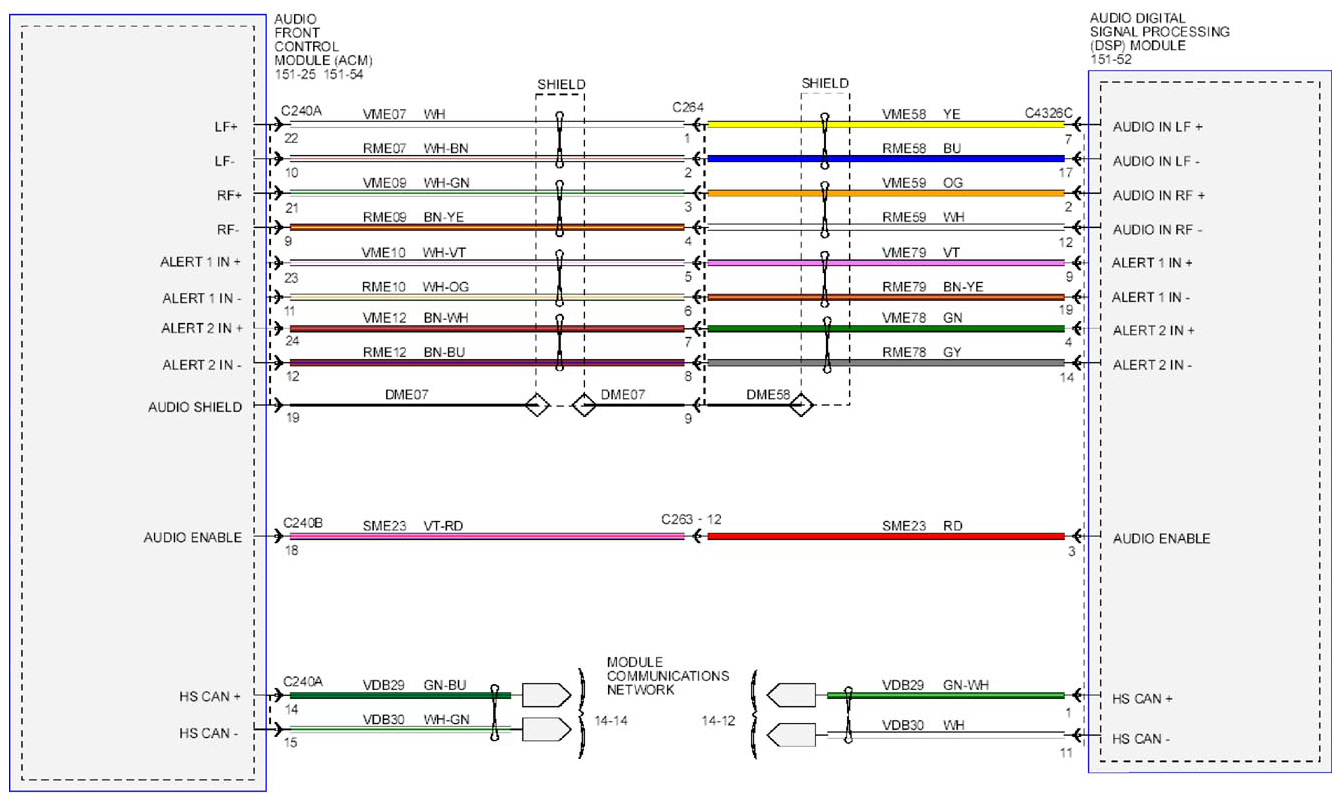

Fig 1: Audio System Navigation Sony® Audio - Wiring Diagram (1 Of 4)
Courtesy of FORD MOTOR CO.

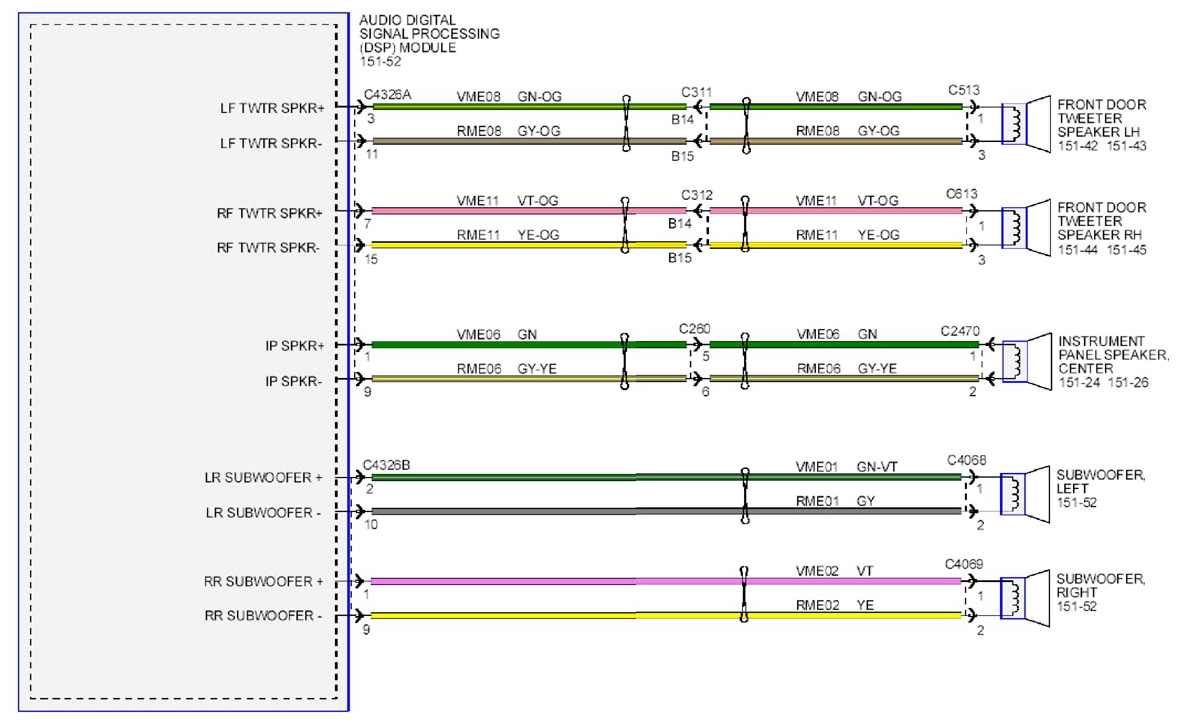

Fig 2: Audio System Navigation Sony® Audio - Wiring Diagram (2 Of 4)
Courtesy of FORD MOTOR CO.

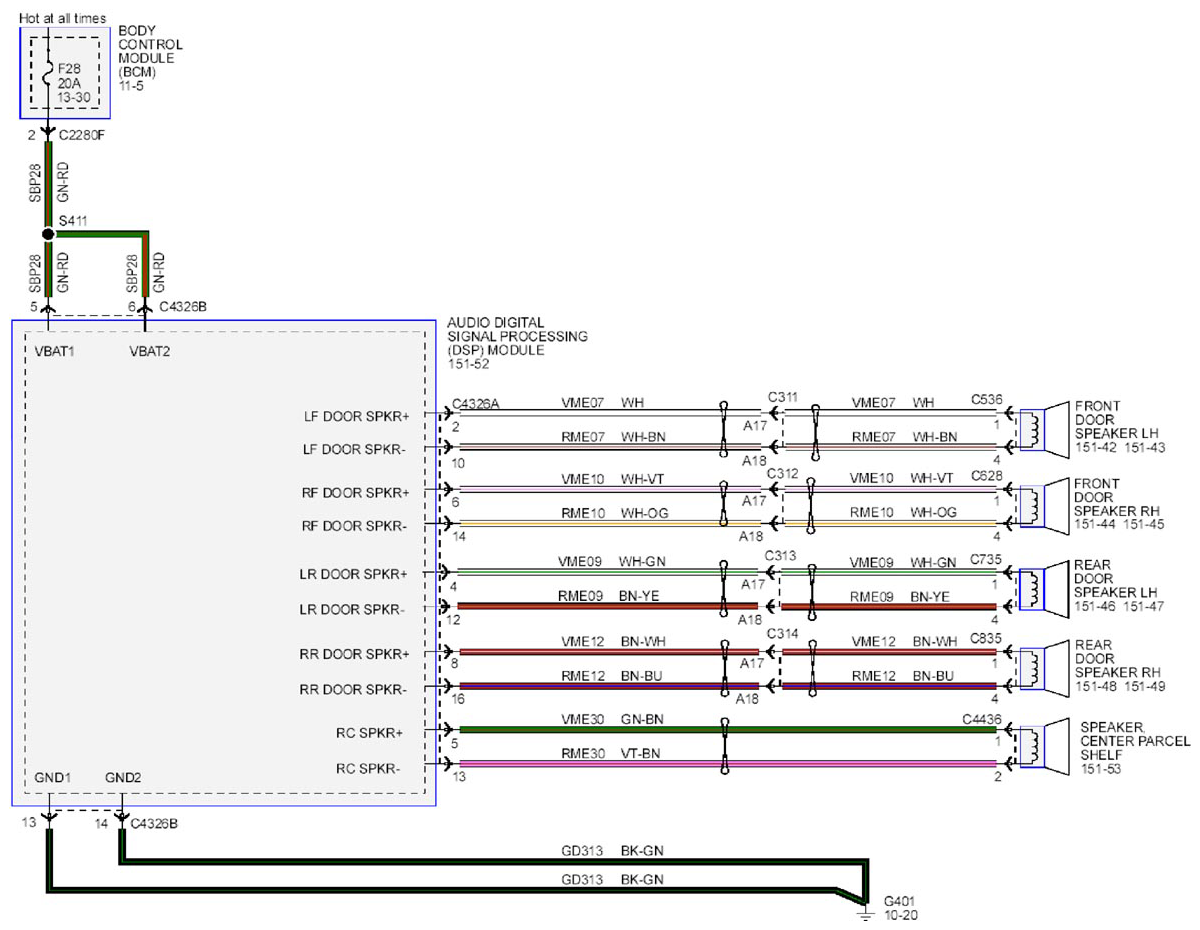

Fig 3: Audio System Navigation Sony® Audio - Wiring Diagram (3 Of 4)
Courtesy of FORD MOTOR CO.

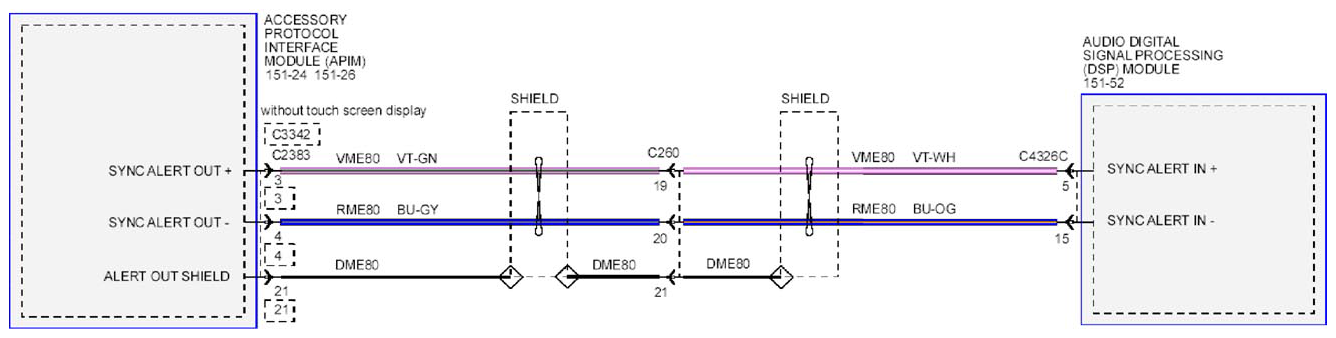

Fig 4: Audio System Navigation Sony® Audio - Wiring Diagram (4 Of 4)
Courtesy of FORD MOTOR CO.
