Mid - Fusion

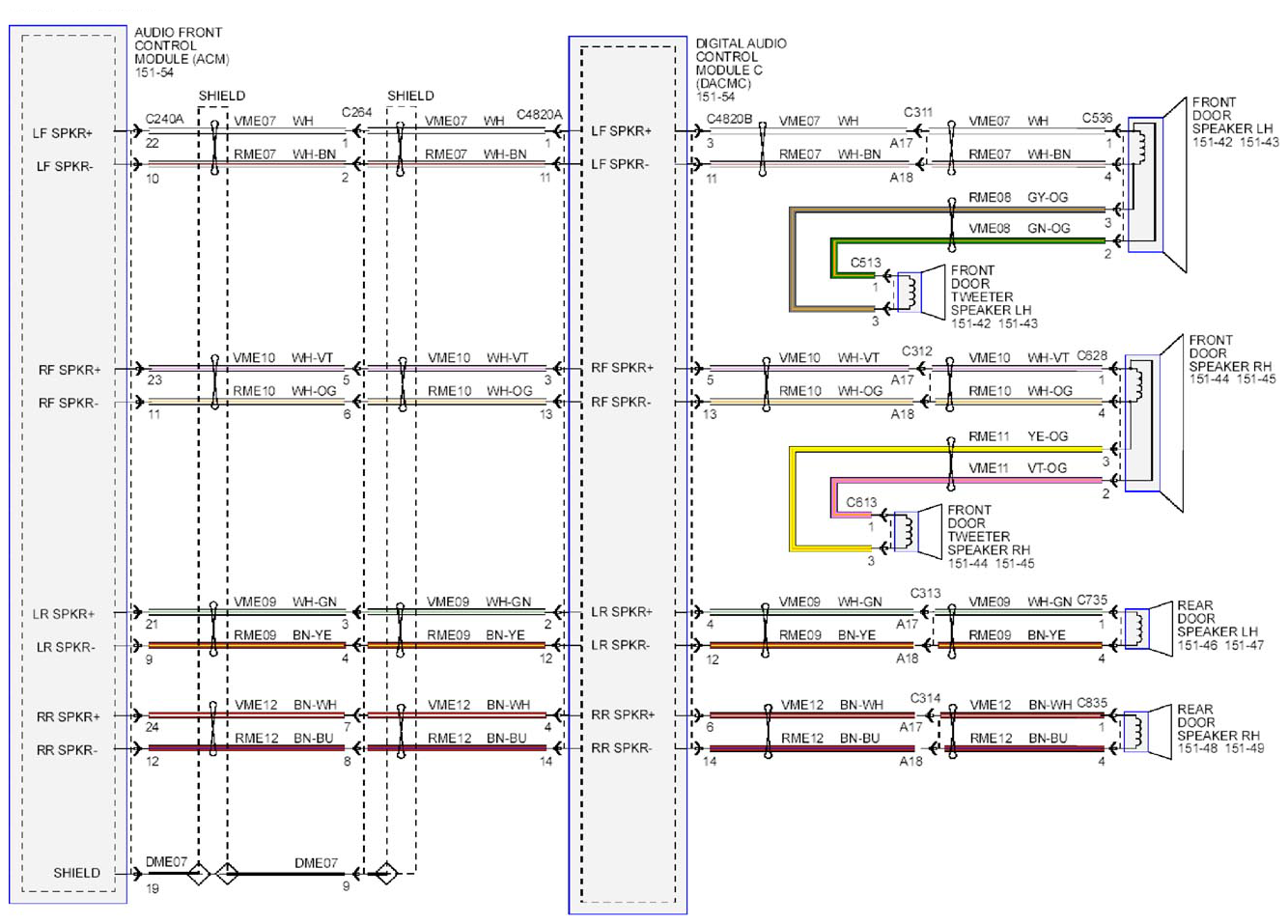

Fig 1: Audio System Navigation MID - Fusion - Wiring Diagram (1 Of 2)
G09264934Courtesy of FORD MOTOR CO.

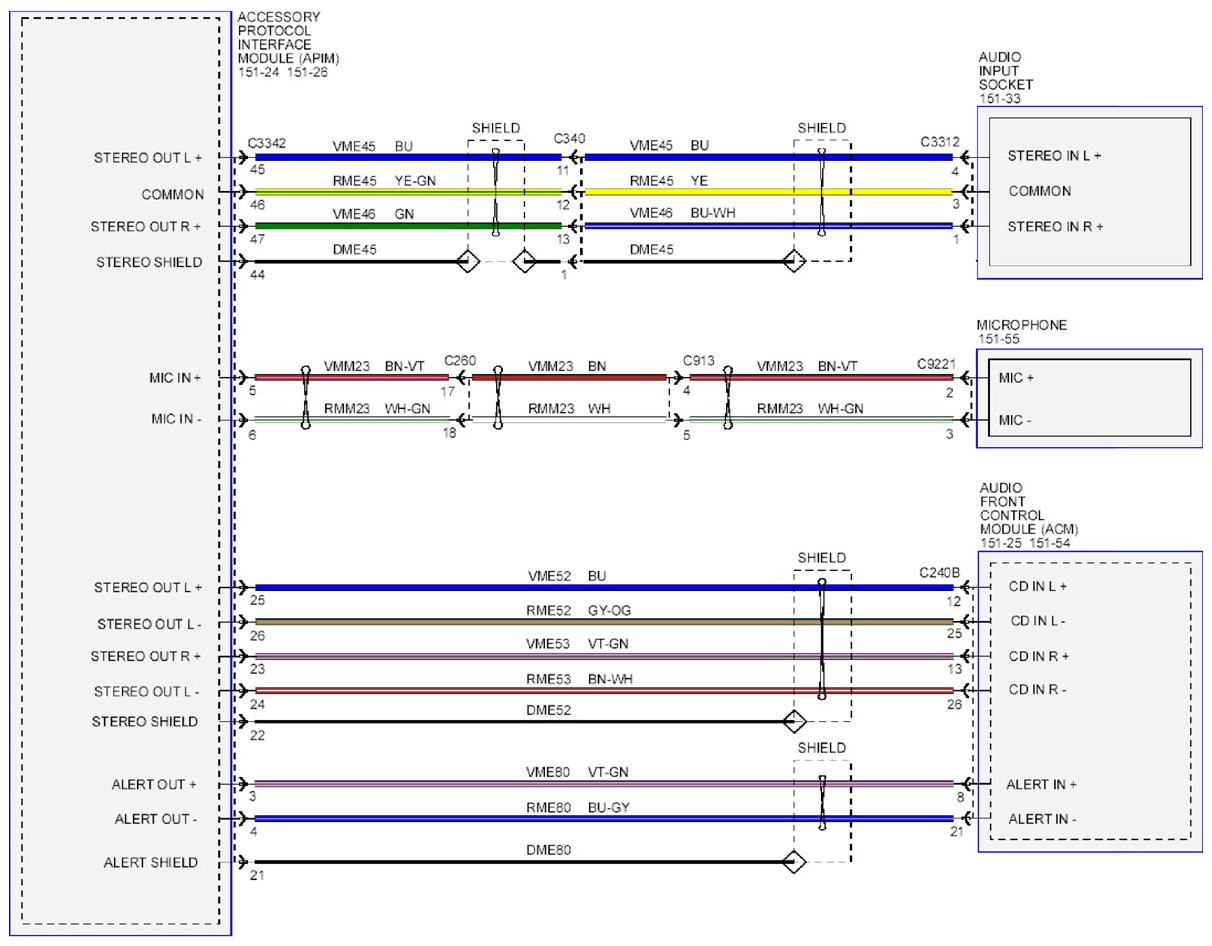

Fig 2: Audio System Navigation MID - Fusion - Wiring Diagram (2 Of 2)
G09264936Courtesy of FORD MOTOR CO.
