Mid - Fusion With Touch Screen Display

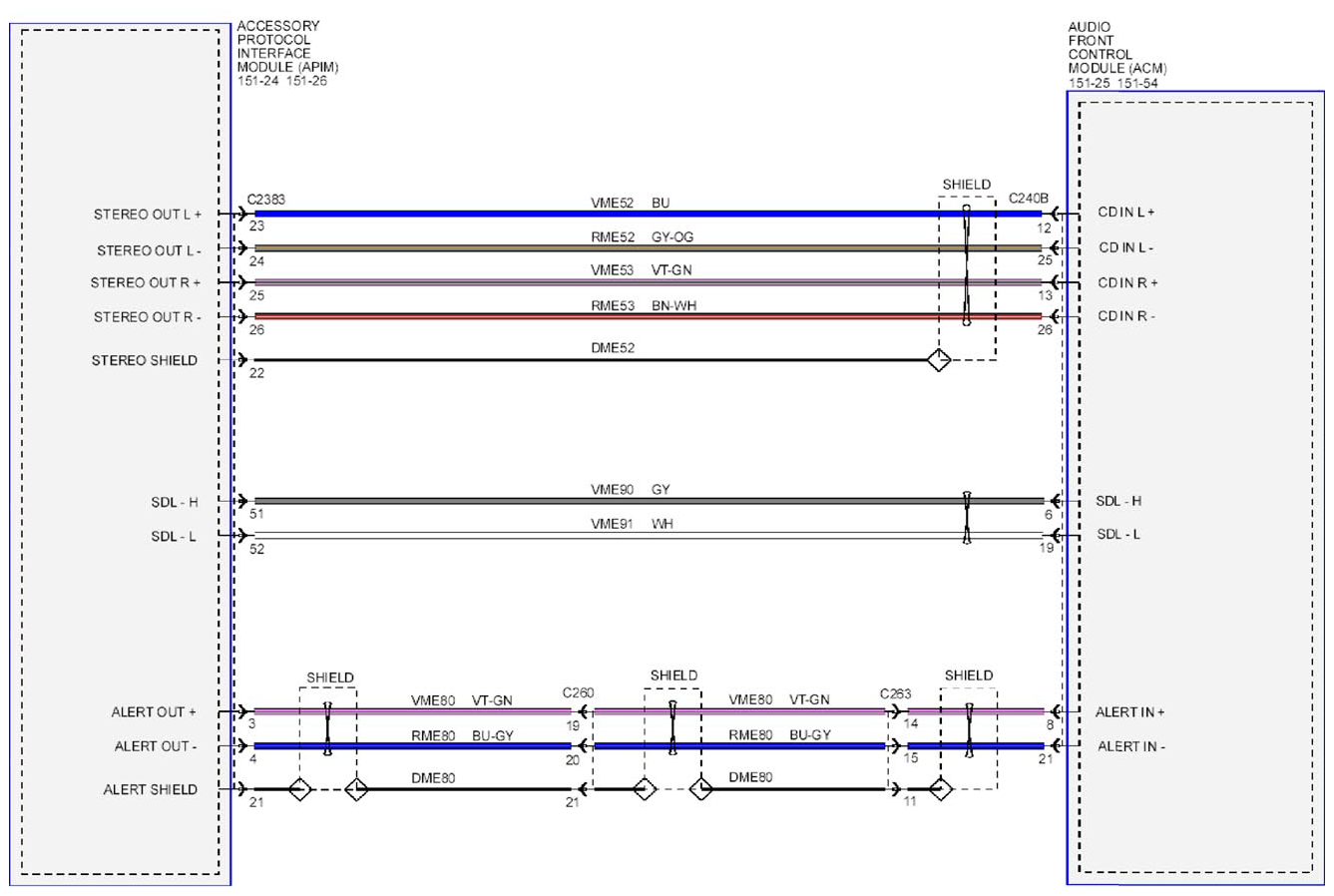

Fig 1: Audio System Navigation MID - Fusion With Touch Screen Display - Wiring Diagram

G09264935

Courtesy of FORD MOTOR CO.
