Fusion Titanium, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams -- (Except Hybrid)
>>
Audio System/Navigation
>>
MKZ
Audio System/Navigation: MKZ

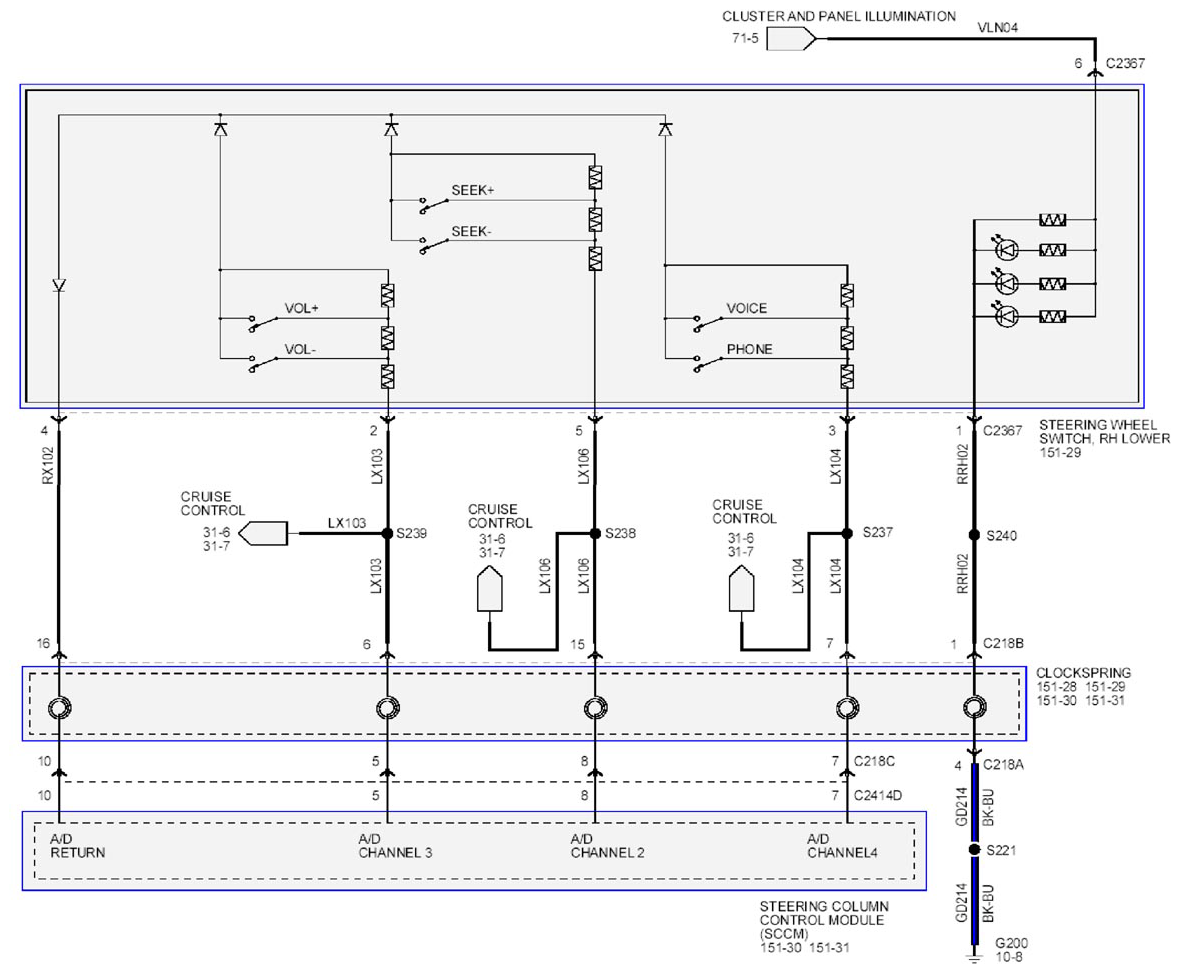

Fig 1: Audio System Navigation - MKZ - Wiring Diagram (1 Of 5)
Courtesy of FORD MOTOR CO.

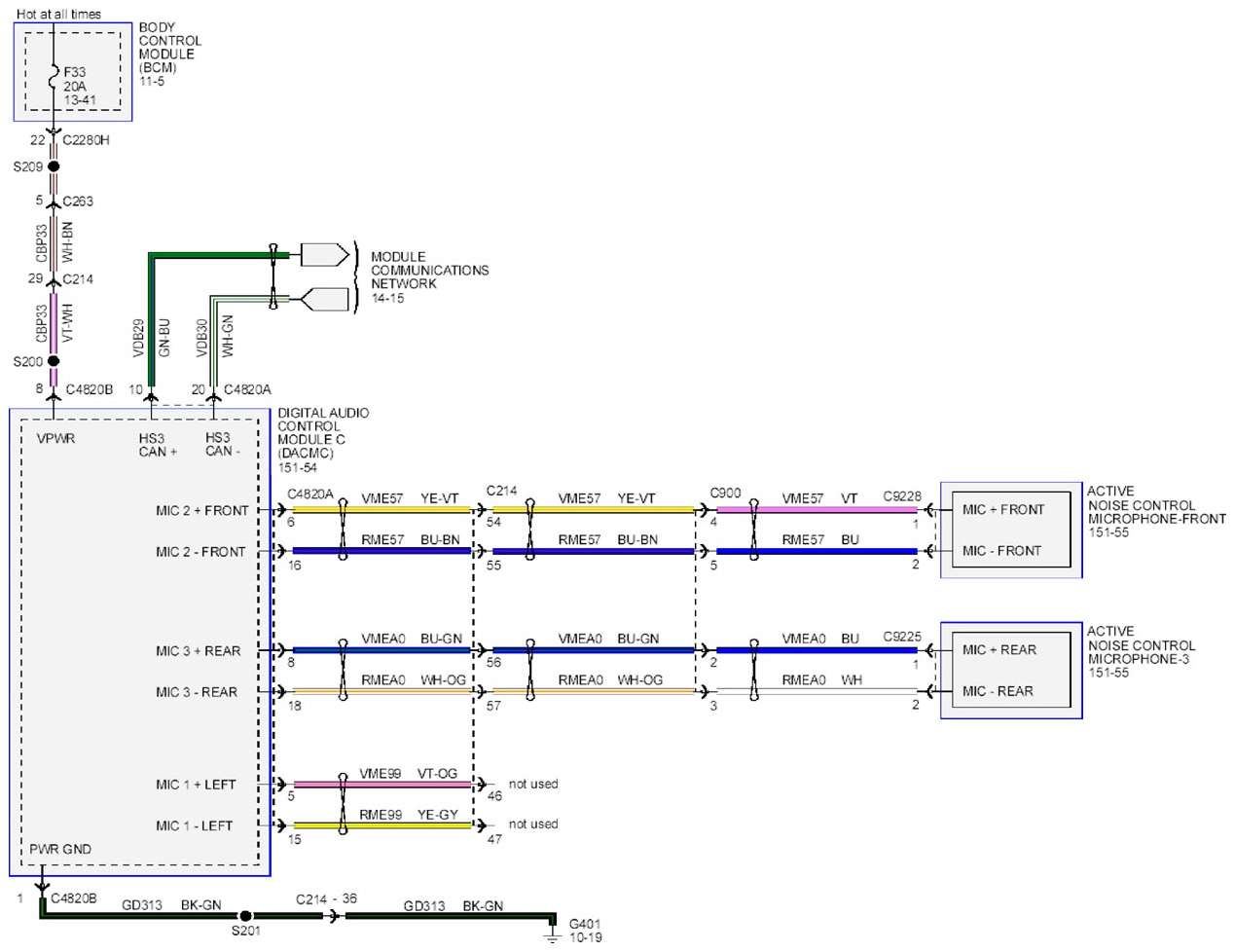

Fig 2: Audio System Navigation MKZ - Wiring Diagram (2 Of 5)
Courtesy of FORD MOTOR CO.

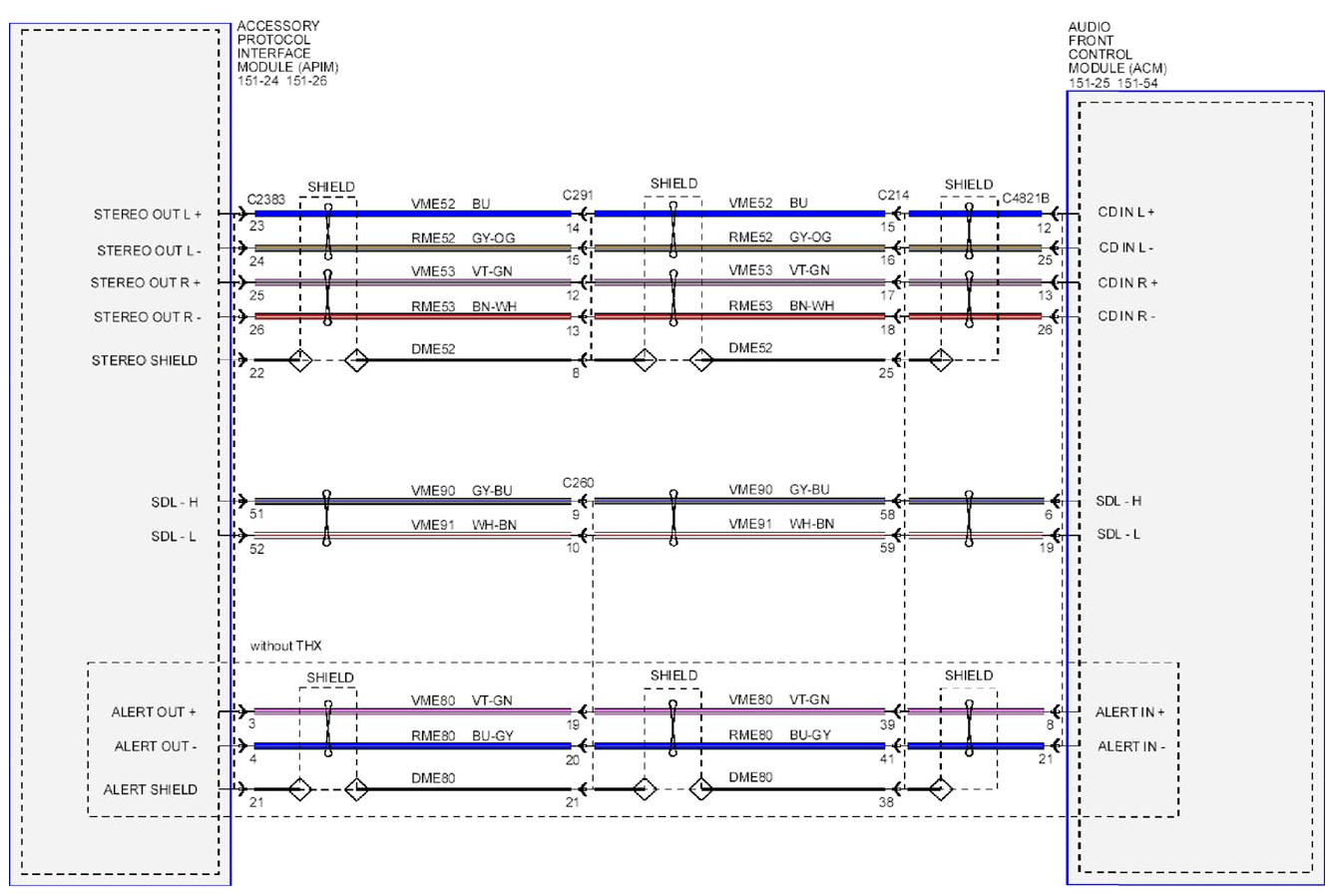

Fig 3: Audio System Navigation MKZ - Wiring Diagram (3 Of 5)
Courtesy of FORD MOTOR CO.

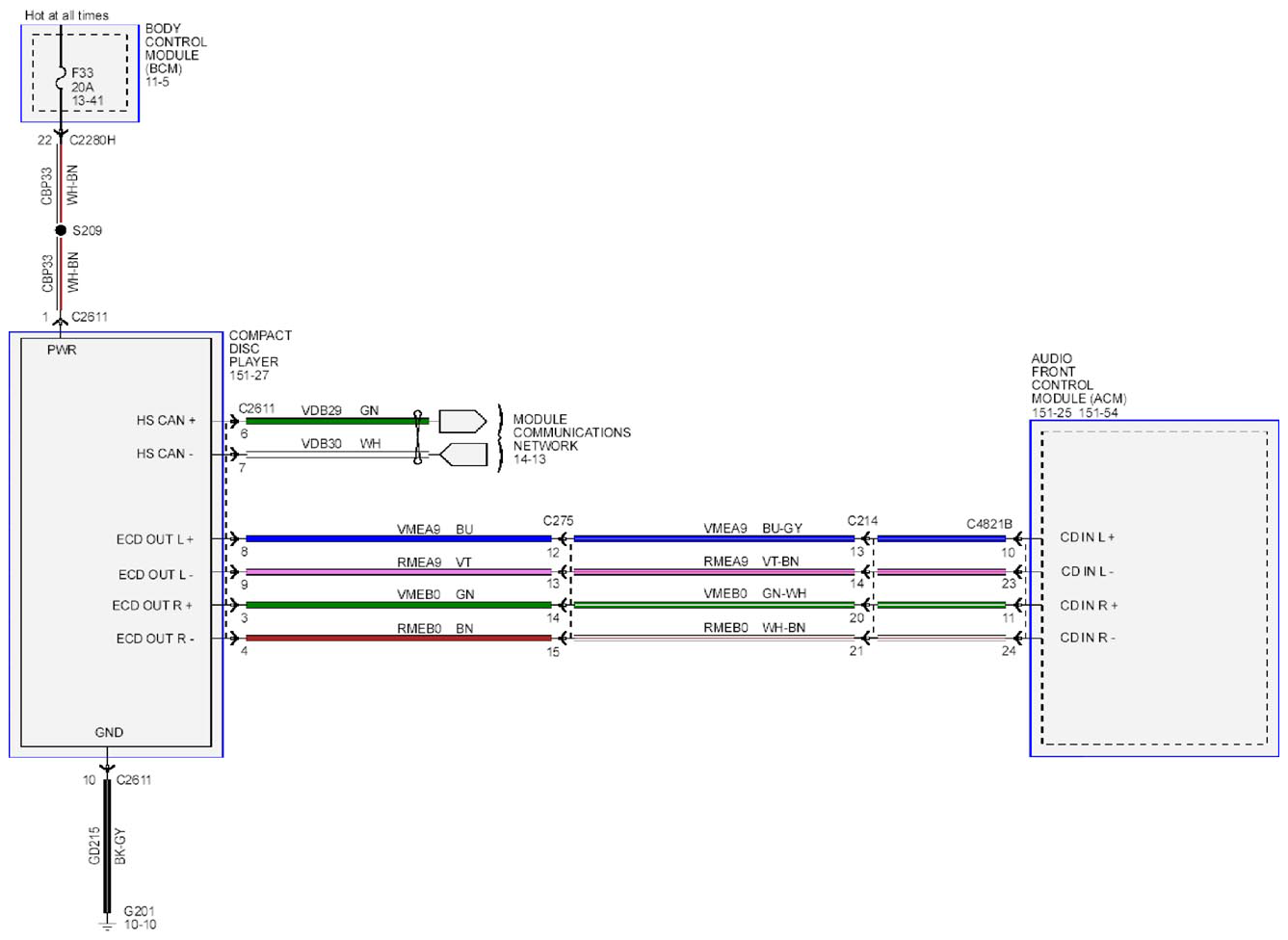

Fig 4: Audio System Navigation - MKZ - Wiring Diagram (4 Of 5)
Courtesy of FORD MOTOR CO.

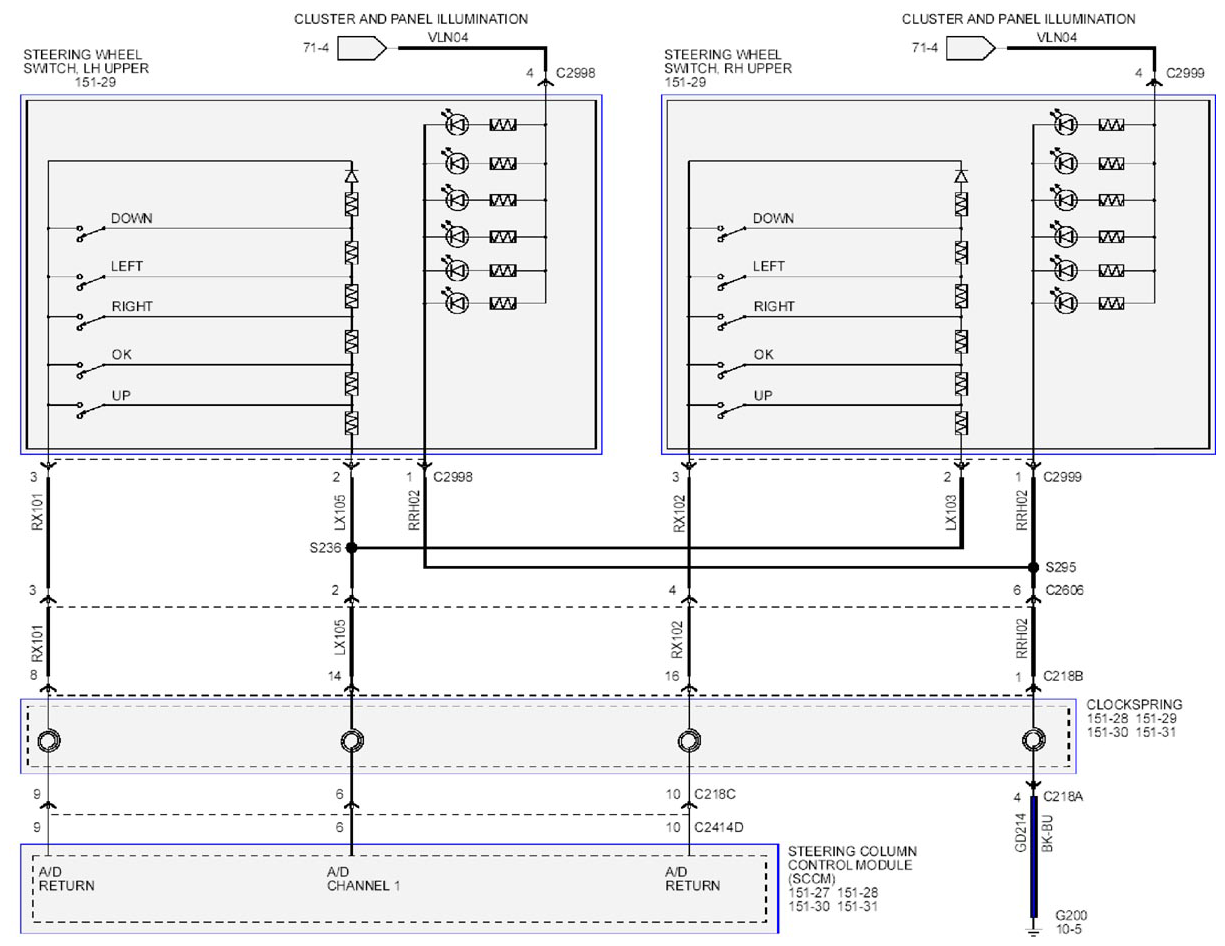

Fig 5: Audio System Navigation - MKZ - Wiring Diagram (5 Of 5)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
