MKZ/Mid Fusion With Touch Screen Display

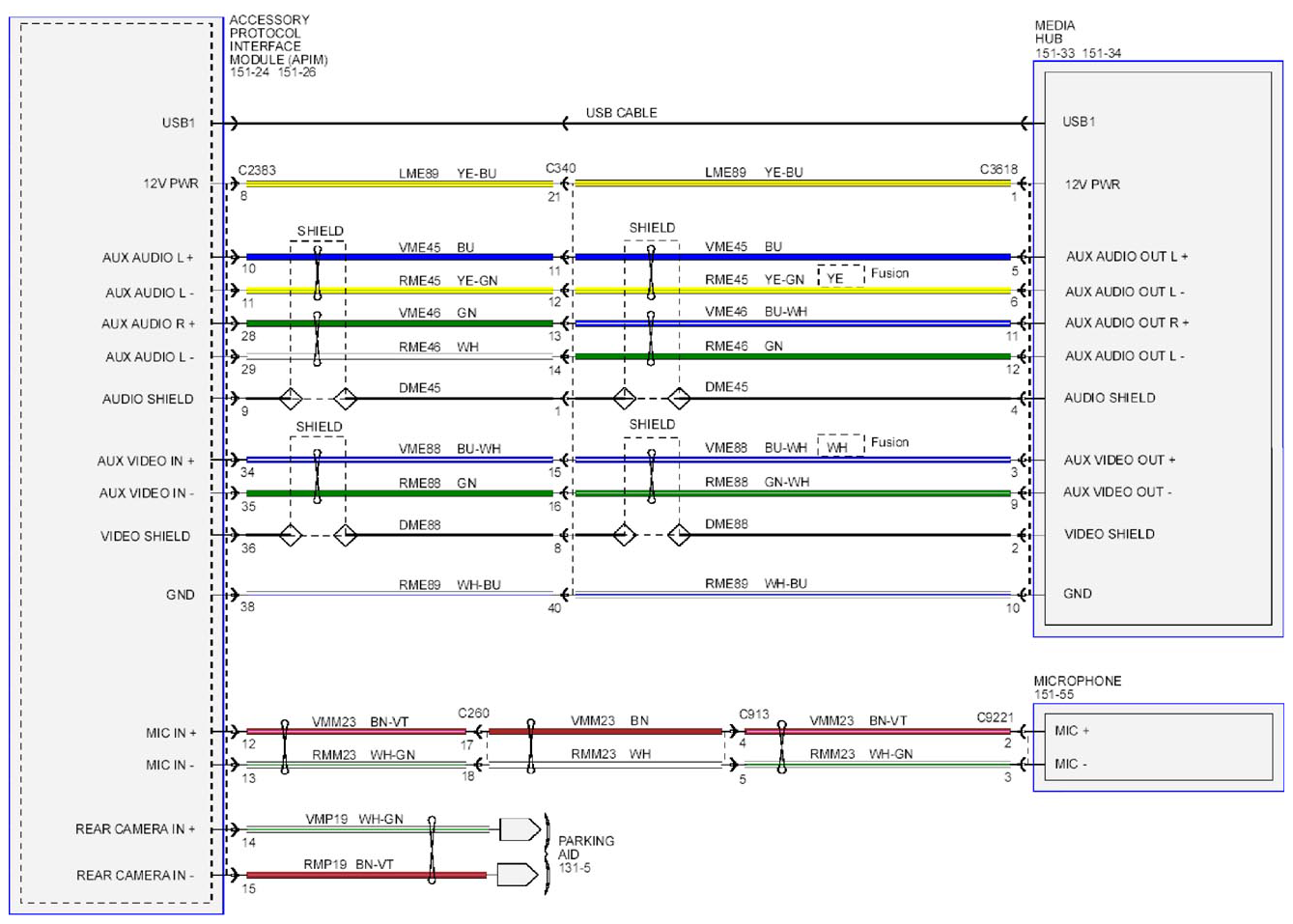

Fig 1: Audio System Navigation MKZ/MID Fusion With Touch Screen Display - Wiring Diagram

G09264937

Courtesy of FORD MOTOR CO.
