Audio System/Navigation: MKZ/DECKLID

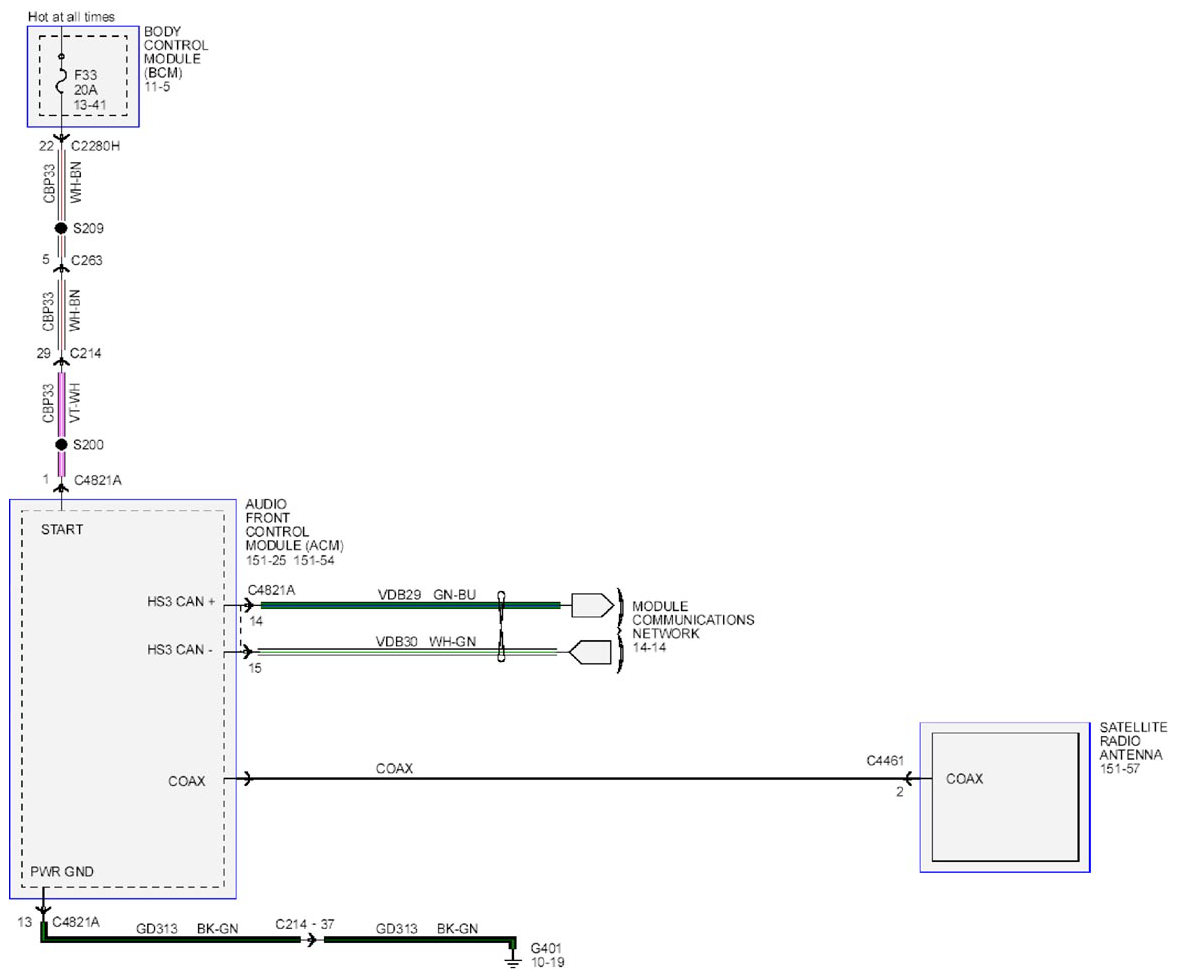

Fig 1: Audio System Navigation - MKZ/Decklid - Wiring Diagram

G09264925

Courtesy of FORD MOTOR CO.
