Audio System/Navigation: Fusion/MKZ

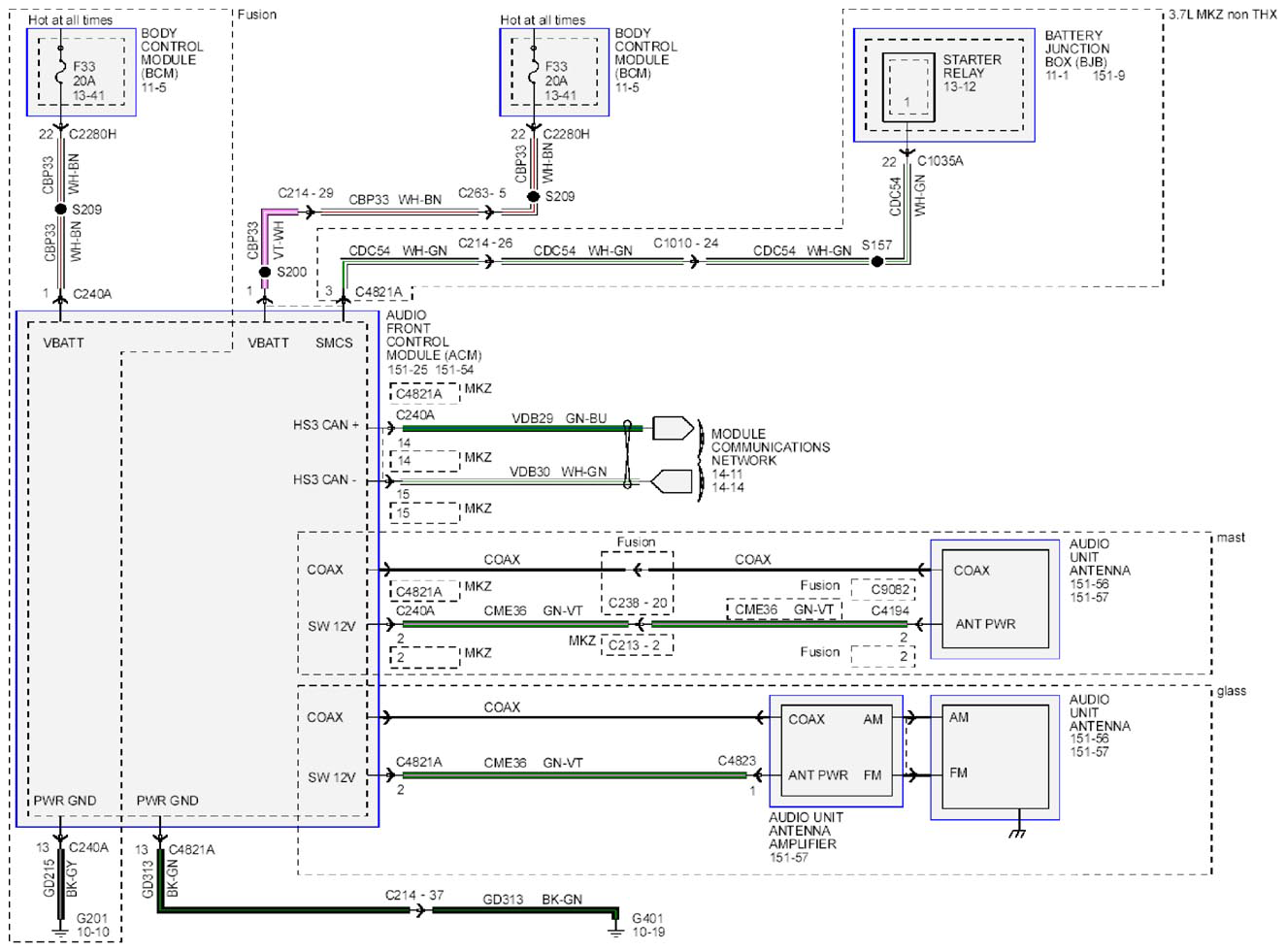

Fig 1: Audio System Navigation - Fusion/MKZ - Wiring Diagram

G09264924

Courtesy of FORD MOTOR CO.
