Base - MKZ

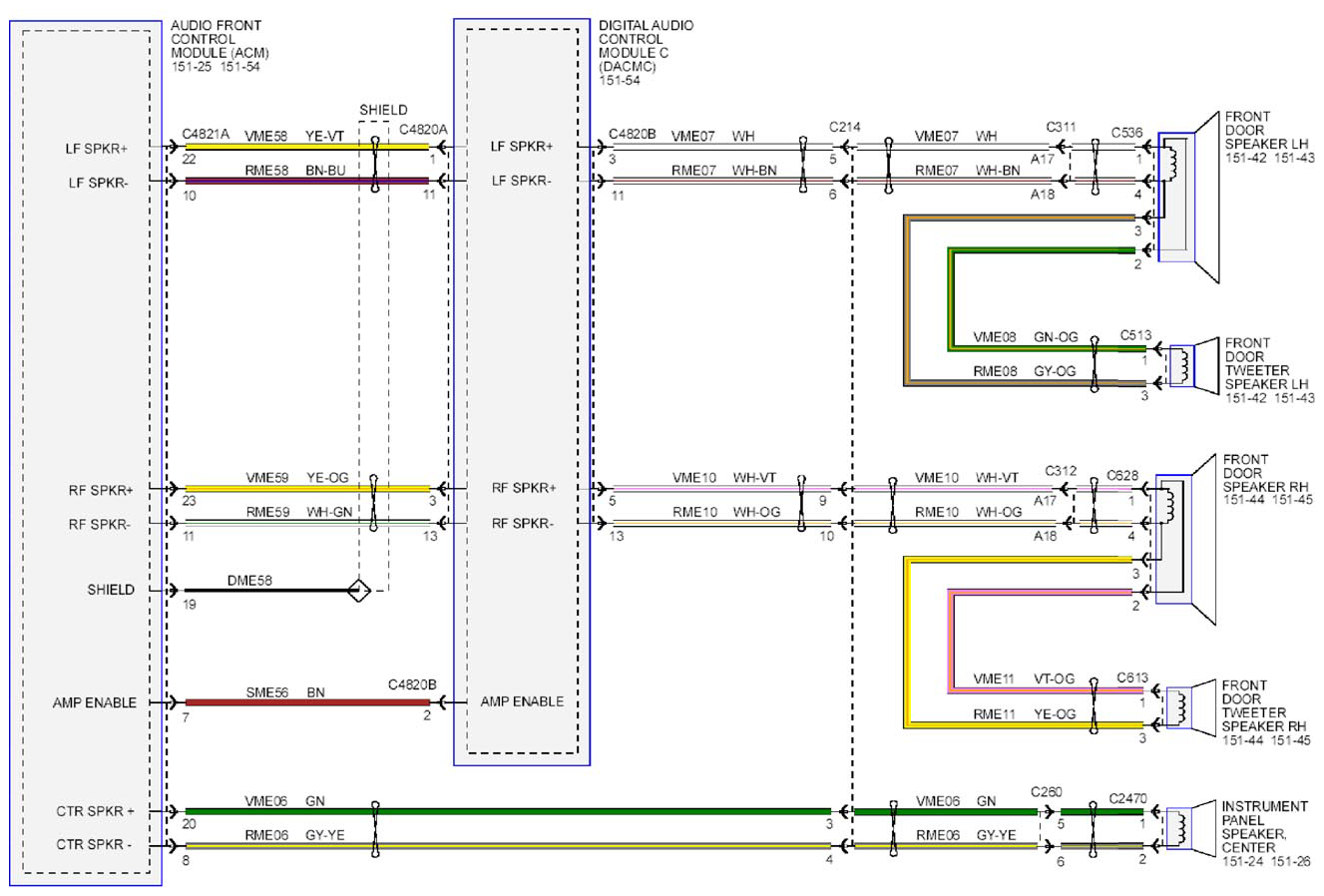

Fig 1: Audio System Navigation Base - MKZ - Wiring Diagram (1 Of 3)
G09264929Courtesy of FORD MOTOR CO.

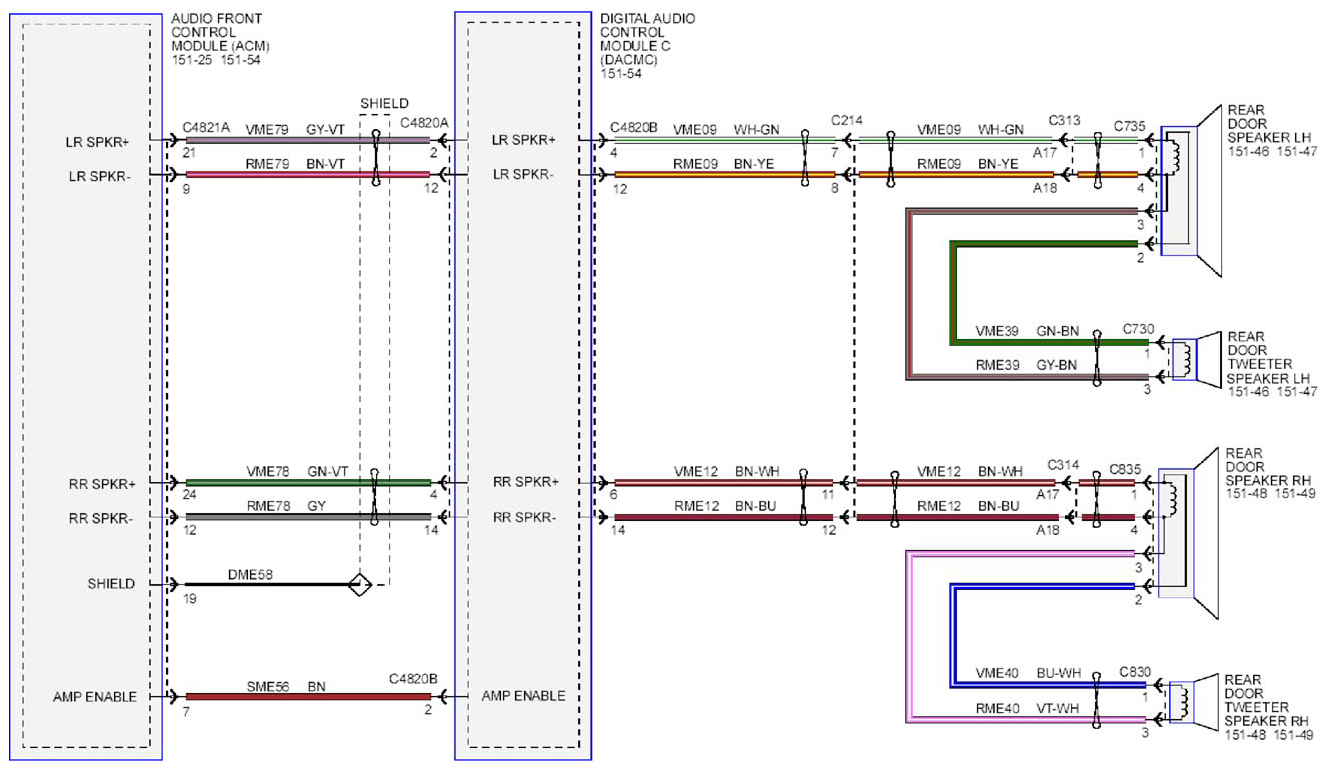

Fig 2: Audio System Navigation Base - MKZ - Wiring Diagram (2 Of 3)
G09264930Courtesy of FORD MOTOR CO.

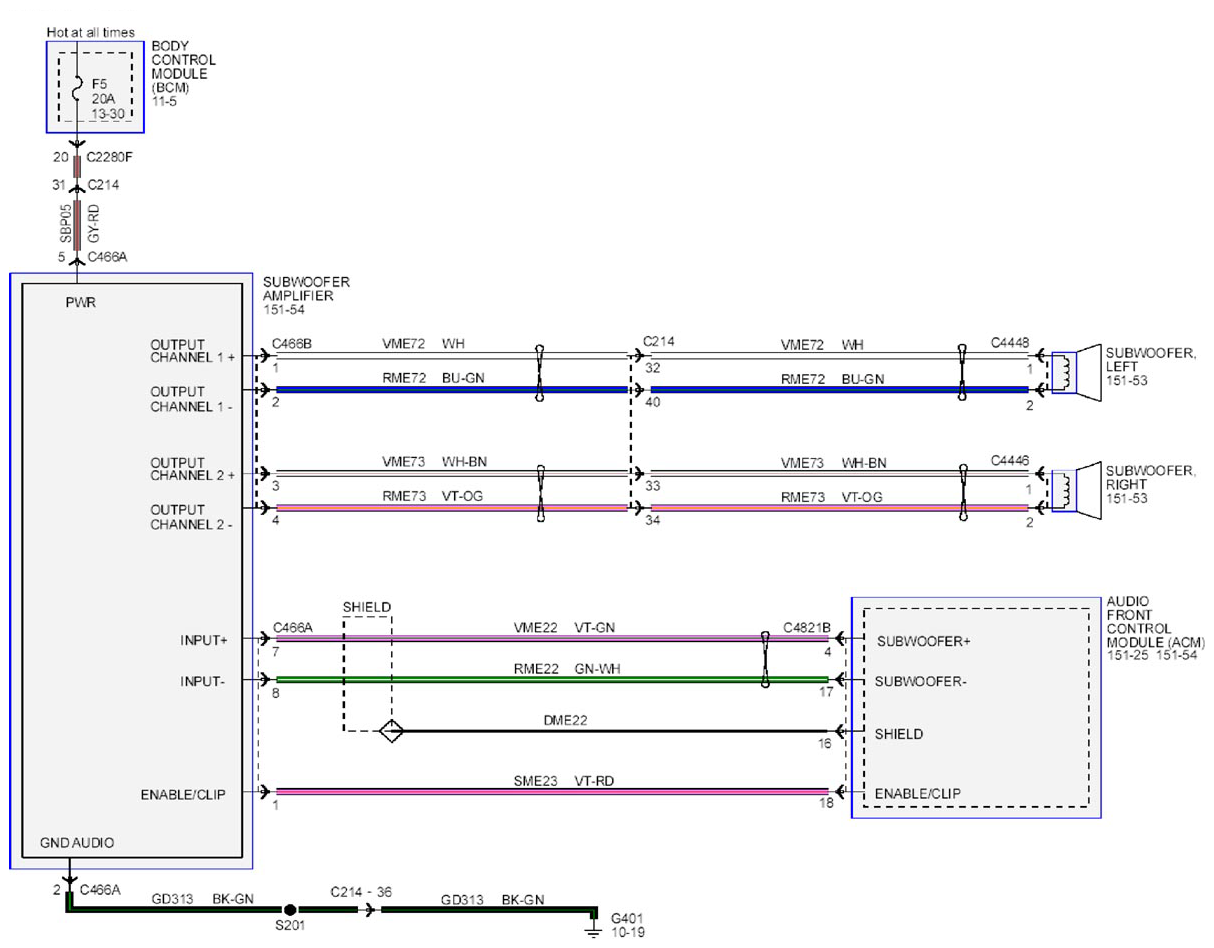

Fig 3: Audio System Navigation Base - MKZ - Wiring Diagram (3 Of 3)
G09264931Courtesy of FORD MOTOR CO.
