All Wheel Drive (AWD)

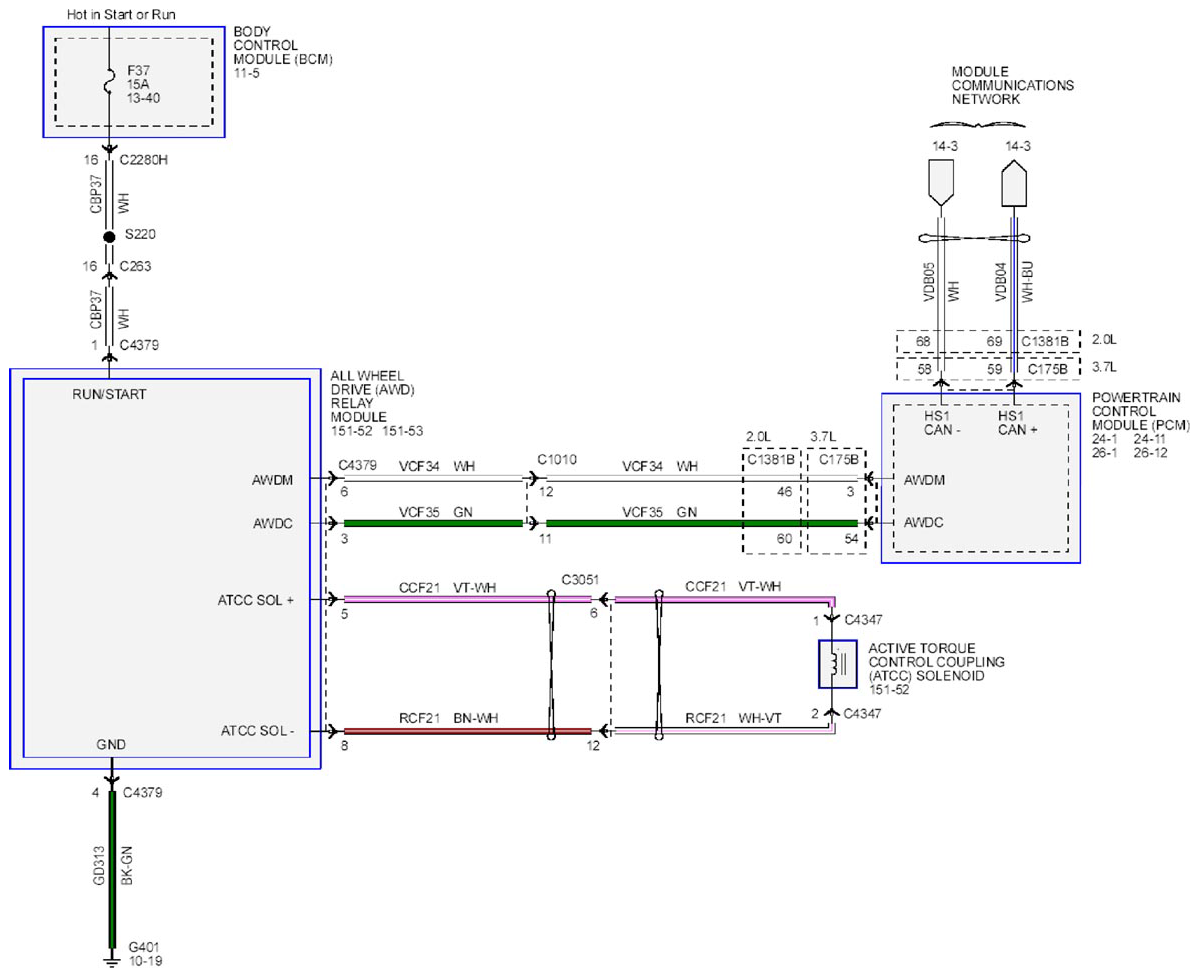

Fig 1: All Wheel Drive - Wiring Diagram

G09264773

Courtesy of FORD MOTOR CO.
