Variable Camshaft Timing 11 (VCT11) Solenoid Connector End View (C1451)

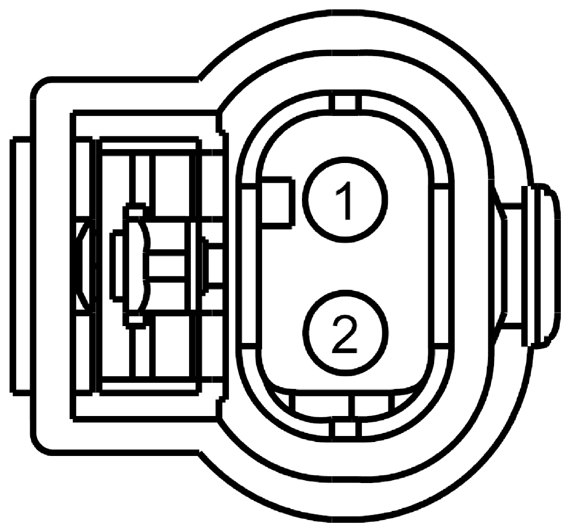

Fig 1: Identifying Variable Camshaft Timing 11 Solenoid Connector (C1451)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBK02 (GN)	18	FUSE - 2 OR CIRCUIT BREAKER (VPWR)	3.7L
2	CE421 (VT)	18	CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING 11 (VCT11)	3.7L

Available Pigtail Kits

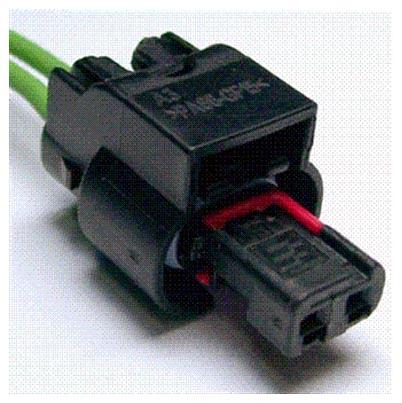

Pigtail Kit Part Number WPT-1251	Service Part Number: CU2Z-14S411-DA  Gauge: 18  Pin material: Silver  Cavities: 2  Vehicle Uses Solenoid - Engine Variable Timing
