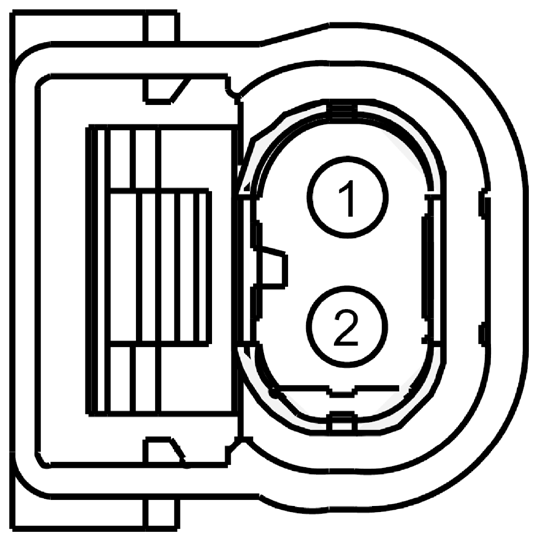

Turbocharger Bypass Valve (TCBY) Connector End View (C1584)

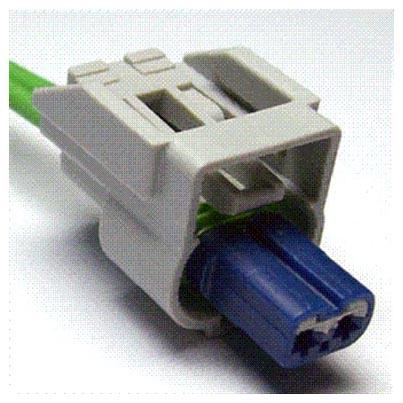

Fig 1: Identifying Turbocharger Bypass Valve Connector (C1584)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBK03 (GY)	18	FUSE - 3 OR CIRCUIT BREAKER (VPWR 3)	1.6L
1	CBK03 (GY)	20	FUSE - 3 OR CIRCUIT BREAKER (VPWR 3)	1.5L
2	VE836 (VT-GN)	20	CTRL MOD. - POWERTRAIN # ENGINE TURBOCHARGER BYPASS VALVE (TCBY)

Available Pigtail Kits
Pigtail Kit Part Number WPT-1303	Service Part Number: CU2Z-14S411-ATA  Gauge: 16  Pin material: Silver  Cavities: 2  Vehicle Uses Solenoid - Turbo Charger Bypass
