Turbocharger Boost Pressure/Charge Air Cooler Temperature (TCBP/CACT) Sensor Connector End View (C1588)

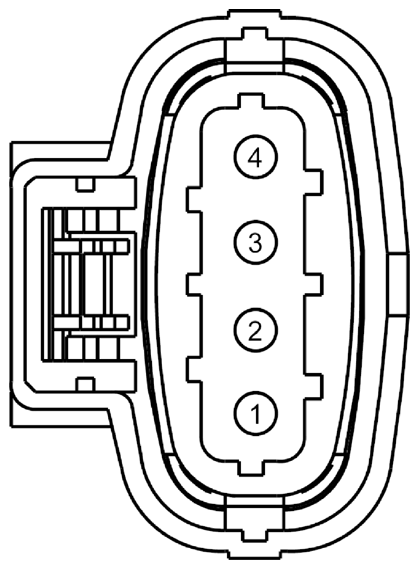

Fig 1: Identifying Turbocharger Boost Pressure/Charge Air Cooler Temperature Sensor Connector (C1588)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | RE407 (YE) | 18 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (SIGRTN) | 2.0L |
| 2 | LE424 (YE-GN) | 18 | CTRL MOD. - POWERTRAIN # CHARGE AIR COOLER TEMPERATURE (CACT) | 2.0L |
| 3 | LE423 (GN) | 18 | REFERENCE VOLTAGE (VREF) | 2.0L |
| 4 | VE805 (GY-OG) | 18 | CTRL MOD. - POWERTRAIN # TURBOCHARGER BOOST PRESSURE (TCBP) | 2.0L |
| Available Pigtail Kits | |
|---|---|

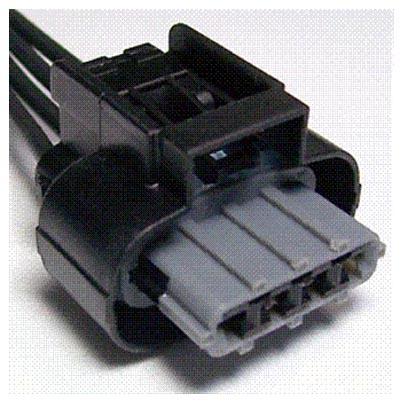

| Pigtail Kit Part Number WPT-1232 | Service Part Number: BU2Z-14S411-ATA Gauge: 14 Pin material: Tin (greased) Cavities: 4 Vehicle Uses
|
