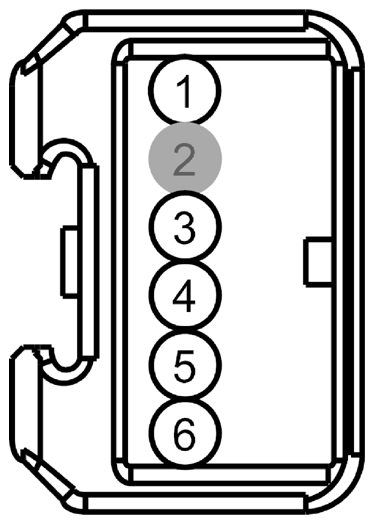

Rain Sensor Module Connector End View (C914)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | RRD19 (BN-VT) | 22 | MIRROR - ELECTROCHROMIC REAR VIEW # EXTERIOR MIRROR ACTUATE - | |
| 2 | * | * | Not Used | |
| 3 | CRD19 (VT-WH) | 22 | MIRROR - ELECTROCHROMIC REAR VIEW # EXTERIOR MIRROR ACTUATE + | |
| 4 | CRW13 (GN) | 20 | SWITCH - REAR WIPER | |
| 5 | VDN05 (YE-GY) | 22 | CTRL MOD. - LIN BUS # STEERING WHEEL CONTROL MODULE 1 | MKZ |
| 5 | VDN05 (YE) | 22 | CTRL MOD. - LIN BUS # STEERING WHEEL CONTROL MODULE 1 | Fusion |
| 6 | GD383 (BK-WH) | 22 | GROUND - CROSS MEMBER MIDDLE PASSENGER OR RIGHT |
