Power Steering Control Module (PSCM) Connector End View (C1463A)

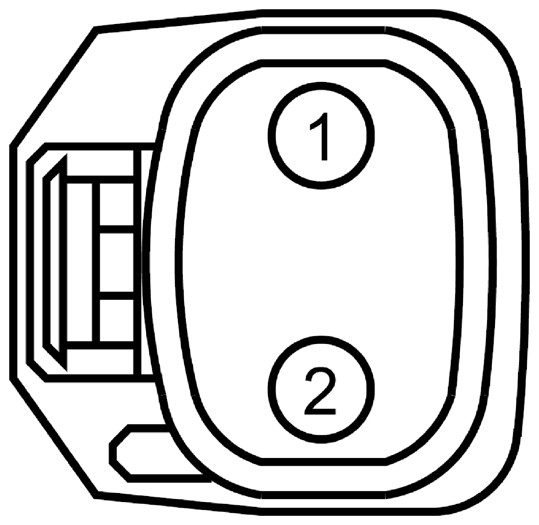

Fig 1: Identifying Power Steering Control Module Connector (C1463A)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD192 (BK-VT)	10.0	GROUND - FENDER FRONT LEFT # 5TH POINT
2	SBF06 (GN-RD)	10.0	FUSE - 6
2	SBF06 (BN-RD)	10.0	FUSE - 6	1.6L/2.0L/3.7L
