Manifold Absolute Pressure (Map) Sensor Connector End View (C1140)

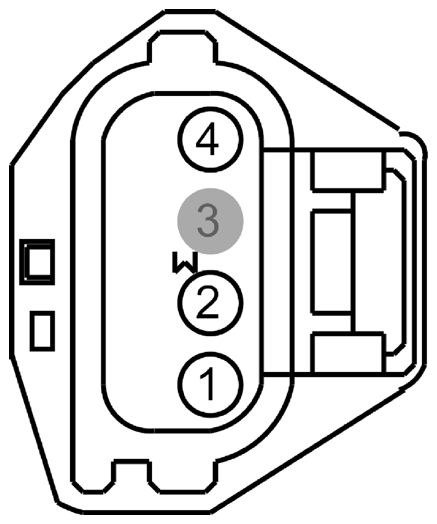

Fig 1: Identifying Manifold Absolute Pressure Sensor Connector (C1140)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VE803 (BU-GN)	20	SENSOR - MANIFOLD ABSOLUTE PRESSURE (MAP)	2.5L
2	LE423 (GN-VT)	20	REFERENCE VOLTAGE (VREF)	2.5L
3	*	*	Not Used	2.5L
4	RE405 (GN-WH)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN)	2.5L

Available Pigtail Kits

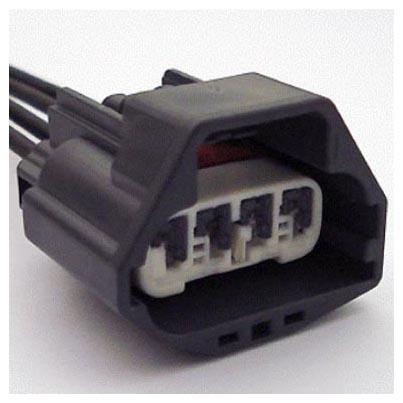

Pigtail Kit Part Number WPT-992	Service Part Number: 3U2Z-14S411-UB  Gauge: 14  Pin material: Tin (greased)  Cavities: 4  Vehicle Uses Motor - Electronic Throttle Control (ETC) Sensor - Fuel Rail Temperature Sensor - Fuel Tank Pressure Transducer Sensor - Manifold Absolute Pressure (MAP) Sensor - Manifold Pressure/Intake Temperature Sensor - Throttle Position

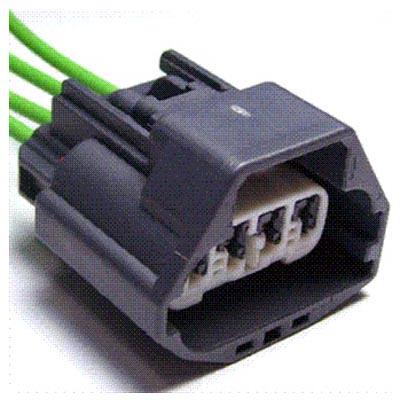

Pigtail Kit Part Number WPT-1293	Service Part Number: 3U2Z-14S411-UC  Gauge: 16  Pin material: Silver  Cavities: 4  Vehicle Uses Control - Electronic Throttle Sensor - Fuel Rail Temperature Sensor - Fuel Tank Pressure Transducer Sensor - Manifold Absolute Pressure (MAP) Sensor - Manifold Pressure/Intake Temperature Sensor - Throttle Position
