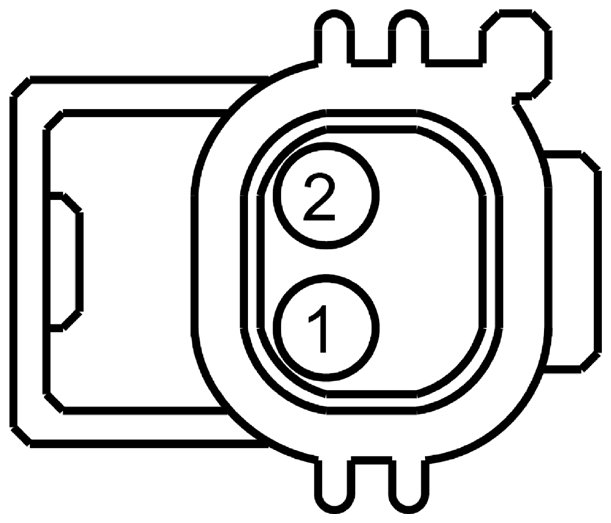

Knock Sensor (KS) Connector End View (C1512)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | RE323 (WH-BN) | 20 | CTRL MOD. - POWERTRAIN # KNOCK SENSOR 1ST BANK 1ST OR UNIQUE (KS1-) | |
| 2 | VE801 (VT-OG) | 20 | SENSOR - KNOCK 1ST BANK 1ST OR UNIQUE (KS1+) |
| Available Pigtail Kits | |
|---|---|

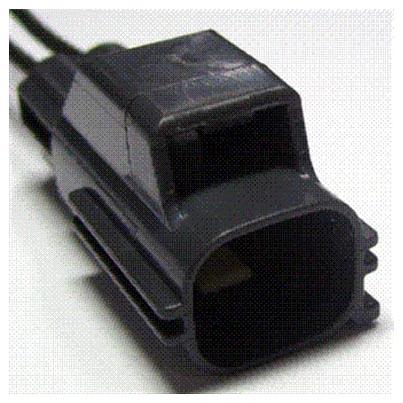

| Pigtail Kit Part Number WPT-987 | Service Part Number: 3U2Z-14S411-CZAB Gauge: 16 Pin material: Tin (greased) Cavities: 2 Vehicle Uses
|

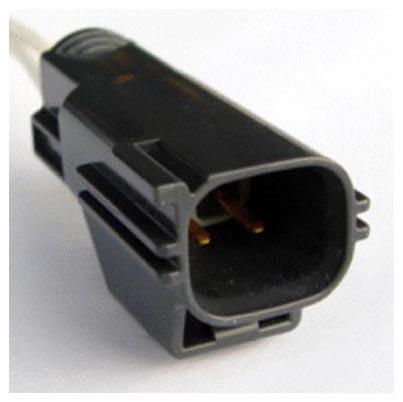

| Pigtail Kit Part Number WPT-418 | Service Part Number: 3U2Z-14S411-JA Gauge: 16 Pin material: Gold Cavities: 2 Vehicle Uses
|

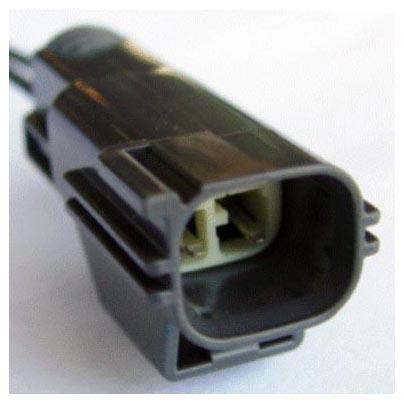

| Pigtail Kit Part Number WPT-707 | Service Part Number: 3U2Z-14S411-CZAA Gauge: 18 Pin material: Tin Cavities: 2 Vehicle Uses
|
