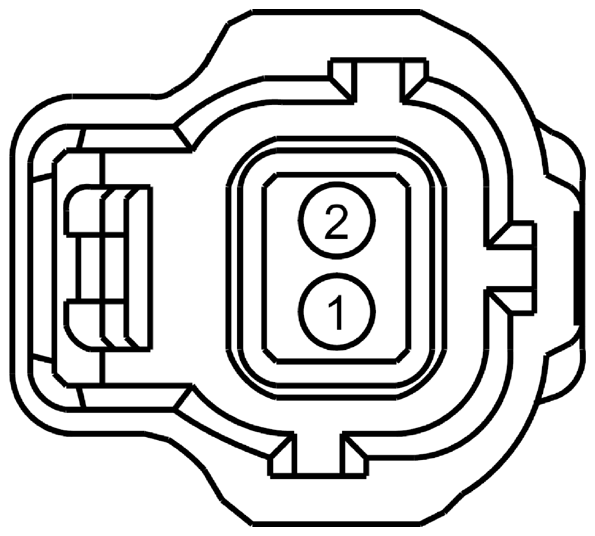

Intake Air Temperature (IAT) Sensor Connector End View (C1287)

Fig 1: Identifying Intake Air Temperature Sensor Connector (C1287)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VE740 (VT-GY)	20	SENSOR - INTAKE AIR TEMPERATURE (IAT)
2	RE320 (BU)	20	CTRL MOD. - POWERTRAIN # INTAKE AIR TEMP. SENSOR (SIGRTN)	1.5L
2	RE332 (YE-BU)	20	CTRL MOD. - POWERTRAIN # INTAKE AIR TEMP. SENSOR (SIGRTN)	2.0L

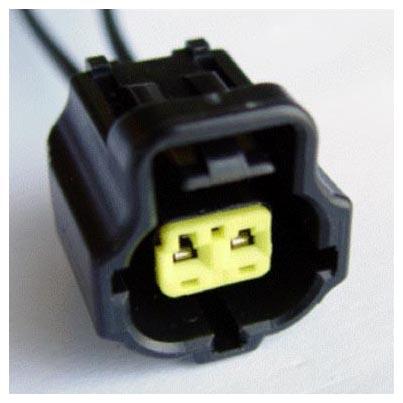

Available Pigtail Kits
Pigtail Kit Part Number WPT-322	Service Part Number: 3U2Z-14S411-JZA  Gauge: 14  Pin material: Tin (greased)  Cavities: 2  Vehicle Uses Resistor - Daytime Running Lamp (DRL) Sensor - Air Charge Temperature Sensor - Brake Pressure Solenoid - Canister Vent Switch - Brake Pressure
