Inline Connector End View (C922)

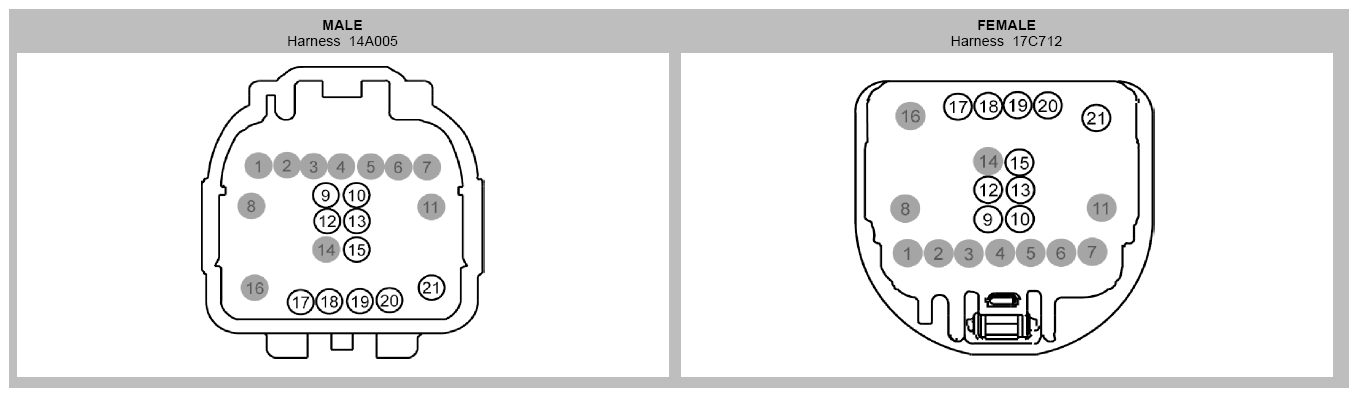

Fig 1: Identifying Inline Connector (C922)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Qualifier
1	*	*
2	*	*
3	*	*
4	*	*
5	*	*
6	*	*
7	*	*
8	*	*
9	CPR86 (GY-BN)	22
10	CPR31 (VT-BN)	22
11	*	*
12	CPR87 (VT)	20	14A005
12	CPR87 (VT)	22
13	CPR38 (WH-BU)	22
14	*	*
15	CPR40 (YE-OG)	22
16	*	*	14A005
16	*	*	17C712
17	VDB25 (GN)	26
17	VDB25 (GN-OG)	22	17C712
18	VDB26 (GY)	26
18	VDB26 (GY-BU)	22	17C712
19	VDB25 (GN)	26
19	VDB25 (GN-OG)	22	17C712
20	VDB26 (GY)	26
20	VDB26 (GY-BU)	22	17C712
21	GD383 (BK-WH)	20
