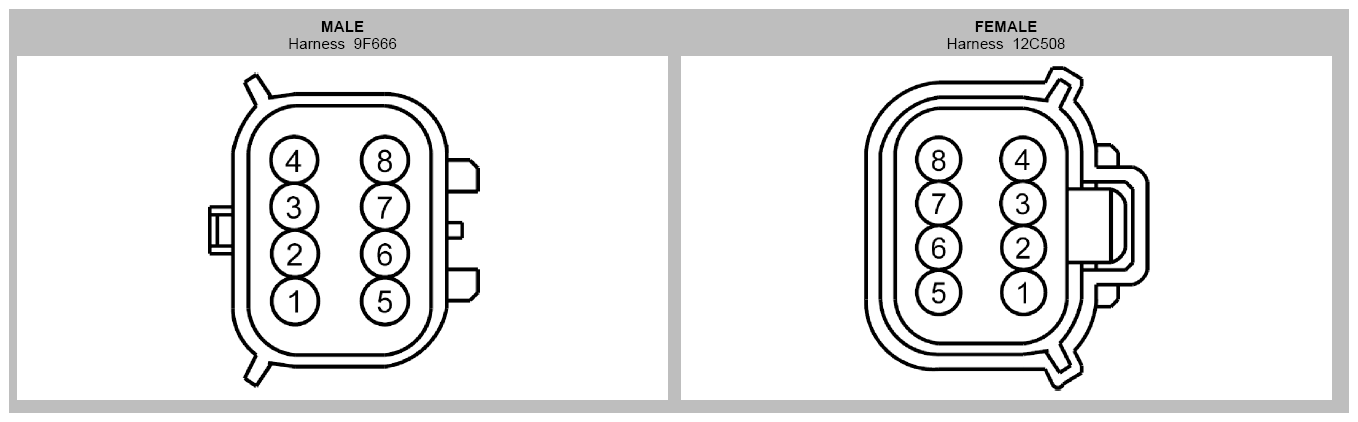

Inline Connector End View (C1045)
| Pin | Circuit | Gauge | Qualifier |
|---|---|---|---|
| 1 | RE205 (YE-BU) | 14 | 12C508 |
| 1 | RE205 (YE-BU) | 20 | 9F666 |
| 2 | CE205 (GN-BU) | 14 | 12C508 |
| 2 | CE205 (GN-BU) | 20 | 9F666 |
| 3 | RE206 (BU-OG) | 14 | 12C508 |
| 3 | RE206 (BU-OG) | 20 | 9F666 |
| 4 | CE206 (GY-YE) | 14 | 12C508 |
| 4 | CE206 (GY-YE) | 20 | 9F666 |
| 5 | RE207 (GN-VT) | 14 | 12C508 |
| 5 | RE207 (GN-VT) | 20 | 9F666 |
| 6 | CE207 (VT-GY) | 14 | 12C508 |
| 6 | CE207 (VT-GY) | 20 | 9F666 |
| 7 | RE208 (BU) | 14 | 12C508 |
| 7 | RE208 (BU) | 18 | 9F666 |
| 8 | CE208 (YE-OG) | 14 | 12C508 |
| 8 | CE208 (YE-OG) | 20 | 9F666 |
