High Current Battery Junction Box (BJB) Connector End View (C1617B)

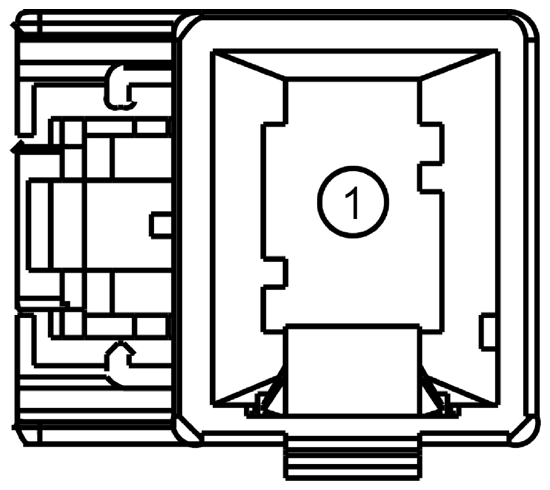

Fig 1: Identifying High Current Battery Junction Box Connector (C1617B)
G09266541Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Circuit Function Qualifier
1 SBF06 (GN-RD) 10.0 FUSE - 6 1.6L/2.5L
