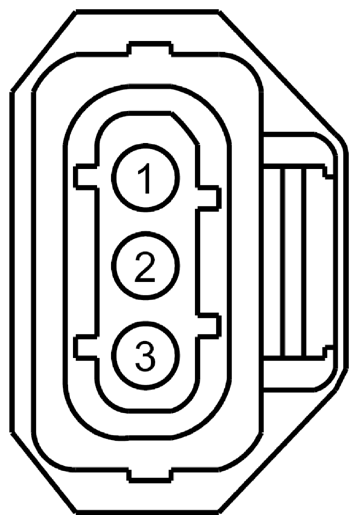

Fuel Rail Pressure (FRP) Sensor Connector End View (C1073)

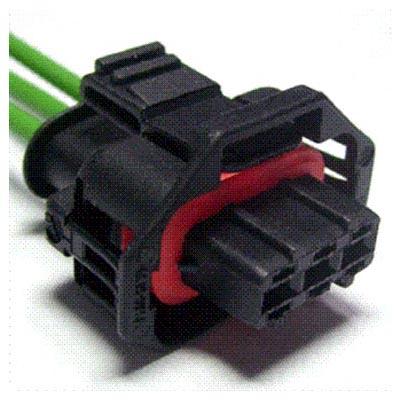

Fig 1: Identifying Fuel Rail Pressure Sensor Connector (C1073)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RE238 (BU-BN)	20	SIGNAL RETURN (SIGRTN)	1.6L
1	RE454 (YE-GN)	20	SIGNAL RETURN (SIGRTN)
2	LE238 (GY)	20	FUEL RAIL PRESSURE (FRP)
3	LE423 (GN)	20	REFERENCE VOLTAGE (VREF)
3	LE423 (GN-VT)	20	REFERENCE VOLTAGE (VREF)	2.0L

Available Pigtail Kits
Pigtail Kit Part Number WPT-1099	Service Part Number: AU2Z-14S411-BBA  Gauge: 14  Pin material: Silver  Cavities: 3  Vehicle Uses Fuel Injector Pump - Fuel Injection Sensor - Manifold Absolute Pressure (MAP) Solenoid - Fuel Volume Regulator Control
