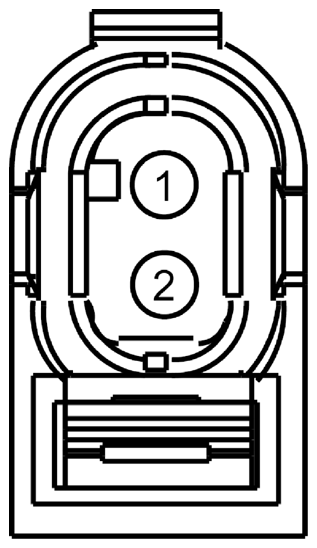

Fuel Injector 4 Connector End View (C1144)

Fig 1: Identifying Fuel Injector 4 Connector (C1144)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CE208 (YE-OG)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ) +	1.5L
2	RE208 (BU)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ) -	1.5L

Available Pigtail Kits
Pigtail Kit Part Number WPT-1371	Service Part Number: DU2Z-14S411-ANA  Gauge: 18  Pin material: Silver  Cavities: 2  Vehicle Uses Fuel Injector
