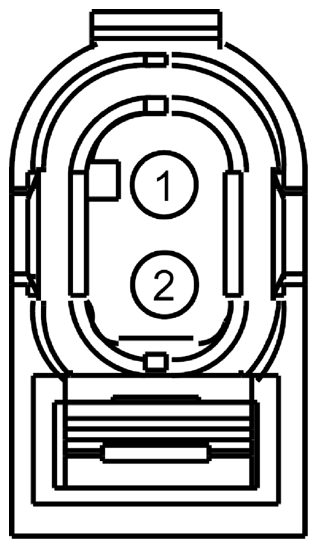

Fuel Injector 3 Connector End View (C1143)

Fig 1: Identifying Fuel Injector 3 Connector (C1143)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CE207 (VT-GY)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) +	1.5L
2	RE207 (GN-VT)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) -	1.5L

Available Pigtail Kits
Pigtail Kit Part Number WPT-1371	Service Part Number: DU2Z-14S411-ANA  Gauge: 18  Pin material: Silver  Cavities: 2  Vehicle Uses Fuel Injector
