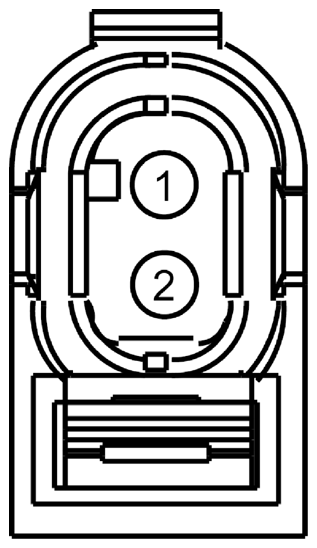

Fuel Injector 2 Connector End View (C1142)

Fig 1: Identifying Fuel Injector 2 Connector (C1142)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CE206 (GY-YE)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) +	1.5L
2	RE206 (BU-OG)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) -	1.5L

Available Pigtail Kits
Pigtail Kit Part Number WPT-1371	Service Part Number: DU2Z-14S411-ANA  Gauge: 18  Pin material: Silver  Cavities: 2  Vehicle Uses Fuel Injector
