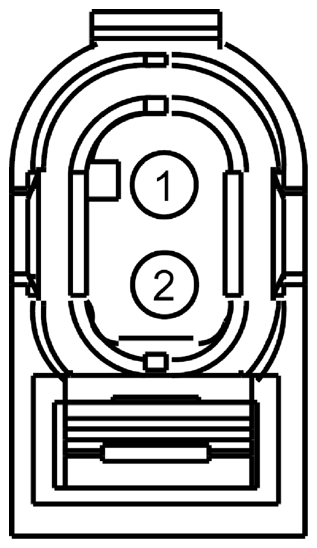

Fuel Injector 1 Connector End View (C1141)

Fig 1: Identifying Fuel Injector 1 Connector (C1141)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CE205 (GN-BU)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) +	1.5L
2	RE205 (YE-BU)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) -	1.5L

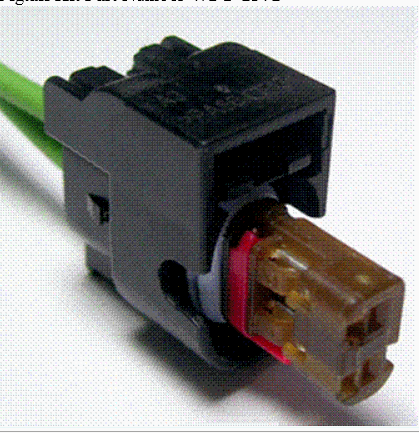

Available Pigtail Kits
Pigtail Kit Part Number WPT-1371	Service Part Number: DU2Z-14S411-ANA  Gauge: 18  Pin material: Silver  Cavities: 2  Vehicle Uses Fuel Injector
