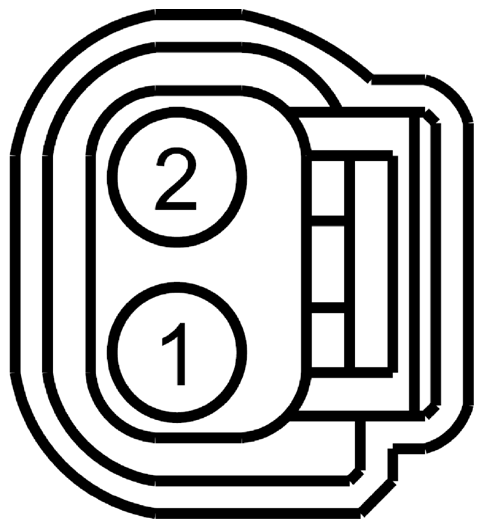

Evaporative Emission (EVAP) Purge Valve Connector End View (C1029)

Fig 1: Identifying Evaporative Emission Purge Valve Connector (C1029)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CE113 (WH-BN)	20	CTRL MOD. - POWERTRAIN # EVAP PURGE VALVE (EVAPCP)
1	CE113 (WH-BN)	18	CTRL MOD. - POWERTRAIN # EVAP PURGE VALVE (EVAPCP)
2	CBK02 (GN)	18	FUSE - 2 OR CIRCUIT BREAKER (VPWR 2)
2	CBK02 (GN)	20	FUSE - 2 OR CIRCUIT BREAKER (VPWR 2)

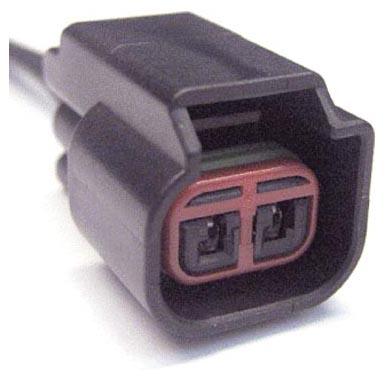

Available Pigtail Kits
Pigtail Kit Part Number WPT-905	Service Part Number: 8U2Z-14S411-EA  Gauge: 16  Pin material: Tin  Cavities: 2  Vehicle Uses Relay - Daytime Running Lamp (DRL) Switch - Heater/A/C Blower (Front)
