Crankshaft Position (CKP) Sensor Connector End View (C1339)

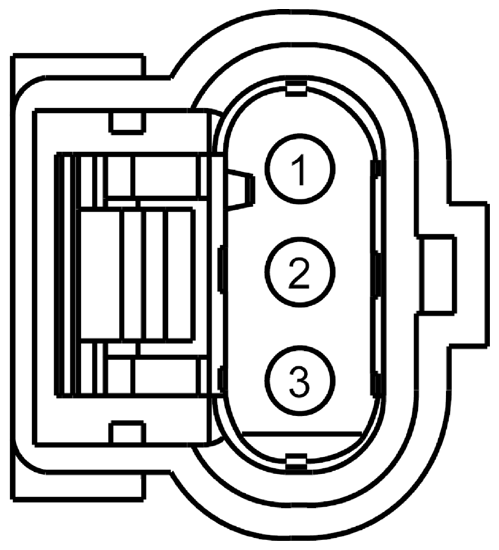

Fig 1: Identifying Crankshaft Position Sensor Connector (C1339)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	LE423 (GN-VT)	20	REFERENCE VOLTAGE (VREF)
2	VE711 (YE-VT)	20	SENSOR - CRANKSHAFT POSITION (CKP)
3	RE405 (GN-WH)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN)

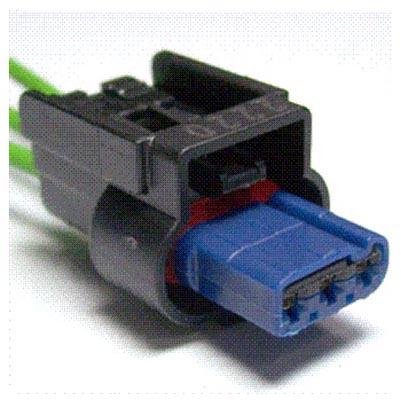

Available Pigtail Kits
Pigtail Kit Part Number WPT-1202	Service Part Number: BU2Z-14S411-ARA  Gauge: 16  Pin material: Silver  Cavities: 3  Vehicle Uses Actuator - Turbocharger Waste Gate Coil - Ignition Sensor - Cam Shaft Position Sensor - Crank Shaft Position
