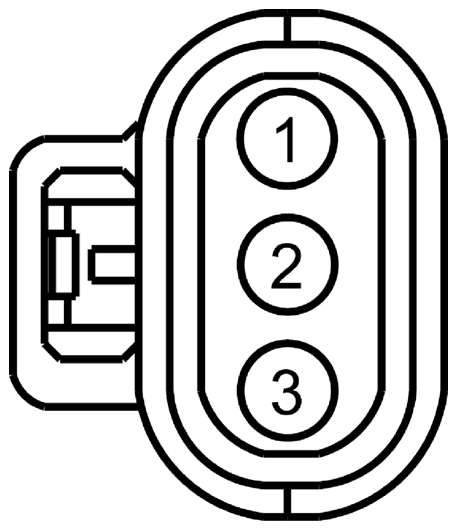

Crankshaft Position (CKP) Sensor Connector End View (C1120)

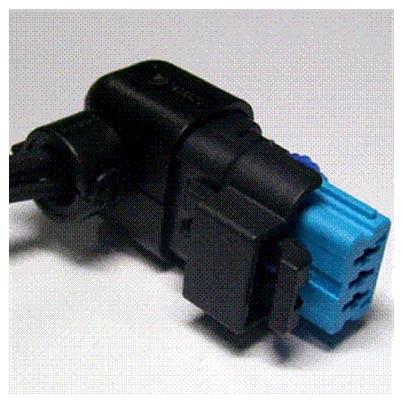

Fig 1: Identifying Crankshaft Position Sensor Connector (C1120)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	LE423 (GN)	20	REFERENCE VOLTAGE (VREF)	1.5L/1.6L
2	RE405 (GN-WH)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN)	1.5L/1.6L
3	VE711 (YE-VT)	20	SENSOR - CRANKSHAFT POSITION (CKPP) +	1.5L/1.6L

Available Pigtail Kits
Pigtail Kit Part Number WPT-1345	Service Part Number: DU2Z-14S411-LA  Gauge: 18  Pin material: Tin (greased)  Cavities: 3  Vehicle Uses Sensor - Crank Shaft Position
