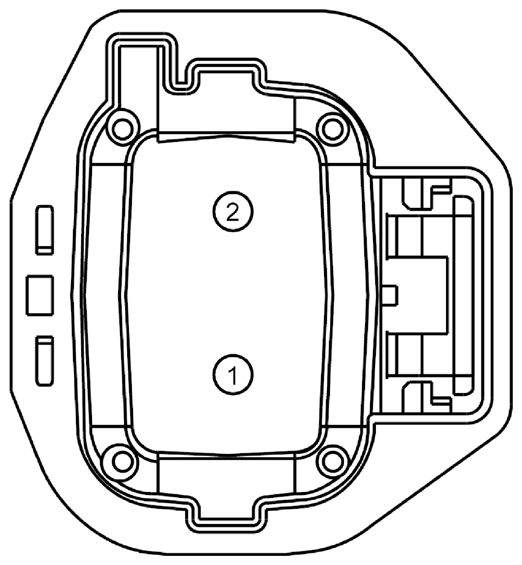

Cooling Fan Motor 2 Connector End View (C1077)

Fig 1: Identifying Cooling Fan Motor 2 Connector (C1077)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CEC07 (BN)	12	RELAY - ENGINE COOLING FAN HIGH SPEED (FANPWR)
2	GD122 (BK)	12	GROUND - FENDER FRONT LEFT # 3RD POINT
