Cooling Fan Motor 1 Connector End View (C1074)

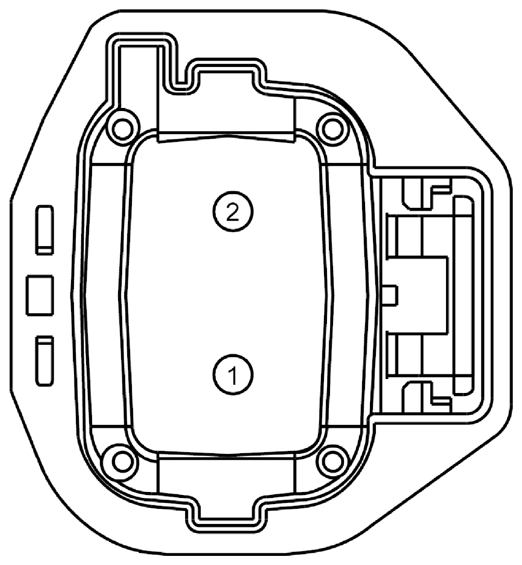

Fig 1: Identifying Cooling Fan Motor 1 Connector (C1074)
G09266378Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Circuit Function Qualifier
1 CEC05 (VT-GY) 12 RELAY - ENGINE COOLING FAN (FANPWR)
2 CEC06 (YE-OG) 12 RELAY - ENGINE COOLING FAN (FC)
