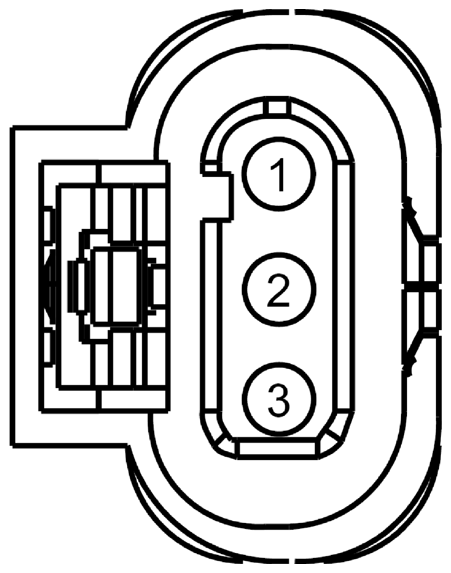

Coil On Plug (Cop) 2 Connector End View (C1602)

Fig 1: Identifying Coil On Plug 2 Connector (C1602)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CE304 (YE-BU)	18	CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 2 (COP2D)
2	GD108 (BK-VT)	16	GROUND - CHASSIS/BATTERY
3	CBK04 (VT)	16	FUSE - 4 OR CIRCUIT BREAKER (VPWR)

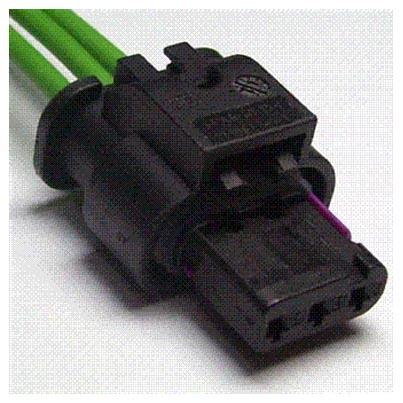

Available Pigtail Kits
Pigtail Kit Part Number WPT-1287	Service Part Number: CU2Z-14S411-YA  Gauge: 18  Pin material: Silver  Cavities: 3  Vehicle Uses Coil - Ignition Sensor - Front Park Aid (FPA) Sensor - Reverse Park Aide (RPA)
