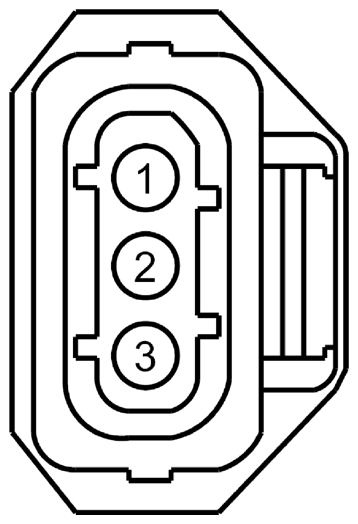

Camshaft Position 12 (CMP12) Sensor Connector End View (C1367)

Fig 1: Identifying Camshaft Position 12 Sensor Connector (C1367)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RE405 (GN-WH)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN)
1	RE429 (GY-OG)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN)	M/T
2	VE707 (GN-VT)	20	SENSOR - CAMSHAFT POSITION BANK 2 IN+EX/IN (CMP12)
3	LE458 (BU-WH)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF)

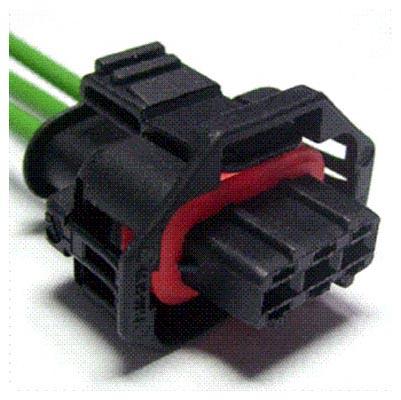

Available Pigtail Kits
Pigtail Kit Part Number WPT-1099	Service Part Number: AU2Z-14S411-BBA  Gauge: 14  Pin material: Silver  Cavities: 3  Vehicle Uses Fuel Injector Pump - Fuel Injection Sensor - Manifold Absolute Pressure (MAP) Solenoid - Fuel Volume Regulator Control
