Battery Connector End View (C1100A)
Battery Connector End View (C1100A)

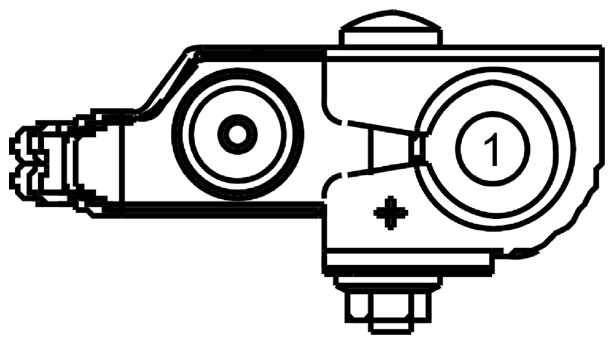

Fig 1: Identifying Battery Connector (C1100A)
Courtesy of FORD MOTOR CO.
Pin
Circuit
Gauge
Circuit Function
Qualifier
1
SDC02 (RD)
4
BATTERY - # PLUS
2.0L/2.5L/3.7L
Courtesy of FORD MOTOR CO.
