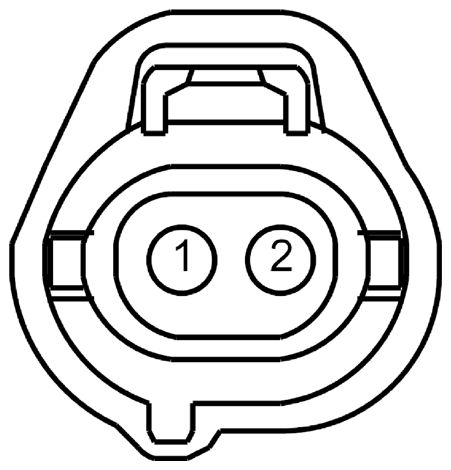

Air Conditioning (A/C) Compressor Control Solenoid Connector End View (C1110)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | VE462 (WH-BN) | 20 | CTRL MOD. - POWERTRAIN # VARIABLE A/C COMPRESSOR VALVE | |
| 2 | CBK03 (GY-YE) | 18 | FUSE - 3 OR CIRCUIT BREAKER (VPWR 3) | 2.5L |
| 2 | CBK03 (GY) | 18 | FUSE - 3 OR CIRCUIT BREAKER (VPWR 3) |

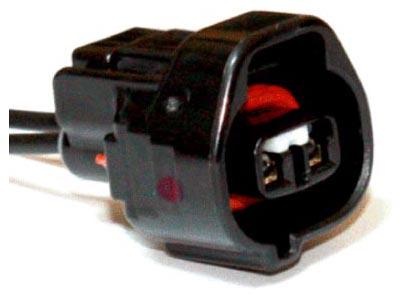

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-869 | Service Part Number: 6U2Z-14S411-DA Gauge: 18 Pin material: Tin Cavities: 2 Vehicle Uses
|
