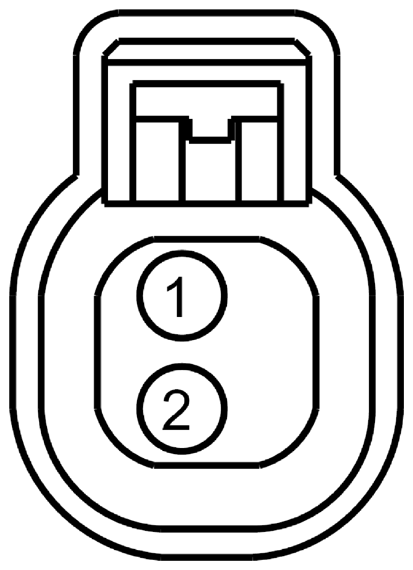

Subwoofer, Right Connector End View (C4069)

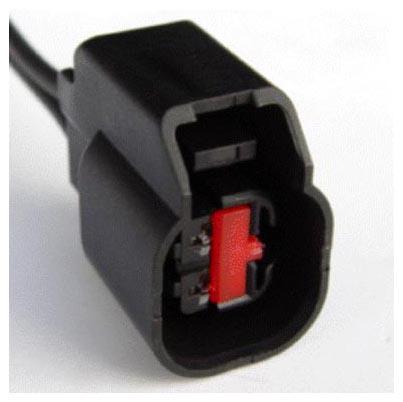

Fig 1: Identifying Subwoofer - Right Connector (C4069)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VME02 (VT)	16	CTRL MOD. - AUDIO # SPEAKER SUBWOOFER RIGHT REAR 1 +
2	RME02 (YE)	16	CTRL MOD. - AUDIO # SPEAKER SUBWOOFER RIGHT REAR 1 -

Available Pigtail Kits

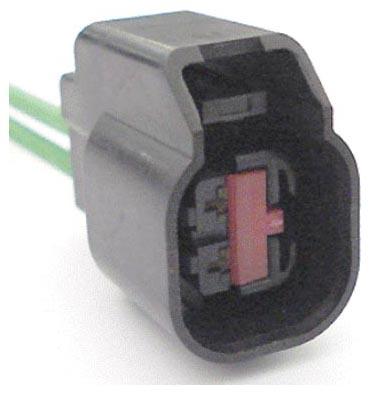

Pigtail Kit Part Number WPT-373	Service Part Number: 3U2Z-14S411-CNA  Gauge: 14  Pin material: Tin  Cavities: 2  Vehicle Uses Actuator - Door Lock - Decklid/Liftgate Actuator - Liftgate Glass Lamp - CHMSL (Center High Mount Stop Lamp) Module - Warning Chime/Beltminder Speaker - Door Speaker - Front Speaker - Rear Speaker - Subwoofer Switch - Brake Deactivation Switch - Brake Pedal Position Switch - Deck Lid/Hatch Release Switch - Stop Lamp
Pigtail Kit Part Number WPT-966	Service Part Number: 3U2Z-14S411-CNB  Gauge: 14  Pin material: Silver  Cavities: 2  Vehicle Uses Actuator - Door Lock - Decklid/Liftgate Actuator - Liftgate Glass Lamp - CHMSL (Center High Mount Stop Lamp) Module - Warning Chime/Beltminder Sensor - Brake Pedal Position Speaker - Door (front) Speaker - Door (rear) Speaker - Front Speaker - Rear Speaker - Subwoofer Switch - Brake Deactivation Switch - Stop Lamp
